Drain Systems
197 & 219 Deck Drains
• Water on the deck drains into the bilge.
• For bilge pump information, read the
Bilge Pump section at the beginning of
this chapter.
• Keep the deck drains free of debris.
249 Drains
• Water on the deck is drained overboard
through the deck drains.
• Keep the deck drains free of debris.
• The entertainment center sink is above
the waterline and is gravity drained
overboard.

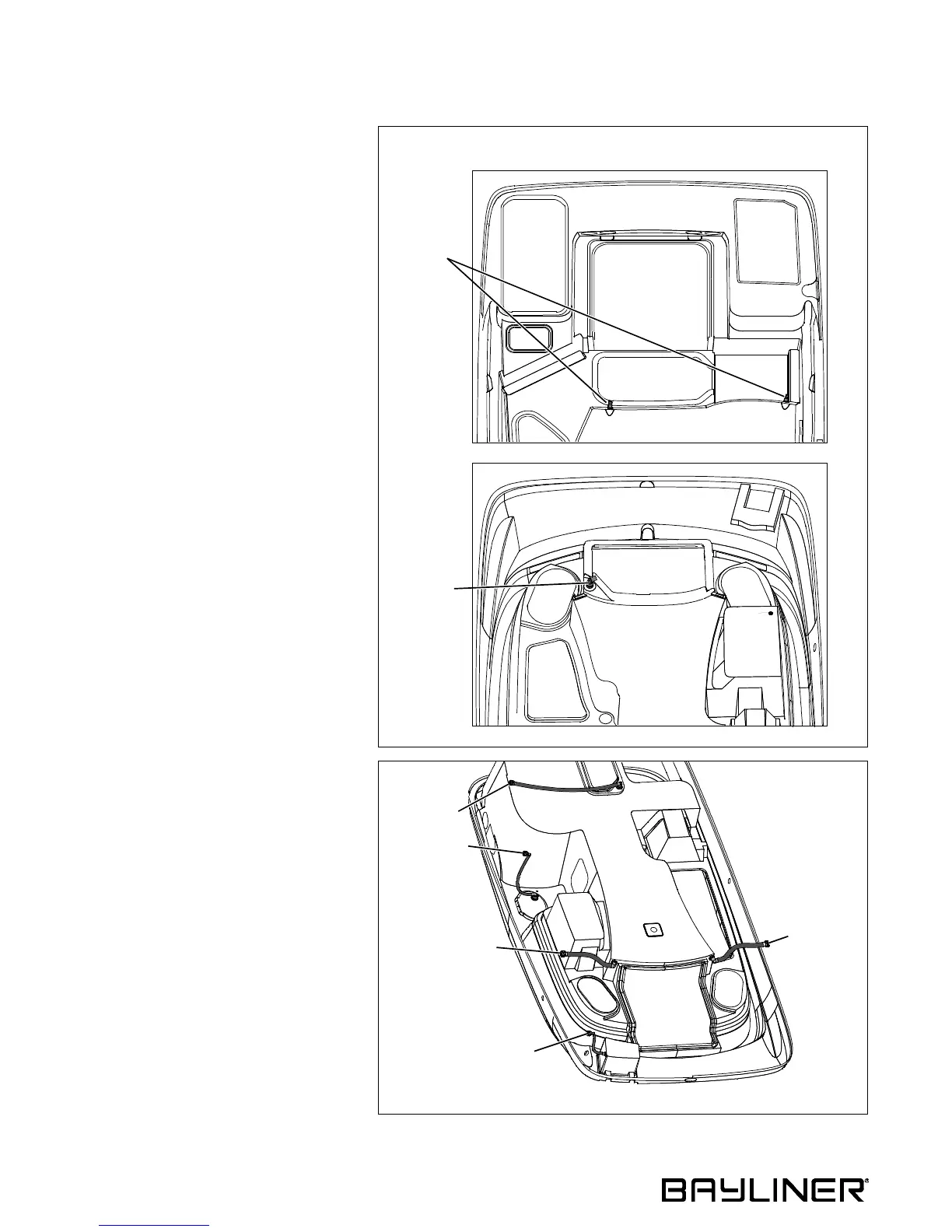

NOTE: VIEWS ARE UNDERSIDE OF DECK
DECK
DRAINS
DECK
197 DECK DRAIN SYSTEM
219 DECK DRAIN SYSTEM
DRAIN
SINK DRAIN
STORAGE BOX DRAIN
NOTE: VIEW IS
DECK DRAIN
DECK DRAIN
DECK DRAIN
UNDERSIDE OF DECK
