Bayliner 305 - Wiring Diagrams

Chapter 12: Electrical System 305 • Owner’s Manual Supplement
70

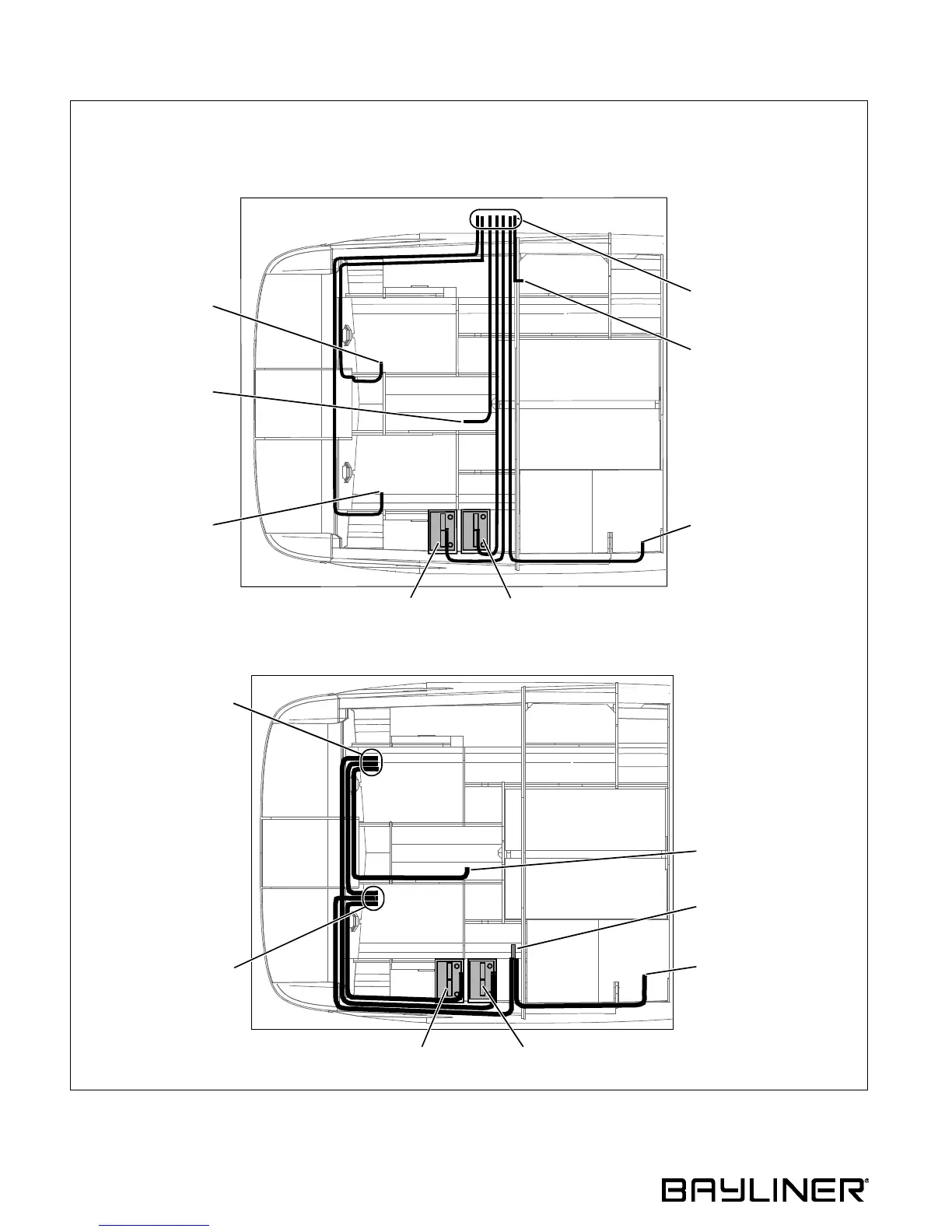

Gas Engines Battery Cable System
BATTERY SWITCHES
PORT ENGINE
STARBOARD
ENGINE
STARBOARD
ENGINE BATTERY
PORT ENGINE
BATTERY
STARBOARD
ENGINE BATTERY
PORT ENGINE
BATTERY
PORT ENGINE
STARBOARD
ENGINE
GENERATOR
(IF EQUIPPED)
GENERATOR
(IF EQUIPPED)
DC PANEL
DC PANEL
BONDING BAR
POSITIVE BATTERY CABLE ROUTING
NEGATIVE BATTERY CABLE ROUTING
POSITIVE BATTERY CABLES ARE RED
NEGATIVE BATTERY CABLES ARE YELLOW
NOTES:
BATTERY CHARGER
