Classic Runabouts • Owner’s Manual
Supplement
Chapter 11: Electrical System
59

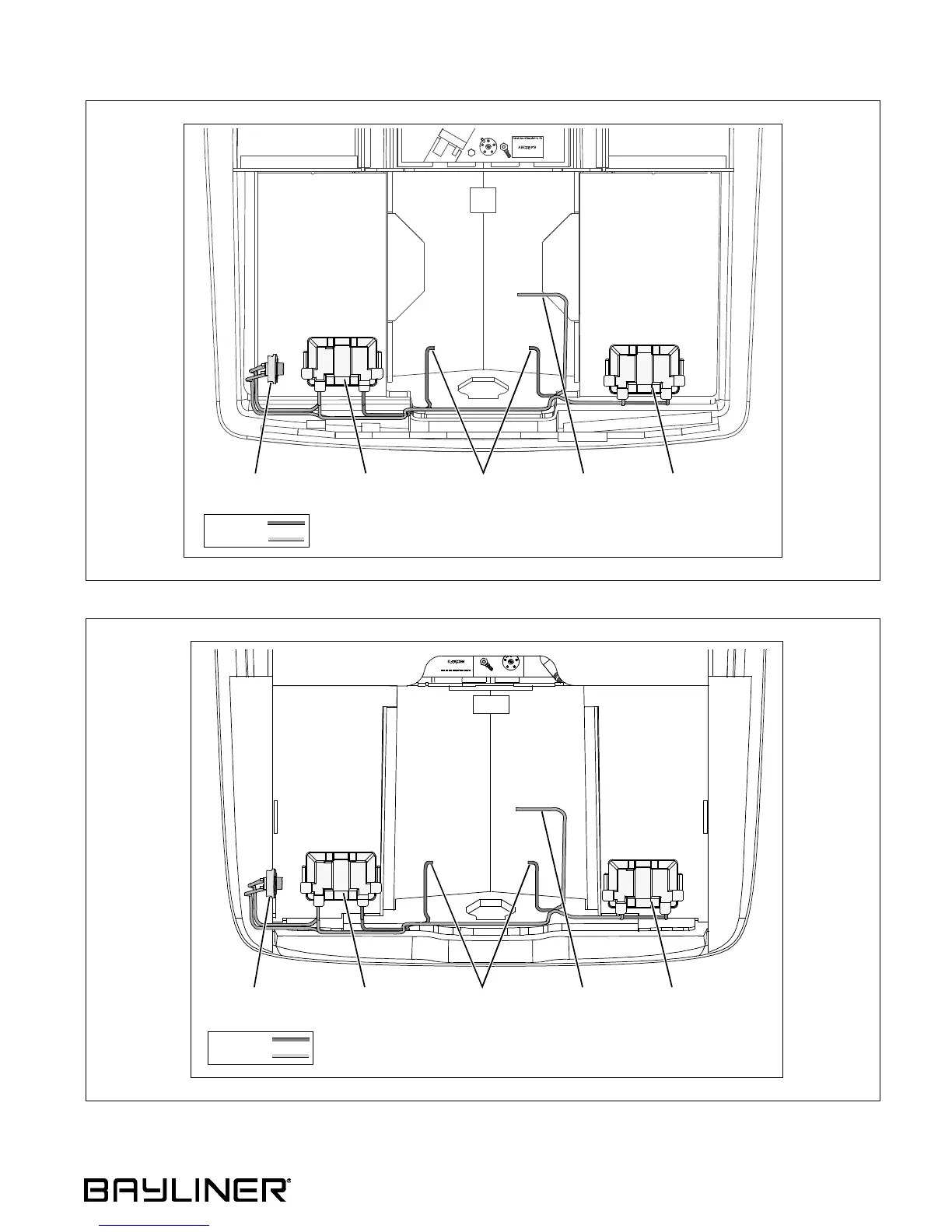

Battery Cable Routings - 192, 194 & 195
Battery Cable Routings - 210 & 215
BATTERYBATTERY SWITCH
(IF EQUIPPED)
NEGATIVE
POSITIVE
TO ENGINETO ENGINE
GROUND
BATTERY
(IF EQUIPPED)
BATTERYBATTERY SWITCH
(IF EQUIPPED)
NEGATIVE
POSITIVE
TO ENGINETO ENGINE
GROUND
BATTERY
(IF EQUIPPED)
