12
BRIDGE
SPEAKER
LCH RCH
+12V
FUSE
REM GND

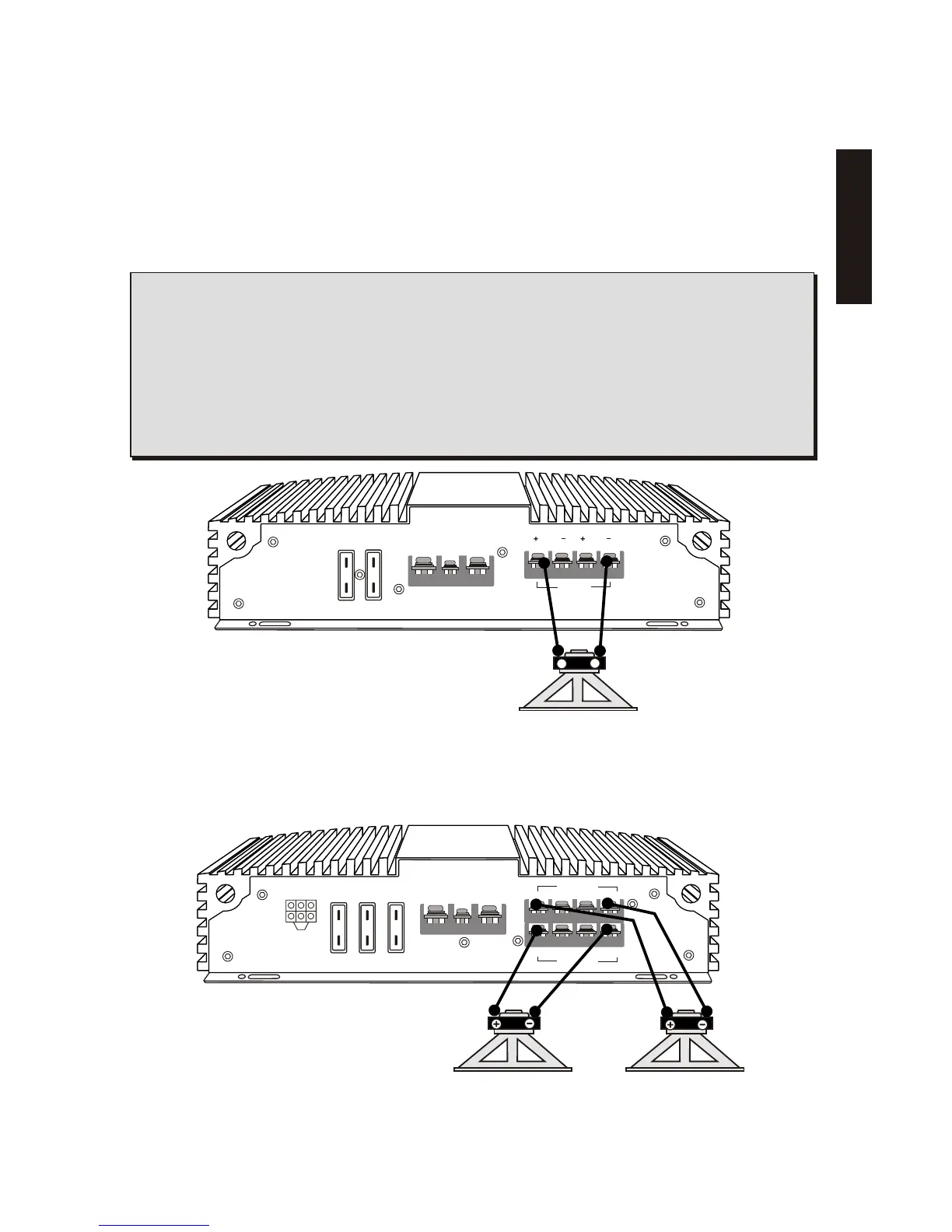

SPEAKER CONNECTIONS (BRIDGED)
The BA amplifiers are capable of being bridged in a mono configuration. This feature allows
you the flexibility of using the amplifier to drive a ** subwoofer or a center channel. In
this configuration the amplifier sums the right and left channel to deliver one channel
(mono) output.
Please note: in order for the amplifier to sum right and left signal information, both right
and left RCA connections must be made.
**CAUTION! In the bridged mode, the amplifier must see the recommended minimum
impedance or higher. Any lower than the recommended minimum impedance will cause the
amplifier to overheat and possibly cause permanent damage to the amplifier!
MINIMUM BRIDGED IMPEDANCE
4 Ohm Mono - BA260, BA2100, BA460
2 Ohm Mono - BA1150, BA1300, BA1500
1 Ohm Mono - BA2150, BA1900D
++
--
BRIDGED
AUX
OUTPUT
AUX
FUSE
FUSE
+
-
+
-
+
-
+
-
FL
RL
RR
FR
BRIDGED
+12V
GND
REM
BA2100, BA2150HC & BA260 BRIDGED SPEAKER CONNECTIONS
BA460 BRIDGED SPEAKER CONNECTIONS
ENGLISH
BA AMPLIFIERS
