Bazooka BA2100 - Page 14

13
BRIDGE
SPEAKER
LCH RCH
+12V
FUSE
REM GND
CAUTION! In Tri- mode operation, the amplifier must see a 2 Ohm load or higher for the stereo
satellites and no lower than 4 Ohms for the subwoofer(s). Any lower than the above mentioned
impedance will cause the amplifier to overheat and possibly cause permanent damage to the
amplifier.

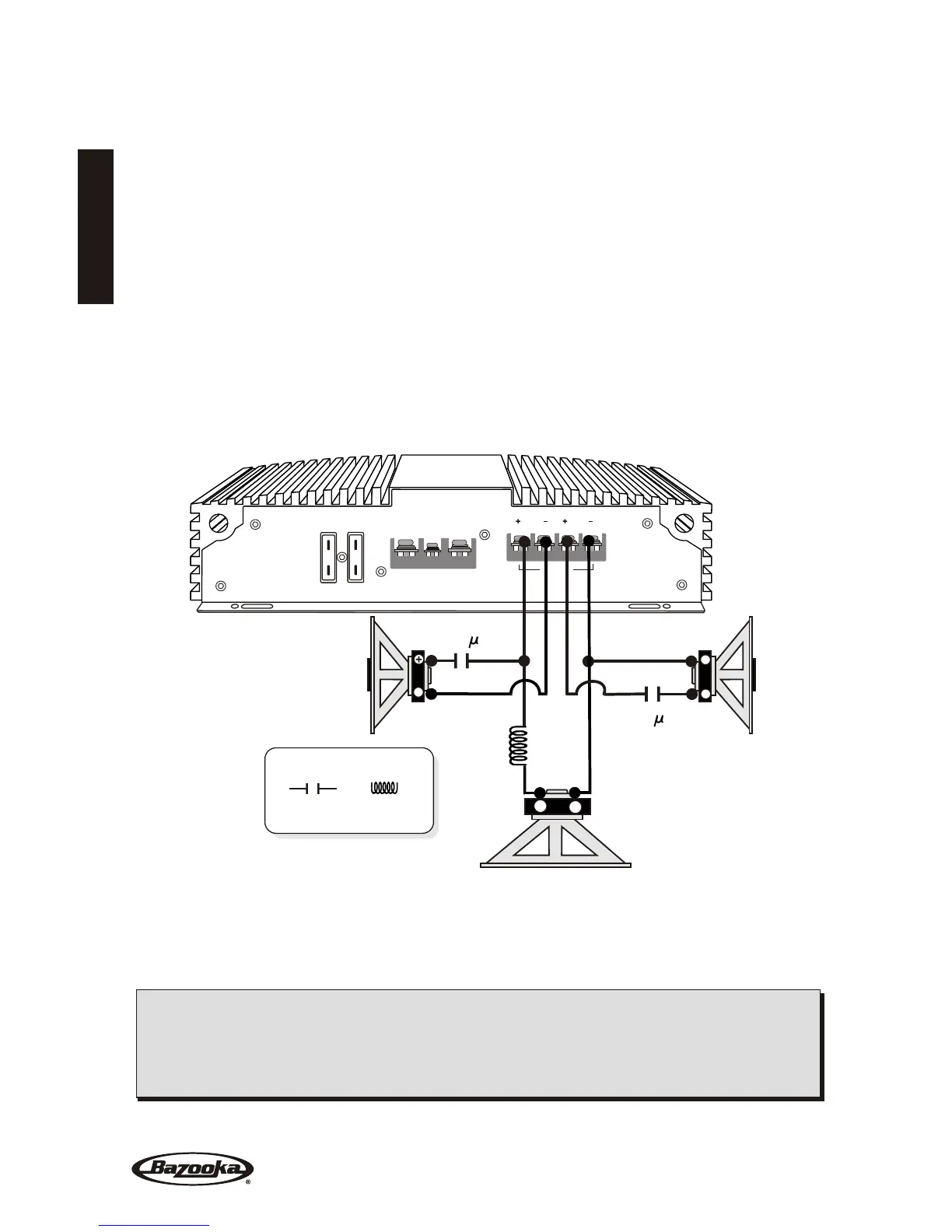

SPEAKER CONNECTIONS (TRI-MODE)
The BA260, BA460, BA2100, BA2150HC, are capable of running in a Mono / Stereo mode. This
feature gives the amplifier the ability to run stereo satellites (midbass & tweeter)
simultaneously with a mono subwoofer.
These connections are more complicated because they require the use of passive
crossover networks (Not provided) to divide the frequencies to the speakers. We have
included a sample diagram for 4 Ohm connections. If you wish to use multiple speakers to
achieve a lower impedance and higher power, it is strongly recommended that you seek
professional advice from your BAZOOKA retailer before attempting to make these
connections.
Please Note: In the Tri-mode configuration, the amplifier’s built-in crossover must be set to
the ”FLAT” position so the speakers receive full range output.
NON-POLAR
CAPACITOR
NON-POLAR
CAPACITOR
INDUCTOR
(COIL)
INDUCTOR
(COIL)
LEGENDLEGEND
FF100100
++
--
FF100100
++
--
--
4 mH4 mH
Left
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Left
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Mono Woofer
8 Ohm
(4 Ohm Minimum)
Mono Woofer
8 Ohm
(4 Ohm Minimum)
Right
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Right
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
ENGLISH
