BTA6250D/8250D/10250D
8250D-DE/10250D-DE

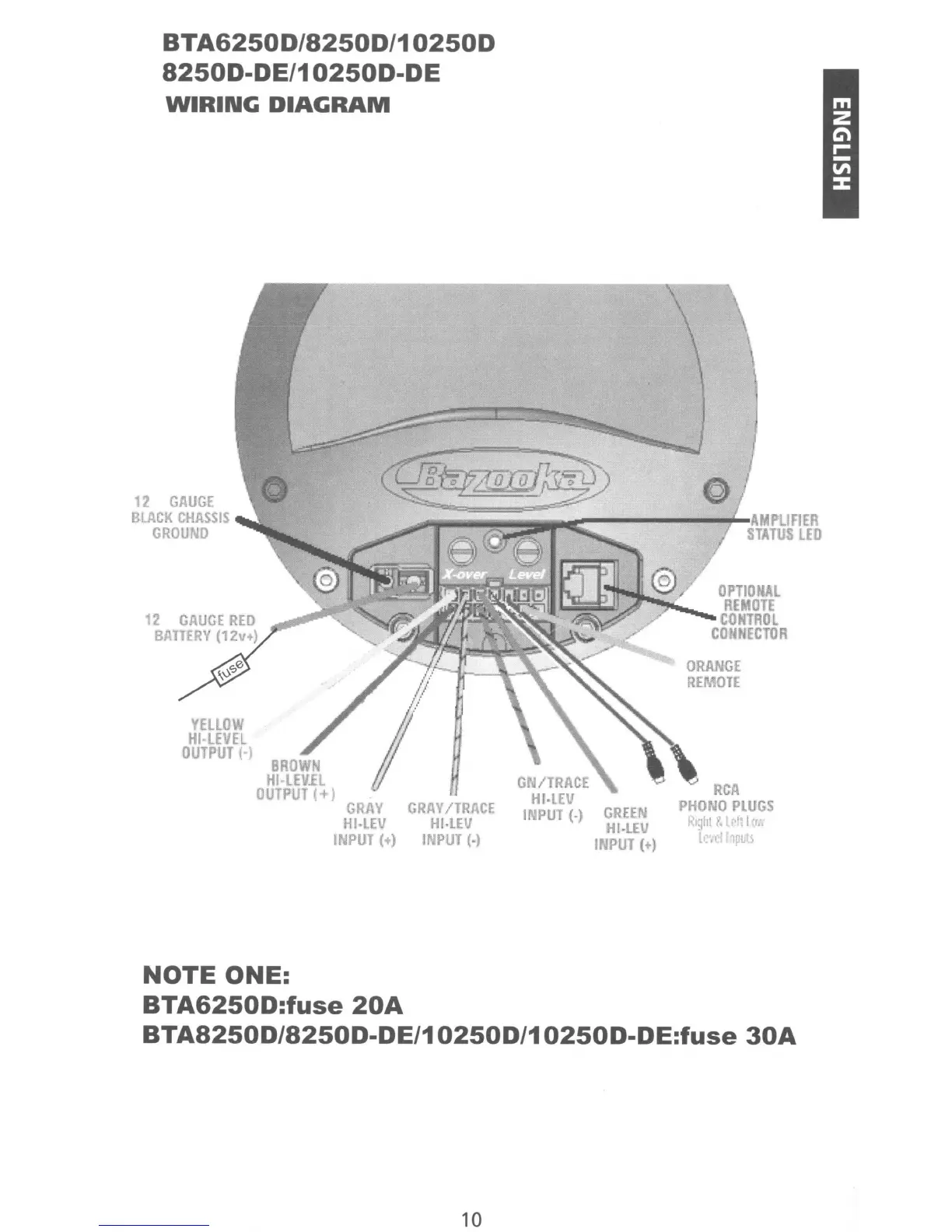

WIRING
DIAGRAM
OTE
ONE:
BTA6250D:fuse
20A
BTA8250D/8250D-DE/1
0250D/1
0250D-DE:fuse
30A
