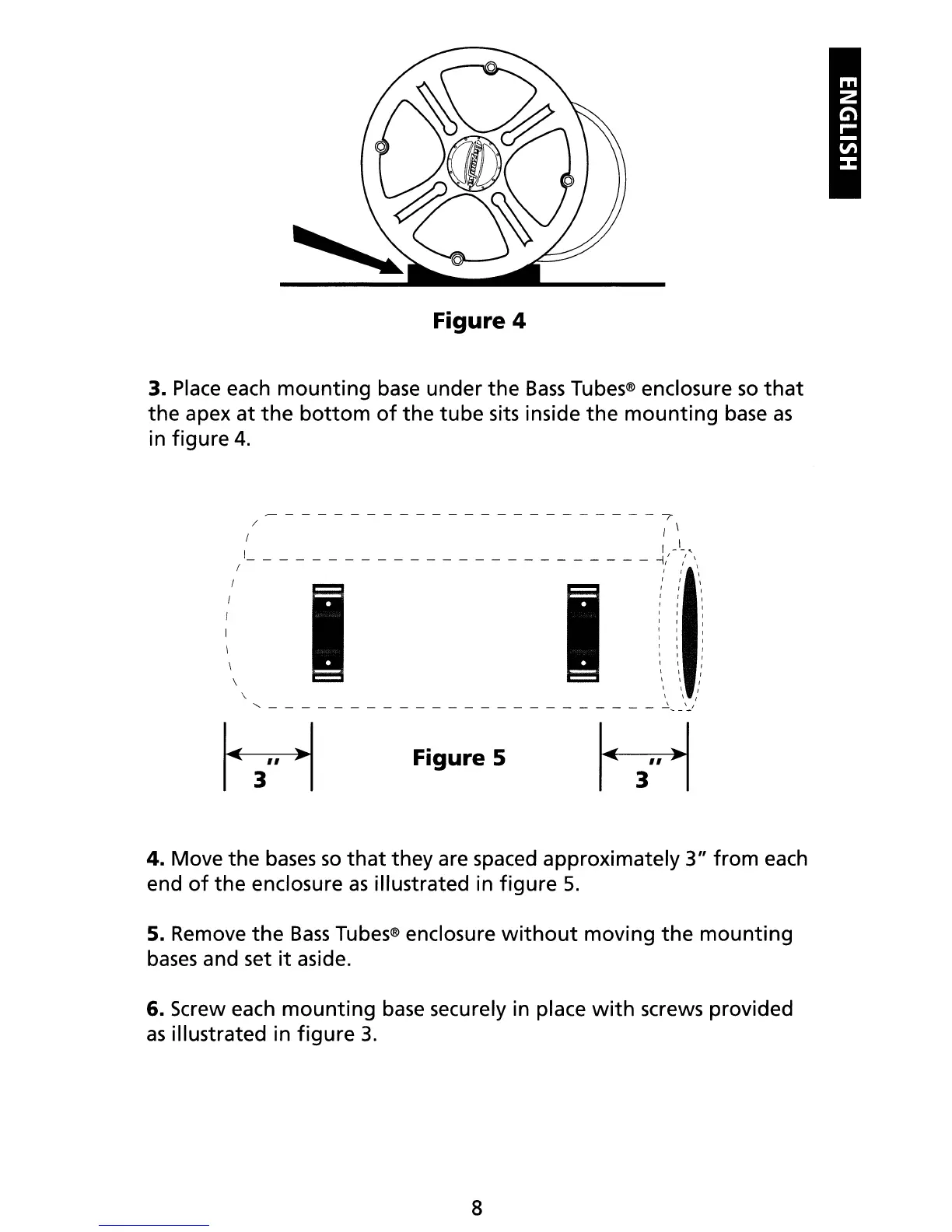

Figure 4
3. Place each mounting base under the Bass Tubes® enclosure so that
the apex at the bottom of the tube sits inside the mounting base as
in figure 4.
------------------------7
/ I \
I I
I I - - ,
- - - - - - - - - - - - - - - - - - - - - - - - - ~I 1\
I " " \
I I f \
I I I
/ r I I
I I I
I j I I
I I I
I I I I
I I ,
t I , I
I I ,
\ I \ I
I I I
\
~ I I
I I I
\ \ \ I
, - - - - - - - - - - - - - - - - - - - - - - - - ~~_~I
Figure 5
4. Move the bases so that they are spaced approximately 3" from each
end of the enclosure as illustrated in figure 5.
5. Remove the Bass Tubes® enclosure without moving the mounting
bases and set it aside.
6. Screw each mounting base securely in place with screws provided
as illustrated in figure 3.
8
