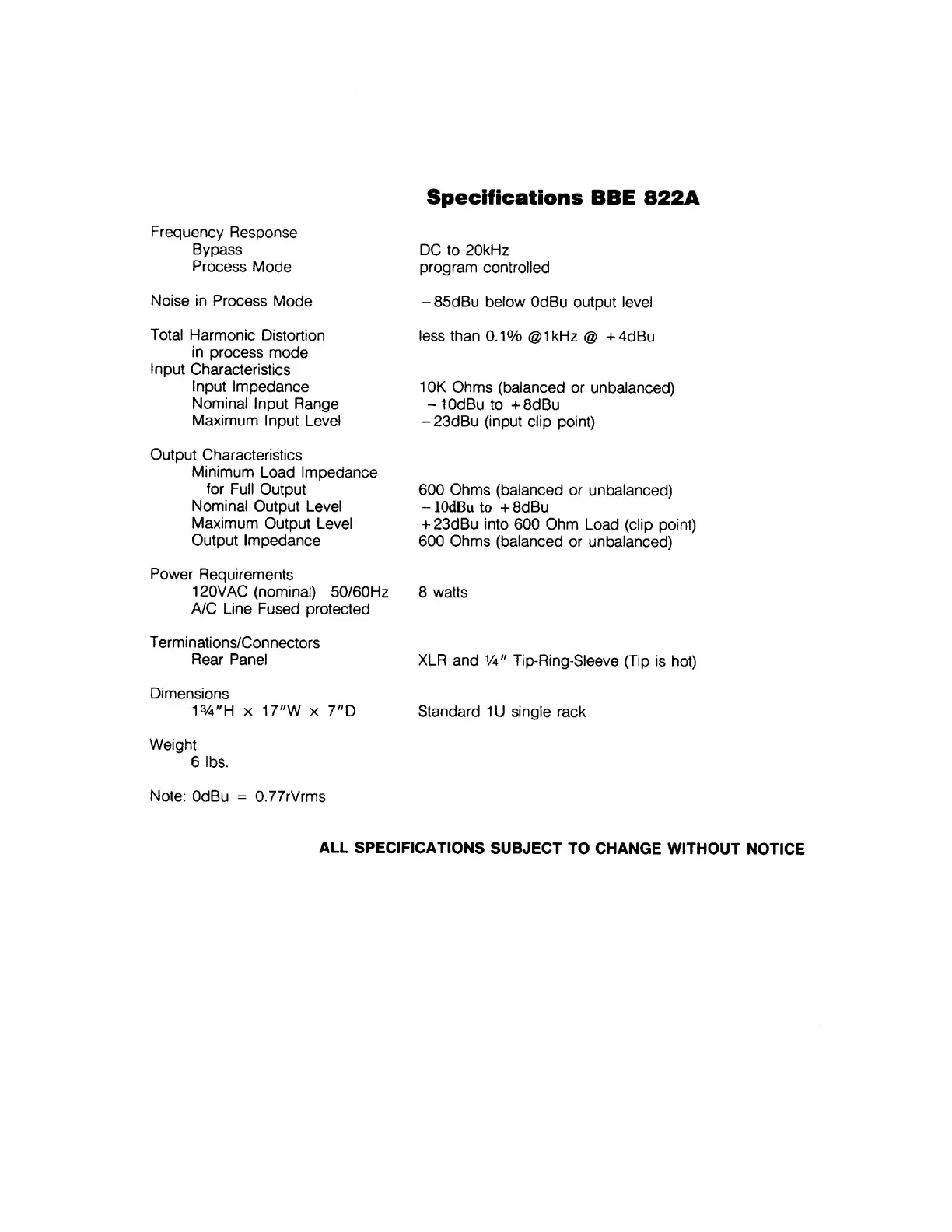

Specifications BBE 822A
Frequency Response
Bypass
Process Mode
Noise in Process Mode
Total Harmonic Distortion
in process mode
Input Characteristics
Input Impedance
Nominal Input Range
Maximum Input Level
Output Characteristics
Minimum Load Impedance
for Full Output
Nominal Output Level
Maximum Output Level
Output Impedance
Power Requirements
120VAC (nominal) 50/60Hz
A/C Line Fused protected
T erminations/Connectors
Rear Panel
Dimensions
13/4"H X 17"W X 7"D
Weight
6 lbs.
DC to 20kHz
program controlled
- 85dBu below OdBu output level
less than 0.1% @1kHz @ +4dBu
10 K Ohms (balanced or unbalanced)
- lOdBu to +8dBu
-23dBu (input clip point)
600 Ohms (balanced or unbalanced)
- lOdBu to + 8dBu
+ 23dBu into 600 Ohm Load (clip point)
600 Ohms (balanced or unbalanced)
8 watts
XLR and Va” Tip-Ring-Sleeve (Tip is hot)
Standard 1U single rack
Note: OdBu = 0.77rVrms
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
