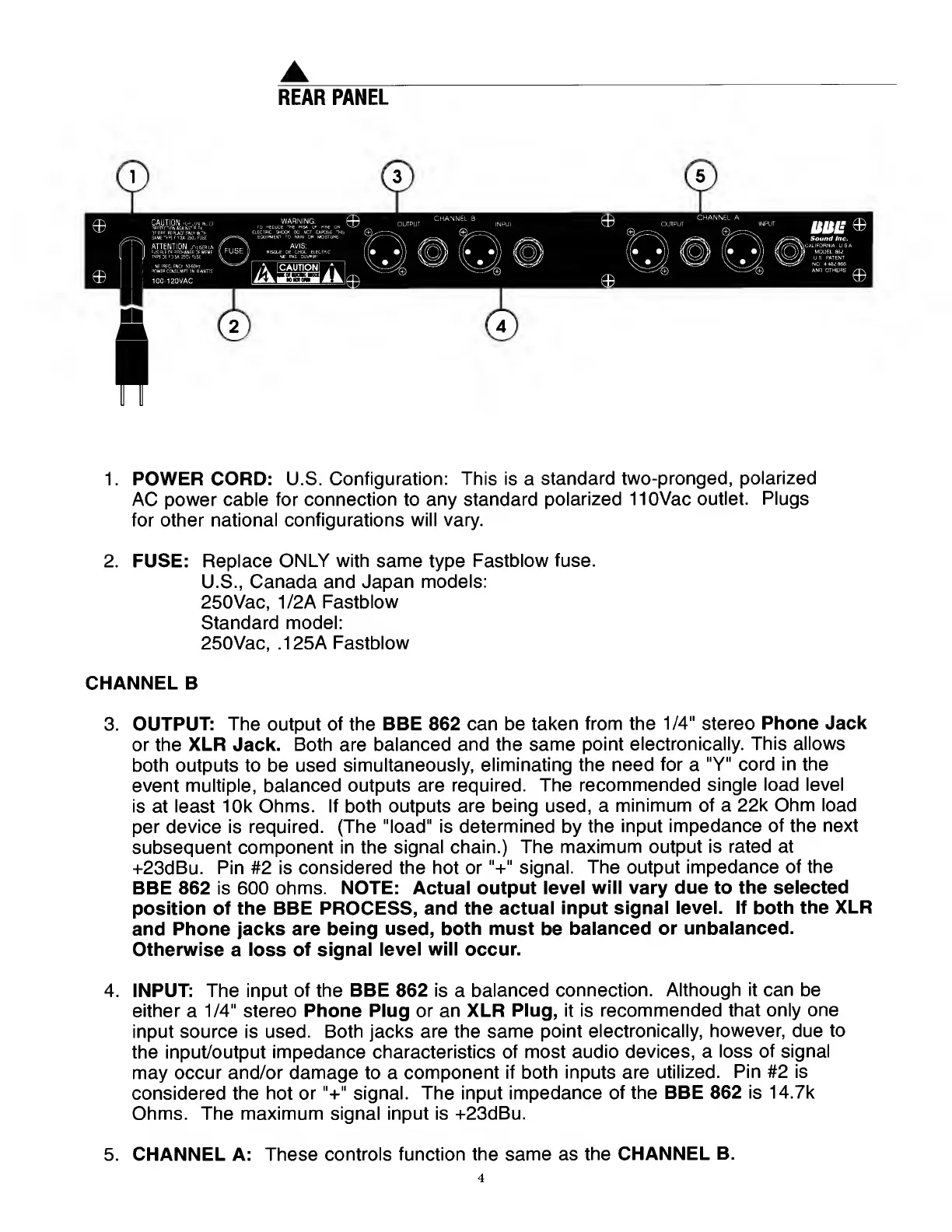

REAR PANEL
1. POWER CORD: U.S. Configuration: This is a standard two-pronged, polarized
AC power cable for connection to any standard polarized 110Vac outlet. Plugs
for other national configurations will vary.
2. FUSE: Replace ONLY with same type Fastblow fuse.
U.S., Canada and Japan models:
250Vac, 1/2A Fastblow
Standard model:
250Vac, .125A Fastblow
CHANNEL B
3. OUTPUT: The output of the BBE 862 can be taken from the 1/4" stereo Phone Jack
or the XLR Jack. Both are balanced and the same point electronically. This allows
both outputs to be used simultaneously, eliminating the need for a "Y" cord in the
event multiple, balanced outputs are required. The recommended single load level
is at least 10k Ohms. If both outputs are being used, a minimum of a 22k Ohm load
per device is required. (The "load" is determined by the input impedance of the next
subsequent component in the signal chain.) The maximum output is rated at
+23dBu. Pin #2 is considered the hot or"+" signal. The output impedance of the
BBE 862 is 600 ohms. NOTE: Actual output level will vary due to the selected
position of the BBE PROCESS, and the actuai input signal level. If both the XLR
and Phone jacks are being used, both must be balanced or unbalanced.
Otherwise a loss of signal level will occur.
4. INPUT: The input of the BBE 862 is a balanced connection. Although it can be
either a 1/4" stereo Phone Plug or an XLR Plug, it is recommended that only one
input source is used. Both jacks are the same point electronically, however, due to
the input/output impedance characteristics of most audio devices, a loss of signal
may occur and/or damage to a component if both inputs are utilized. Pin #2 is
considered the hot or"+" signal. The input impedance of the BBE 862 is 14.7k
Ohms. The maximum signal input is +23dBu.
5. CHANNEL A: These controls function the same as the CHANNEL B.
