5
1. AC POWER CORD: This is a standard two-pronged AC power cable.
2. FUSE: Replace ONLY with same type Fastblow fuse.
U.S., Canada & Japan models: .5A, 250VAC fast-blow type
All others: .250A
, 250VAC fast-blow type
Footswitch
3. BBE: This jack allows remote in/out switching for the BBE Sonic Maximizer section of the BMAX. Please use
our (optional) FS-BMAX dual footswitch.
4. COMP: This jack allows remote in/out switching for the COMP section of the BMAX. Please use our (optional)
FS-BMAX dual footswitch.
Ground lift
5. GROUND LIFT: In the “up” position, use this switch to disable the ground pin of the XLR connector. This is
a useful feature in eliminating a ground loop between the BMAX and any subsequent component in the
signal chain.
Output
6. DI OUT: This is a transformerless electronically balanced low impedance output. Use this output to feed
long cable runs or microphone level inputs on a mixing console or recorder
7. MAIN OUT
:
This unbalanced output is used to connect the BBE BMAX Pre-amp to the next subsequent
component in the system, i.e. power amplifier.
Effects
8. RETURN: Use this jack to connect the BMAX to an effects processor's output.
9. SEND: Use this jack to connect the BMAX to an effects processor's input. The send jack can also be used as
to feed the input of a guitar tuner.
F
U
S
E
F
U
S
E
F
U
S
E
1
2
3 4 5
6 7 8 9
7
12 in
5
,736,897

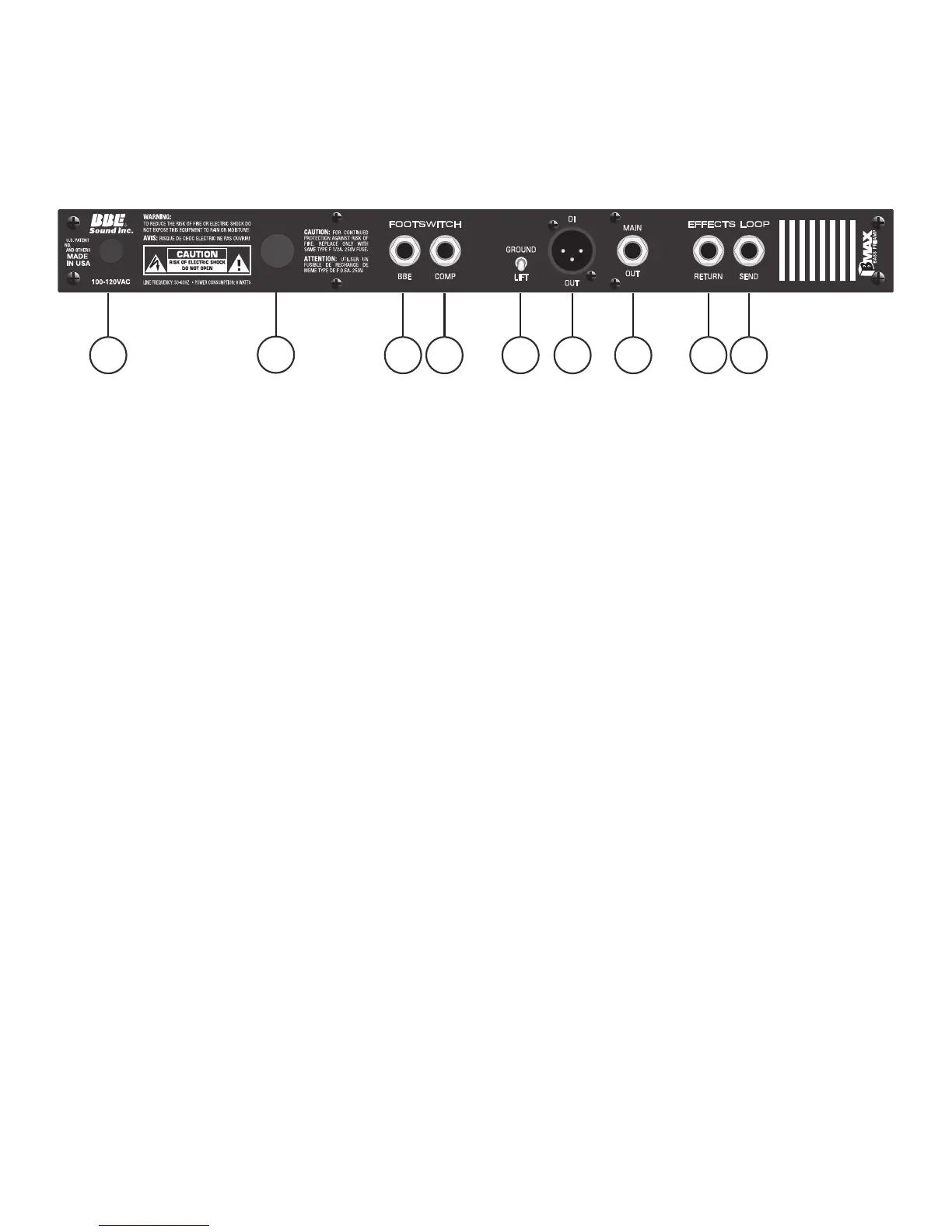

REAR PANEL CONNECTIONS
