PRODUCT ASSEMBLY
Please retain these instructions for future reference.

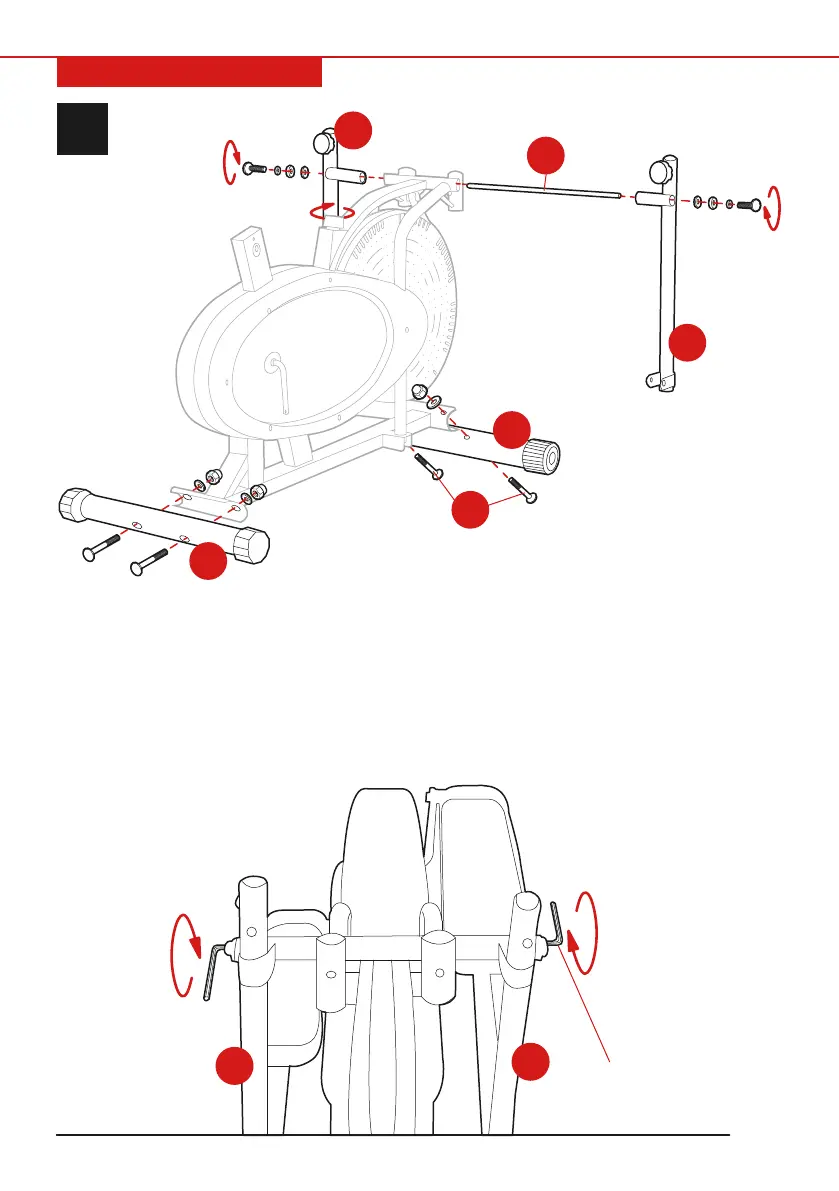

Loosen the tension with the knob on the main frame. Install the part B front bottom tube and part C rear bottom tube
with two part 2 nut, bolt, and washer sets on each side.
NOTE: The front bottom tube has wheels to easily maneuver your elliptical.
Remove the hardware from the part 5 handle bar shaft to insert it through the part D right coupler bar, main frame, and
part E left coupler bar. Replace the hardware in the appropriate places as shown.
NOTE: Use two Allen wrenches to tighten both ends of the handle bar shaft at the same time. Tighten one side clockwise
and the other side counterclockwise.
Pg. 3
D
E
B
C
2
5
D
E
ALLEN
WRENCH
FRONT VIEW
To Next Page
