Page 14
High Amp Toggle Switch Wiring Harness with 40 amp Relay for use with Single or
Dual Electric Fans
Be Cool Part: #75196
Kit Contents for #75196:
• High Amp Toggle Switch with Wires
• Relay, Socket, and Fuse Holder
• Fan Harness
• Wire Sleeve and Shrink Tubing
• Butt and Eyelet Connectors
High Amp Toggle Switch with Wiring for use with Single or Dual Electric Fans
Be Cool Part: #75096
Kit Contents for #75096:
• High Amp Toggle Switch with Wires
• Wire Sleeve
• Eyelet Connectors
See page 16 for installation instructions and pages 17 & 18 for wiring diagrams.
#75096 #75017
#75096
Page 12
DISCONNECT BATTERY before mechanical or electrical installation.
Mount the relay in a dry position on the vehicle. When this is completed, connect the wires as per the diagram.
Blue Wire: Connect the blue wire to the blue wire on the A/C compressor power input with butt connector.
Gray Wire:
Connect the gray wire from the relay to the temperature sending unit using the enclosed eyelet connec-
tor.
Black Wire: Connect the black wire to the eyelet connector and then to the chassis ground.
Page 7
Single
Diagram
For Vehicles
WITHOUT
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75017 w/o Sending Unit
#75021 w/Sending Unit
#75032 w/Sending Unit
#75098 w/Sending Unit
Fuse
Box
Page 9

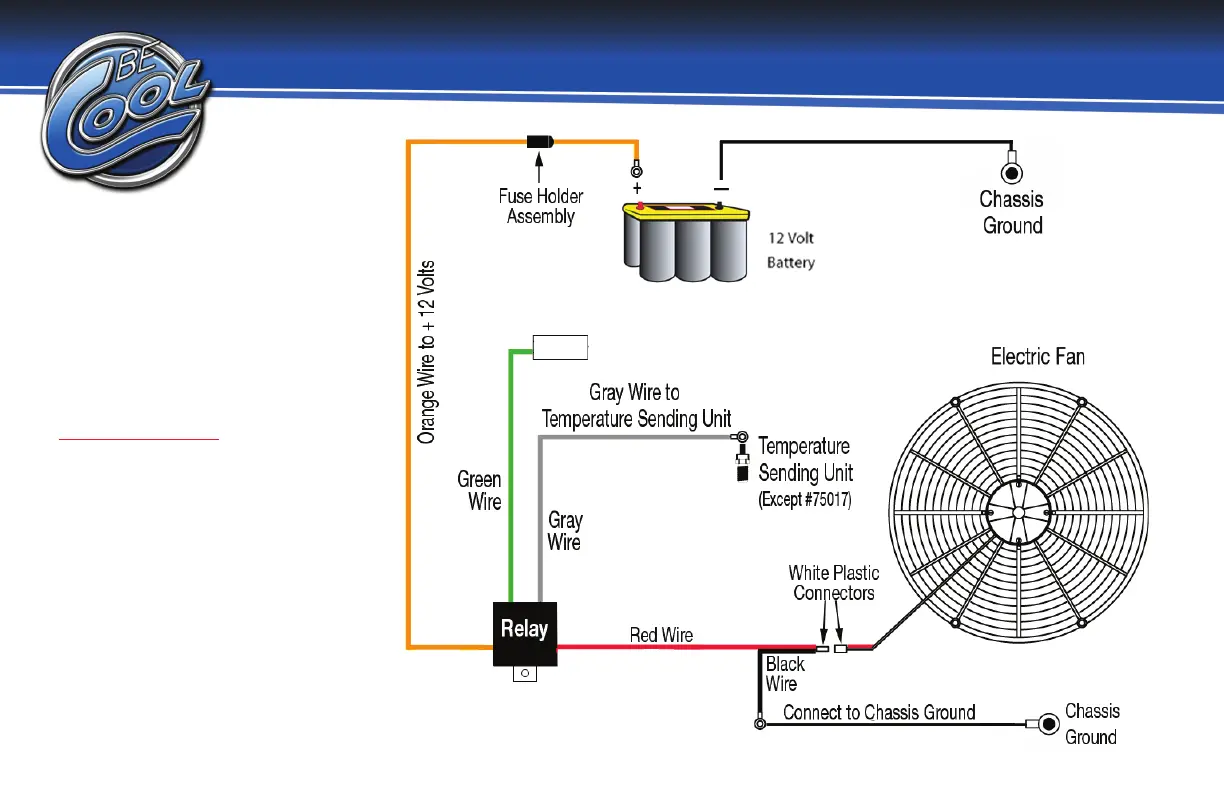

Single Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75017 w/o Sending Unit
#75021 w/Sending Unit
#75032 w/Sending Unit
#75098 w/Sending Unit
With Air Conditioning
Harness Part Number #75095
Fuse
Box
Page 14
High Amp Toggle Switch Wiring Harness with 40 amp Relay for use with Single or
Dual Electric Fans
Be Cool Part: #75196
Kit Contents for #75196:
• High Amp Toggle Switch with Wires
• Relay, Socket, and Fuse Holder
• Fan Harness
• Wire Sleeve and Shrink Tubing
• Butt and Eyelet Connectors
High Amp Toggle Switch with Wiring for use with Single or Dual Electric Fans
Be Cool Part: #75096
Kit Contents for #75096:
• High Amp Toggle Switch with Wires
• Wire Sleeve
• Eyelet Connectors
See page 16 for installation instructions and pages 17 & 18 for wiring diagrams.
#75096 #75017
#75096
Page 12
DISCONNECT BATTERY before mechanical or electrical installation.
Mount the relay in a dry position on the vehicle. When this is completed, connect the wires as per the diagram.
Blue Wire: Connect the blue wire to the blue wire on the A/C compressor power input with butt connector.
Gray Wire:
Connect the gray wire from the relay to the temperature sending unit using the enclosed eyelet connec-
tor.
Black Wire: Connect the black wire to the eyelet connector and then to the chassis ground.
Page 7
Single
Fan Wiring
Diagram
For Vehicles
WITHOUT
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75017 w/o Sending Unit
#75021 w/Sending Unit
#75032 w/Sending Unit
#75098 w/Sending Unit
Fuse
Box
Page 9
Single Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75017 w/o Sending Unit
#75021 w/Sending Unit
#75032 w/Sending Unit
#75098 w/Sending Unit
With Air Conditioning
Harness Part Number #75095
Fuse
Box
Page 14
High Amp Toggle Switch Wiring Harness with 40 amp Relay for use with Single or
Dual Electric Fans
Be Cool Part: #75196
Kit Contents for #75196:
• High Amp Toggle Switch with Wires
• Relay, Socket, and Fuse Holder
• Fan Harness
• Wire Sleeve and Shrink Tubing
• Butt and Eyelet Connectors
High Amp Toggle Switch with Wiring for use with Single or Dual Electric Fans
Be Cool Part: #75096
Kit Contents for #75096:
• High Amp Toggle Switch with Wires
• Wire Sleeve
• Eyelet Connectors
See page 16 for installation instructions and pages 17 & 18 for wiring diagrams.
#75096 #75017
#75096
Page 12
DISCONNECT BATTERY before mechanical or electrical installation.
Mount the relay in a dry position on the vehicle. When this is completed, connect the wires as per the diagram.
Blue Wire: Connect the blue wire to the blue wire on the A/C compressor power input with butt connector.
Gray Wire:
Connect the gray wire from the relay to the temperature sending unit using the enclosed eyelet connec-
tor.
Black Wire: Connect the black wire to the eyelet connector and then to the chassis ground.
Page 7
Single
Fan Wiring
Diagram
For Vehicles
WITHOUT
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75017 w/o Sending Unit
#75021 w/Sending Unit
#75032 w/Sending Unit
#75098 w/Sending Unit
Fuse
Box
Page 9
Single Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75017 w/o Sending Unit
#75021 w/Sending Unit
#75032 w/Sending Unit
#75098 w/Sending Unit
With Air Conditioning
Harness Part Number #75095
Fuse
Box
Page 14
High Amp Toggle Switch Wiring Harness with 40 amp Relay for use with Single or
Dual Electric Fans
Be Cool Part: #75196
Kit Contents for #75196:
• High Amp Toggle Switch with Wires
• Relay, Socket, and Fuse Holder
• Fan Harness
• Wire Sleeve and Shrink Tubing
• Butt and Eyelet Connectors
High Amp Toggle Switch with Wiring for use with Single or Dual Electric Fans
Be Cool Part: #75096
Kit Contents for #75096:
• High Amp Toggle Switch with Wires
• Wire Sleeve
• Eyelet Connectors
See page 16 for installation instructions and pages 17 & 18 for wiring diagrams.
#75096 #75017
#75096
Page 12
DISCONNECT BATTERY before mechanical or electrical installation.
Mount the relay in a dry position on the vehicle. When this is completed, connect the wires as per the diagram.
Blue Wire: Connect the blue wire to the blue wire on the A/C compressor power input with butt connector.
Gray Wire:
Connect the gray wire from the relay to the temperature sending unit using the enclosed eyelet connec-
tor.
Black Wire: Connect the black wire to the eyelet connector and then to the chassis ground.
Page 7
Single
Fan Wiring
Diagram
For Vehicles
WITHOUT
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75017 w/o Sending Unit
#75021 w/Sending Unit
#75032 w/Sending Unit
#75098 w/Sending Unit
Fuse
Box
Page 9
Single Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75017 w/o Sending Unit
#75021 w/Sending Unit
#75032 w/Sending Unit
#75098 w/Sending Unit
With Air Conditioning
Harness Part Number #75095
Fuse
Box
Kit Contents
High Amp Electric Fan Toggle Switch Kits
115304 BeCool Wiring Harness Text.indd 5 1/11/19 11:03 AM
