Page 10
Electric Fan Air Conditioning Wiring Harness Kit with 40 Amp Waterproof Relay
Be Cool Part:
#75095
Kit Contents for #75095:
• Weatherproof Relay and Socket
• Wire Terminated at the Relay
• Butt and Eyelet Connectors
See page 12 for installation instructions and page 13 for a wiring diagram.
Page 13
A/C
Wiring
Harness
Diagram
Wiring Diagram
for Be Cool Kit
Part Number:
#75095
Page 11
Design Intent:
• This kit is designed to operate electrical fan(s) in conjunction with an air conditioning system.
• To prevent damage to the A/C system the electric fan(s) should move air through condenser when the A/C is turned on.
• It is compatible with all vehicles and wiring harnesses. It can be used on a positive or negative ground 12 volt DC vehicle.
• This kit can be used with Be Cool Wiring Harness Kits #75021, #75032, #75098, #75100, #75117, or #75104.
• The wiring harness is protected by many weatherproof components. However, care should be taken to position the de-
vice where it will be as dry as possible and the least exposed to extreme temperatures.
Theory of Operation:
• The relay is actuated by power to the air conditioning compressor.
• When the relay is actuated one set of contacts closes the circuit to bypass the temperature sending unit.
See page 12 for installation instructions and page 13 for wiring diagram.
Page 8

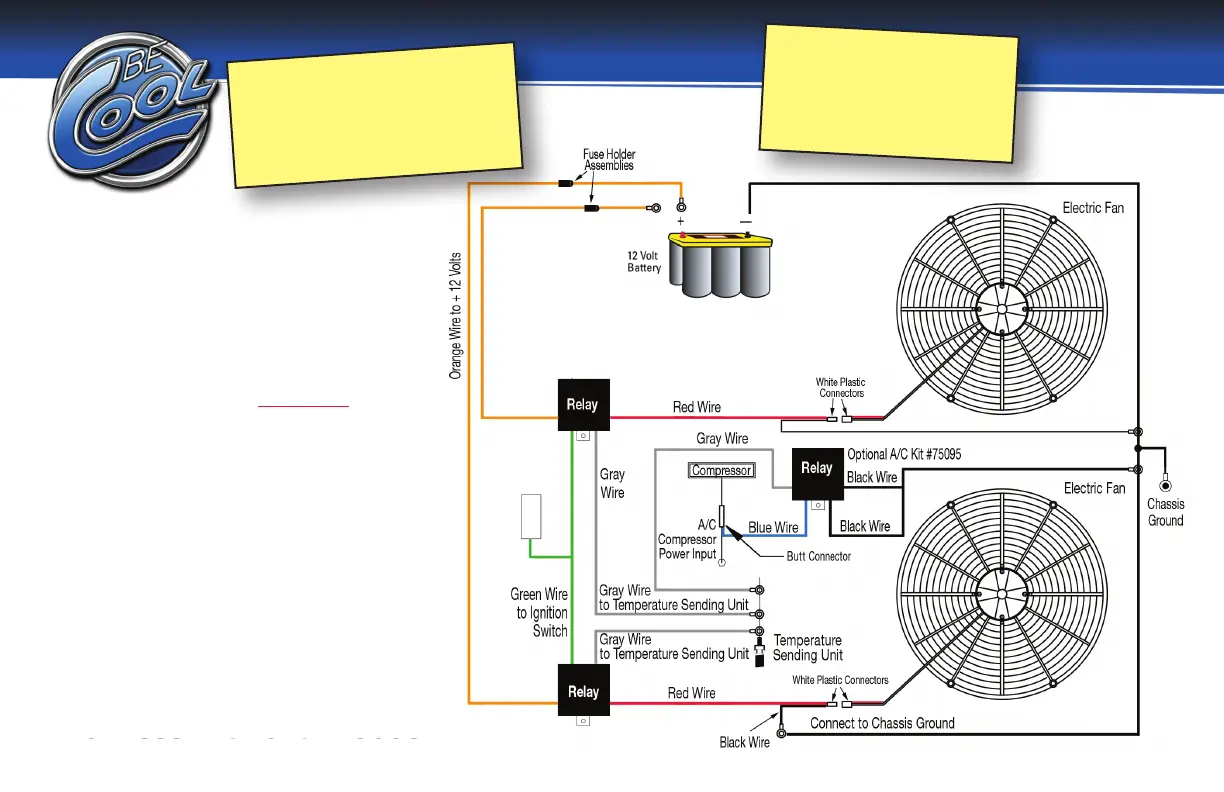

Dual Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75100 w/Sending Unit
#75117 w/Sending Unit
#75104 w/Sending Unit
With A/C Wiring
Harness Kit Part #75095
Fuse
Box
Page 10
Electric Fan Air Conditioning Wiring Harness Kit with 40 Amp Waterproof Relay
Be Cool Part:
#75095
Kit Contents for #75095:
• Weatherproof Relay and Socket
• Wire Terminated at the Relay
• Butt and Eyelet Connectors
See page 12 for installation instructions and page 13 for a wiring diagram.
Page 13
A/C
Wiring
Harness
Diagram
Wiring Diagram
for Be Cool Kit
Part Number:
#75095
Page 11
Design Intent:
• This kit is designed to operate electrical fan(s) in conjunction with an air conditioning system.
• To prevent damage to the A/C system the electric fan(s) should move air through condenser when the A/C is turned on.
• It is compatible with all vehicles and wiring harnesses. It can be used on a positive or negative ground 12 volt DC vehicle.
• This kit can be used with Be Cool Wiring Harness Kits #75021, #75032, #75098, #75100, #75117, or #75104.
• The wiring harness is protected by many weatherproof components. However, care should be taken to position the de-
vice where it will be as dry as possible and the least exposed to extreme temperatures.
Theory of Operation:
• The relay is actuated by power to the air conditioning compressor.
• When the relay is actuated one set of contacts closes the circuit to bypass the temperature sending unit.
See page 12 for installation instructions and page 13 for wiring diagram.
Page 8
Dual Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75100 w/Sending Unit
#75117 w/Sending Unit
#75104 w/Sending Unit
With A/C Wiring
Harness Kit Part #75095
Fuse
Box
Page 10
Electric Fan Air Conditioning Wiring Harness Kit with 40 Amp Waterproof Relay
Be Cool Part:
#75095
Kit Contents for #75095:
• Weatherproof Relay and Socket
• Wire Terminated at the Relay
• Butt and Eyelet Connectors
See page 12 for installation instructions and page 13 for a wiring diagram.
Page 13
A/C
Wiring
Harness
Diagram
Wiring Diagram
for Be Cool Kit
Part Number:
#75095
Page 11
Design Intent:
• This kit is designed to operate electrical fan(s) in conjunction with an air conditioning system.
• To prevent damage to the A/C system the electric fan(s) should move air through condenser when the A/C is turned on.
• It is compatible with all vehicles and wiring harnesses. It can be used on a positive or negative ground 12 volt DC vehicle.
• This kit can be used with Be Cool Wiring Harness Kits #75021, #75032, #75098, #75100, #75117, or #75104.
• The wiring harness is protected by many weatherproof components. However, care should be taken to position the de-
vice where it will be as dry as possible and the least exposed to extreme temperatures.
Theory of Operation:
• The relay is actuated by power to the air conditioning compressor.
• When the relay is actuated one set of contacts closes the circuit to bypass the temperature sending unit.
See page 12 for installation instructions and page 13 for wiring diagram.
Page 8
Dual Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75100 w/Sending Unit
#75117 w/Sending Unit
#75104 w/Sending Unit
With A/C Wiring
Harness Kit Part #75095
Fuse
Box
Page 10
Electric Fan Air Conditioning Wiring Harness Kit with 40 Amp Waterproof Relay
Be Cool Part:
#75095
Kit Contents for #75095:
• Weatherproof Relay and Socket
• Wire Terminated at the Relay
• Butt and Eyelet Connectors
See page 12 for installation instructions and page 13 for a wiring diagram.
Page 13
A/C
Wiring
Harness
Diagram
Wiring Diagram
for Be Cool Kit
Part Number:
#75095
Page 11
Design Intent:
• This kit is designed to operate electrical fan(s) in conjunction with an air conditioning system.
• To prevent damage to the A/C system the electric fan(s) should move air through condenser when the A/C is turned on.
• It is compatible with all vehicles and wiring harnesses. It can be used on a positive or negative ground 12 volt DC vehicle.
• This kit can be used with Be Cool Wiring Harness Kits #75021, #75032, #75098, #75100, #75117, or #75104.
• The wiring harness is protected by many weatherproof components. However, care should be taken to position the de-
vice where it will be as dry as possible and the least exposed to extreme temperatures.
Theory of Operation:
• The relay is actuated by power to the air conditioning compressor.
• When the relay is actuated one set of contacts closes the circuit to bypass the temperature sending unit.
See page 12 for installation instructions and page 13 for wiring diagram.
Page 8
Dual Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75100 w/Sending Unit
#75117 w/Sending Unit
#75104 w/Sending Unit
With A/C Wiring
Harness Kit Part #75095
Page 10
Electric Fan Air Conditioning Wiring Harness Kit with 40 Amp Waterproof Relay
Be Cool Part:
#75095
Kit Contents for #75095:
• Weatherproof Relay and Socket
• Wire Terminated at the Relay
• Butt and Eyelet Connectors
See page 12 for installation instructions and page 13 for a wiring diagram.
Page 13
A/C
Wiring
Harness
Diagram
Wiring Diagram
for Be Cool Kit
Part Number:
#75095
Page 11
Design Intent:
• This kit is designed to operate electrical fan(s) in conjunction with an air conditioning system.
• To prevent damage to the A/C system the electric fan(s) should move air through condenser when the A/C is turned on.
• It is compatible with all vehicles and wiring harnesses. It can be used on a positive or negative ground 12 volt DC vehicle.
• This kit can be used with Be Cool Wiring Harness Kits #75021, #75032, #75098, #75100, #75117, or #75104.
• The wiring harness is protected by many weatherproof components. However, care should be taken to position the de-
vice where it will be as dry as possible and the least exposed to extreme temperatures.
Theory of Operation:
• The relay is actuated by power to the air conditioning compressor.
• When the relay is actuated one set of contacts closes the circuit to bypass the temperature sending unit.
See page 12 for installation instructions and page 13 for wiring diagram.
Page 8
Dual Fan
Wiring
Diagram
For Vehicles WITH
Air Conditioning
Wiring Diagram
for Be Cool Kit
Part Numbers:
#75100 w/Sending Unit
#75117 w/Sending Unit
#75104 w/Sending Unit
With A/C Wiring
Harness Kit Part #75095
Fuse
Box
Vehicles originally equipped
with (factory air-conditioning)
use Be Cool air conditioning
harness 75095
Vehicles with (aftermarket
air-conditioning) contact
Manufacture for proper
recommendation.
