10

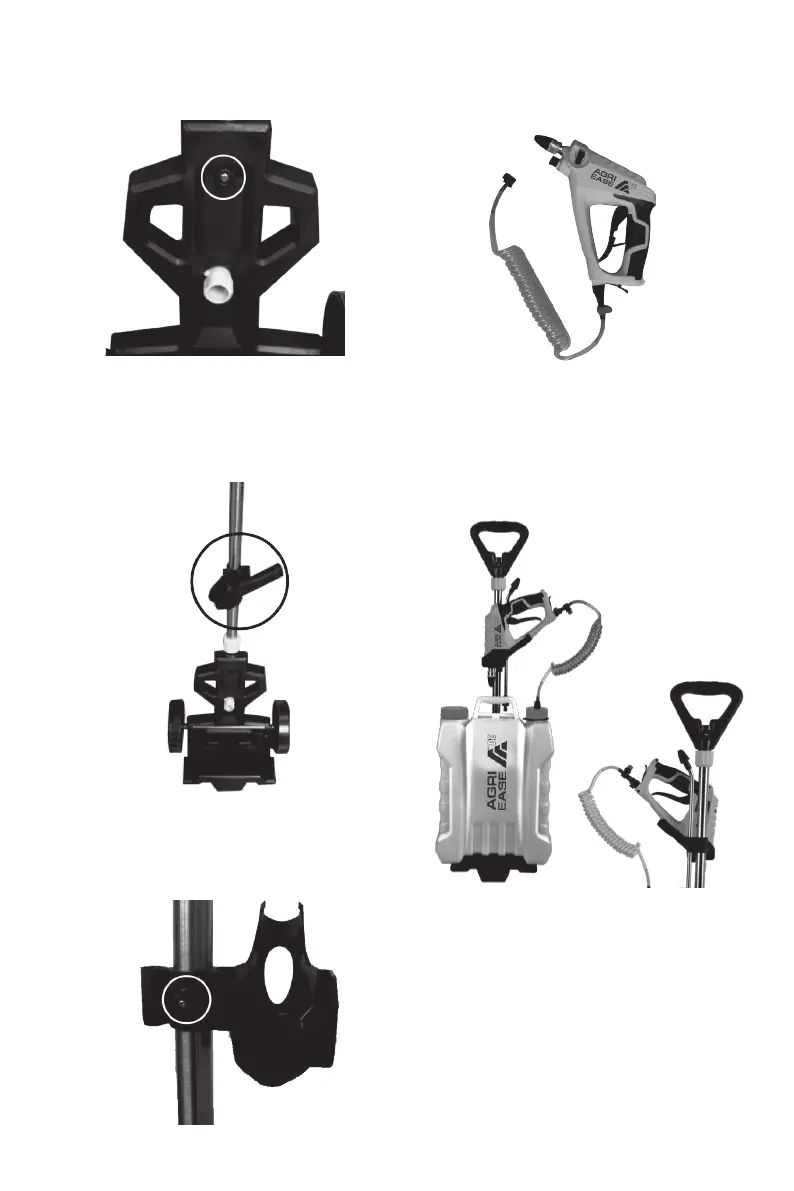

7. Put lockbolt in the hole as shown in
the diagram direction and lock the nut.
8. Adjustment the sprayer machine storage
as show in the diagram position. Then
fixe to the tube by screw.
9. Take off extension nozzle, put it in the
opposite hole of trolley hanging hook.
10. Take out sprayer machine and spring
hose to connect to the water outlet lid of
tank securely. Put the sprayer machine in
sprayer machine storage.
OPERATION OF THE SPRAYER
1. Starting:
Push the safety lock down and squeeze
the trigger on the spray gun.
2. Stopping:
Release the trigger. Push the safety lock
up in the lock position when not in use.
3. Adjust nozzle:
Twist the nozzle to get stream or spray
functions.
