BE WS1525H - Assembly; Attaching Suction Hose to Strainer Basket

12
9
3. Slide hose clamp (A) over end of hose (B). Slide
suction hose onto hose barb (C). Tighten hose clamp securely using a standard 1/4” (6mm) screwdriver.
Attach Suction Hose to Strainer Basket Slide hose clamp over hose. Attach open end of suction hose to strainer hose barb. Tighten hose clamp securely using a standard 1/4” (6mm) screwdriver.
Connect Discharge Hose (Optional) If desired, use a commercially available hose. DO NOT use a hose with an inside diameter smaller than the pump’s discharge port size.
1. Slide barb cuff over hose barb. Insert rubber seal into
end of barb cuff as shown earler.
2. Screw hose barb assembly onto pump in clockwise
rotation until hose barb assembly is tightened securely.
3. Slide hose clamp over end of discharge hose. Slide
discharge hose onto hose barb. Tighten hose clamp securely using a standard 1/4” (6mm) screwdriver.
C
A
B
Your water pump requires some set up and is ready for use after it has
been properly serviced with the recommended oil and fuel.

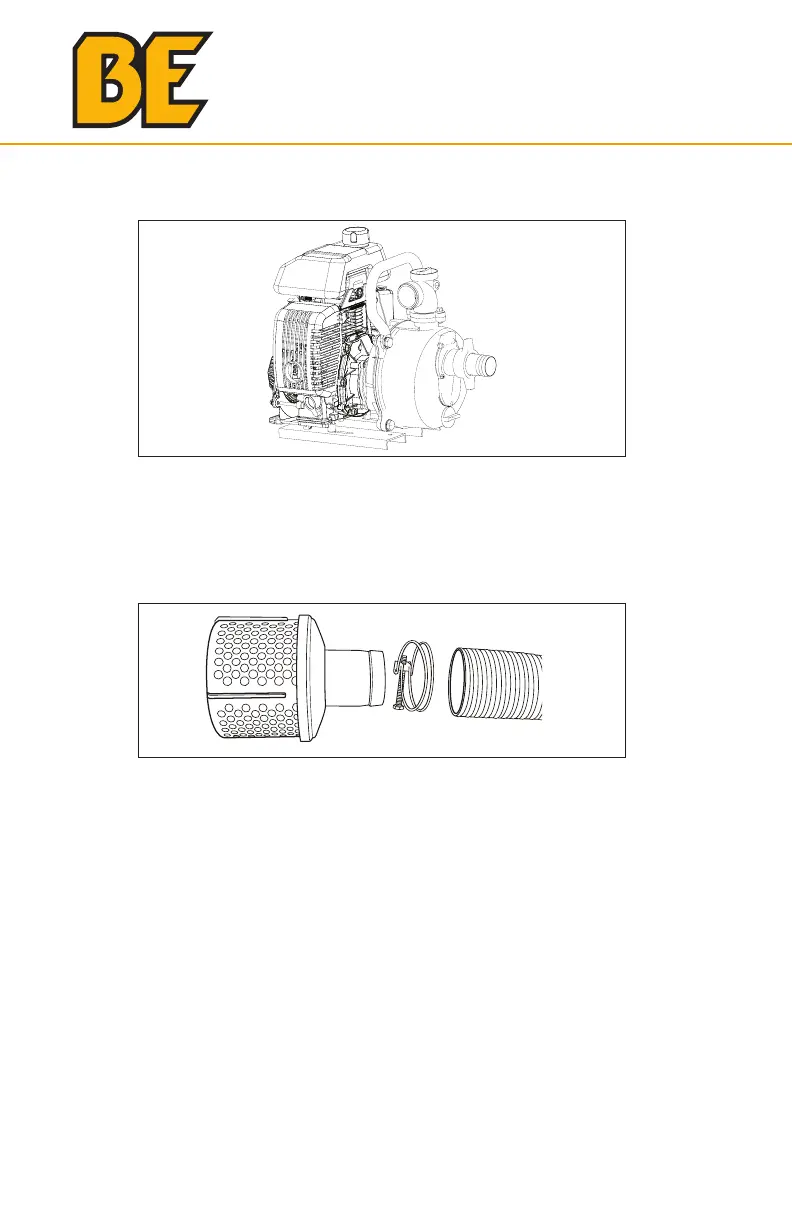

Attach Suction Hose to Strainer Basket
1. Slide hose clamp over hose. Attach open end of suction hose to
strainer hose barb. Tighten hose clamp securely.
ASSEMBLY
