Device-specific additional instructions for nailer
14/65 - 830C

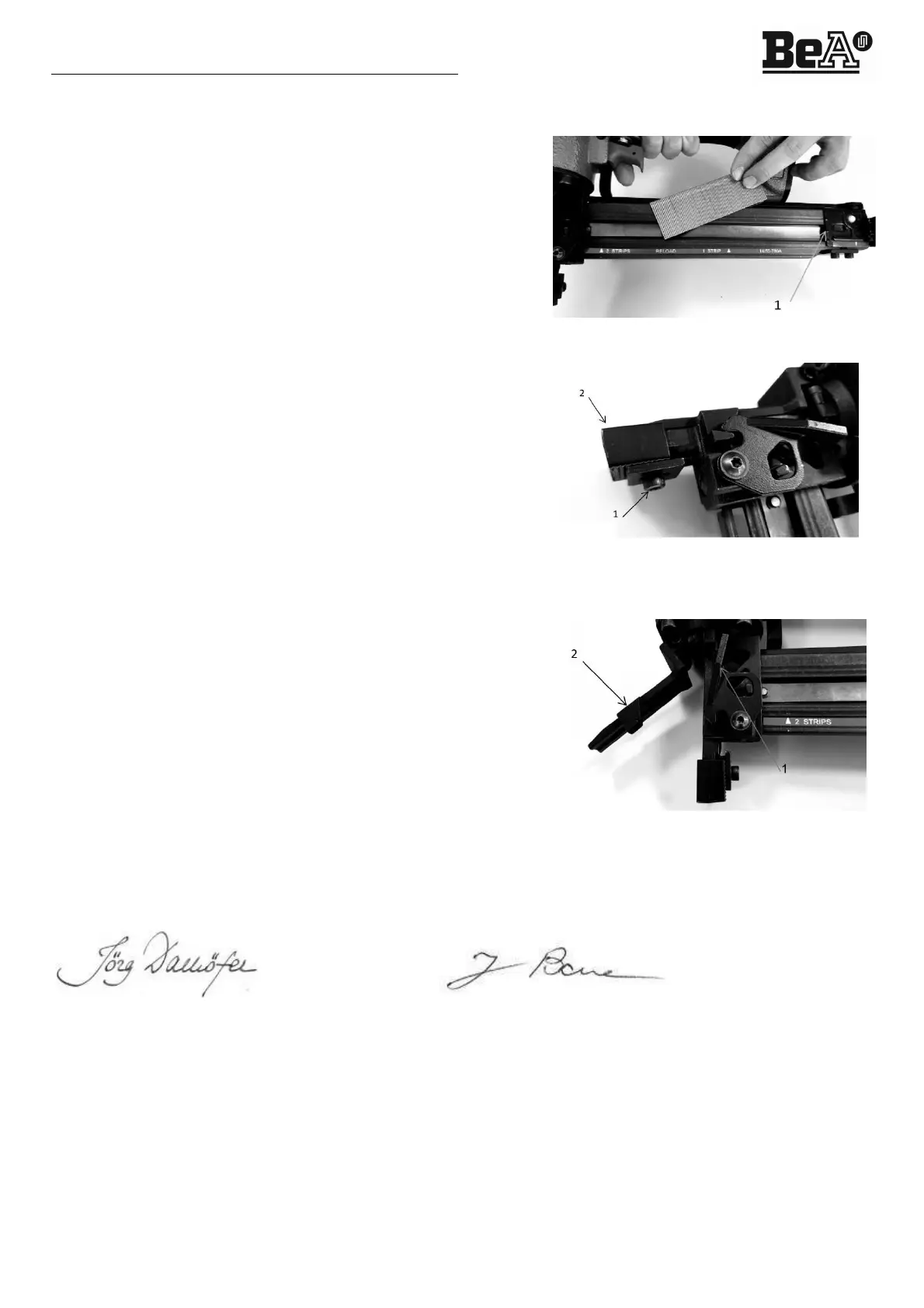

4 Filling the magazine
• Ensure that nailer and fasteners are compatible (Chap. 1) with
each other.
• Check fasteners for proper condition.
• Pull pusher 1 backwards and engage. Insert staple rod into the
magazine from above and push forward. Disengage the
pusher and push it forward.
5 Adjusting drive-in depth
• Reduce pneumatic operating pressure as far as possible to
minimize blowback, noise and air consumption (see General
operating instructions).
Mechanical adjustment of drive-in depth:
• Disconnect the tool from the compressed air supply. Loosen
screw 1 on the release bracket and push release shoe 2
downwards for less recessed clamps or upwards for more
recessed clamps. Then tighten screw 1 firmly again and
connect the tool with compressed air.
6 Removing stuck fasteners from the driving channel
• Disconnect the tool from the compressed air supply.
Remove the staples from the device. Actuate the locking
lever 1 and open the head piece flap 2. Remove jammed
staples. Close the head piece flap 1 again, connect the tool
to the pressure supply and refill the magazine with staples.
7 EU Declaration of conformity
The BeA GmbH, manufacturer or importer, address as on cover sheet, declares under sole responsibility this product's conformity with all
relevant provisions of the EU Machine Directive 2006/42/EG. The following standards are applied:
EN ISO 12100:2010 (Machine safety); ISO 11148-13:2017-11 (Hand-held non-el. machines - Fastener driving tools);
EN 12549:1999+A1:2008 (Noise measuring for driving tools); ISO 8662 (Vibrations at driving tools).
------------------------------------------ -----------------------------------------------------------
Dr. Jörg Dalhöfer, CEO Joachim Bauer, Documentation responsible
