P90X
®
Chin-Up Bar Instruction Sheet

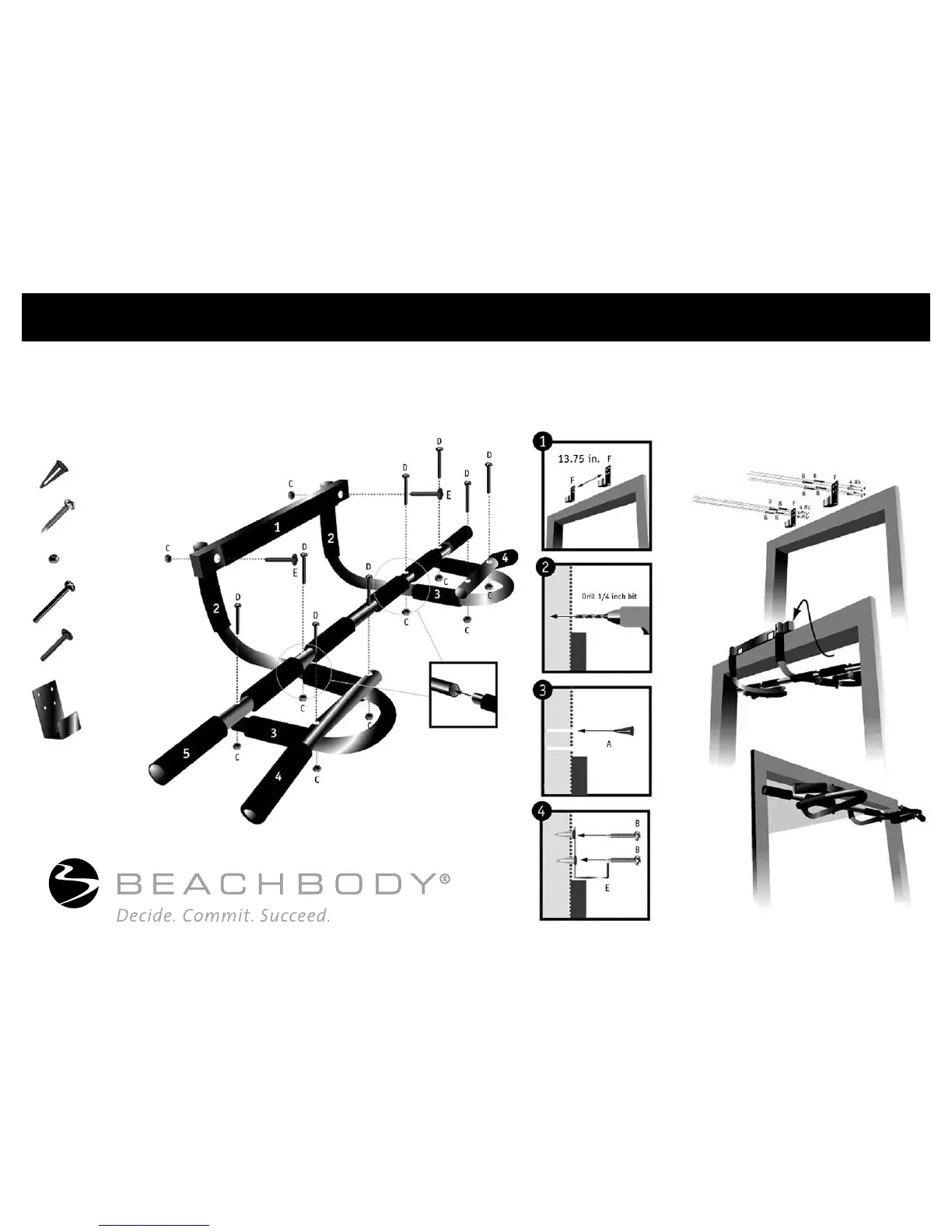

P90X Chin-Up Bar assembly:
P90X Chin-Up Bar mounting:
Hook P90X Chin-Up Bar onto
back “J” brackets as shown.
Assembly inventory: Door “J” bracket mounting:
A: qty: 8
Wall anchor
B: qty: 8
Wall screw
C: qty: 10
Nut
D: qty: 8
Screw
E: qty: 2
Screw
F: qty: 2
Door “J” bracket
Start Here
Easy Setup Instructions
Slide bars 2
and 3 together.
Center door “J” brackets
and mark holes.
Drill holes into marks for
wall anchors. Use a 1/4
drill bit.
Place wall
anchors.
Position door “J”
brackets and fasten
into place.
Back of
doorway:
Back of
doorway:
Front of
doorway:
Doorway
Doorway
Doorway
Door “J” bracket assembly:
Doorway
Wall
Wall
Wall
