Beacon Lighting LUCCI - Parts List

Nautilus Fan Installation Instructions
3 | P a g e V1.0 (09/2019)
PARTS LIST
• Unpack your ceiling fan and carefully. Remove all parts and hardware.
• Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
• Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.

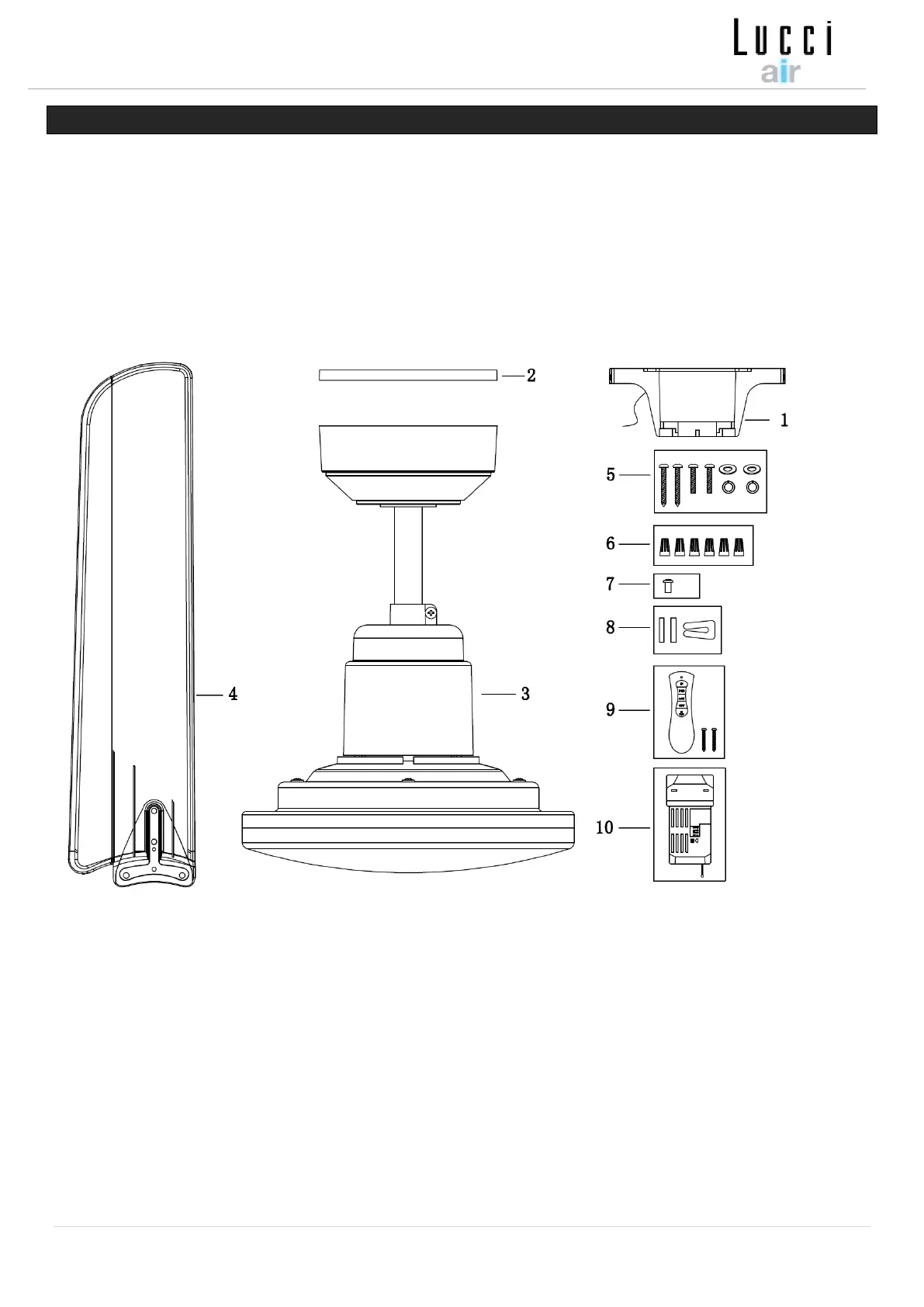

• Identify the parts. Please refer to Fig 1.
1
Mounting bracket x 1
6
Wire nut x 6
2
Canopy cover x 1
7
Extra motor screw for blade x 1
3
Pre-assembled fan motor, down rod
and canopy x 1
8
Balance kit x 1 set
4
Blades x 4
9
Remote x 1 set
5
• Wood screw x 2
10
Receiver x 1
• Machine screw x 2
• Flat washer x 2
• Spring washer x 2
Fig. 1
