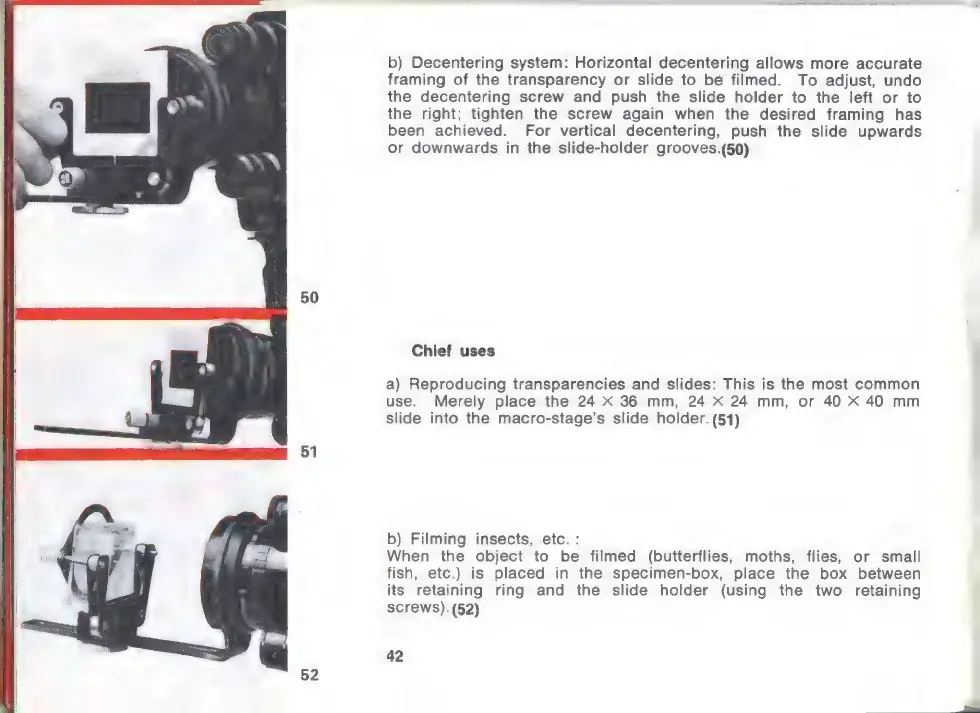

b) Decentering system: Horizontal decentering allows more accurate
framing of the transparency or slide to bé filmed. To adjust, undo
the decentering screw and push the slide holder to the left or to
the right; tighten the screw again when the desired framing has
been achieved. For vertical decentering, push the slide upwards
or downwards in the slide-holder grooves.(50)
Chief uses
a) Reproducing transparencies and slides: This is the most common
use. Merely place the 24 X 36 mm, 24 X 24 mm, or 40 X 40 mm
slide into the macro-stage's slide holder. (51)
b) Filming insects, etc. :
When the object to be filmed (butterflies, moths, flies, or small
fish, etc.) is placed in the specimen-box, place the box between
its retaining ring and the slide holder (using the two retaining
screws). (52)
42
