Split Air Conditioner | Aire Acondicionado Split | Ar Condicionado Split

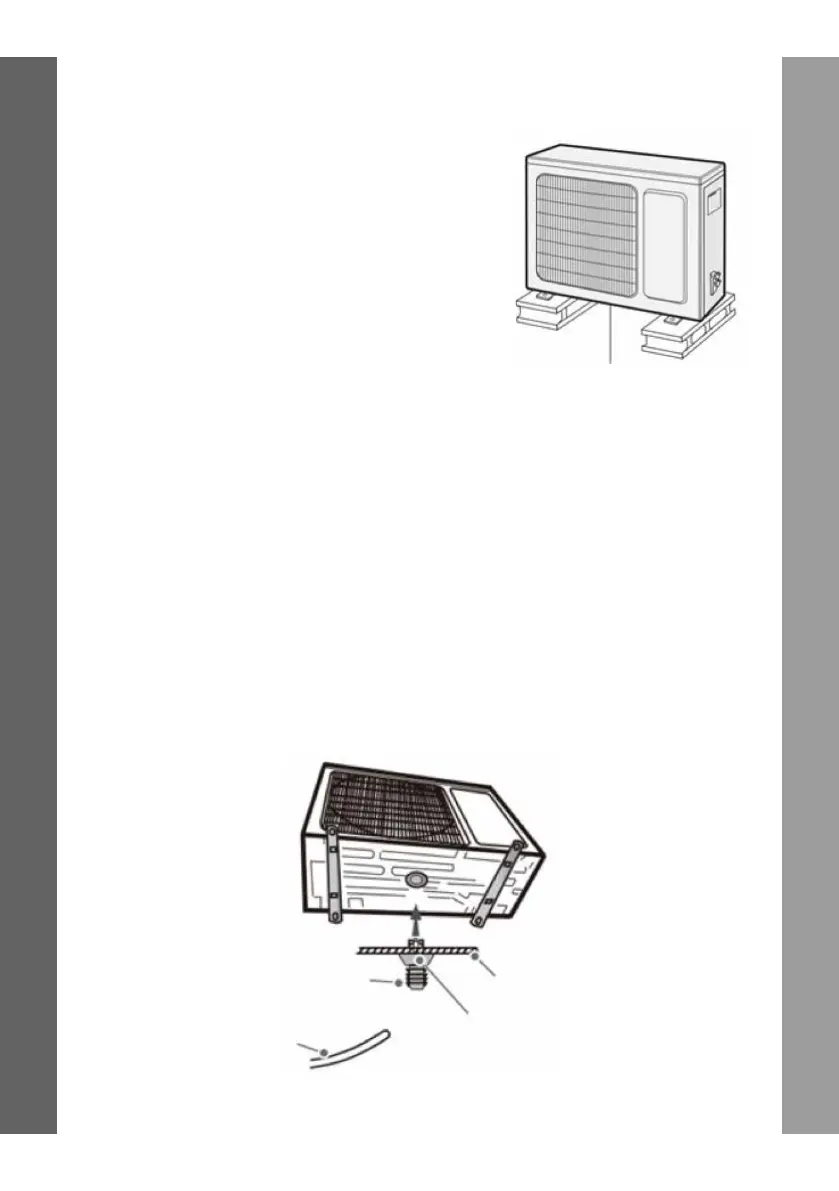

• The outdoor unit should be installed at least
3cm above the oor so a drain joint can be
installed. (for the model with heating tube,
the installation height should be no less
than 20 cm.)
• For the unit with a 2300 W ~5000 W
cooling capacity , 6 expansion screws are
needed; for the unit with a 6000W ~8000
W cooling capacity, 8 expansion screws are
needed; for the unit with a 10000 W ~16000
W cooling capacity, 10 expansion screws are
needed.
Step two: install a drain joint
(Only for some models)
1. Connect the outdoor drain joint into the hole on the chassis, as shown
in the picture below.
2. Connect the drain hose into the drain vent.
NOTE: As for the shape of the drain joint, please refer to the current
product. Do not install the drain joint in regions of severe cold.
Otherwise, it will be frosted and then cause malfunction.
At least 3 cm above
ground level
Drain vent
Drain hose
Chassis
Outdoor drain joint
