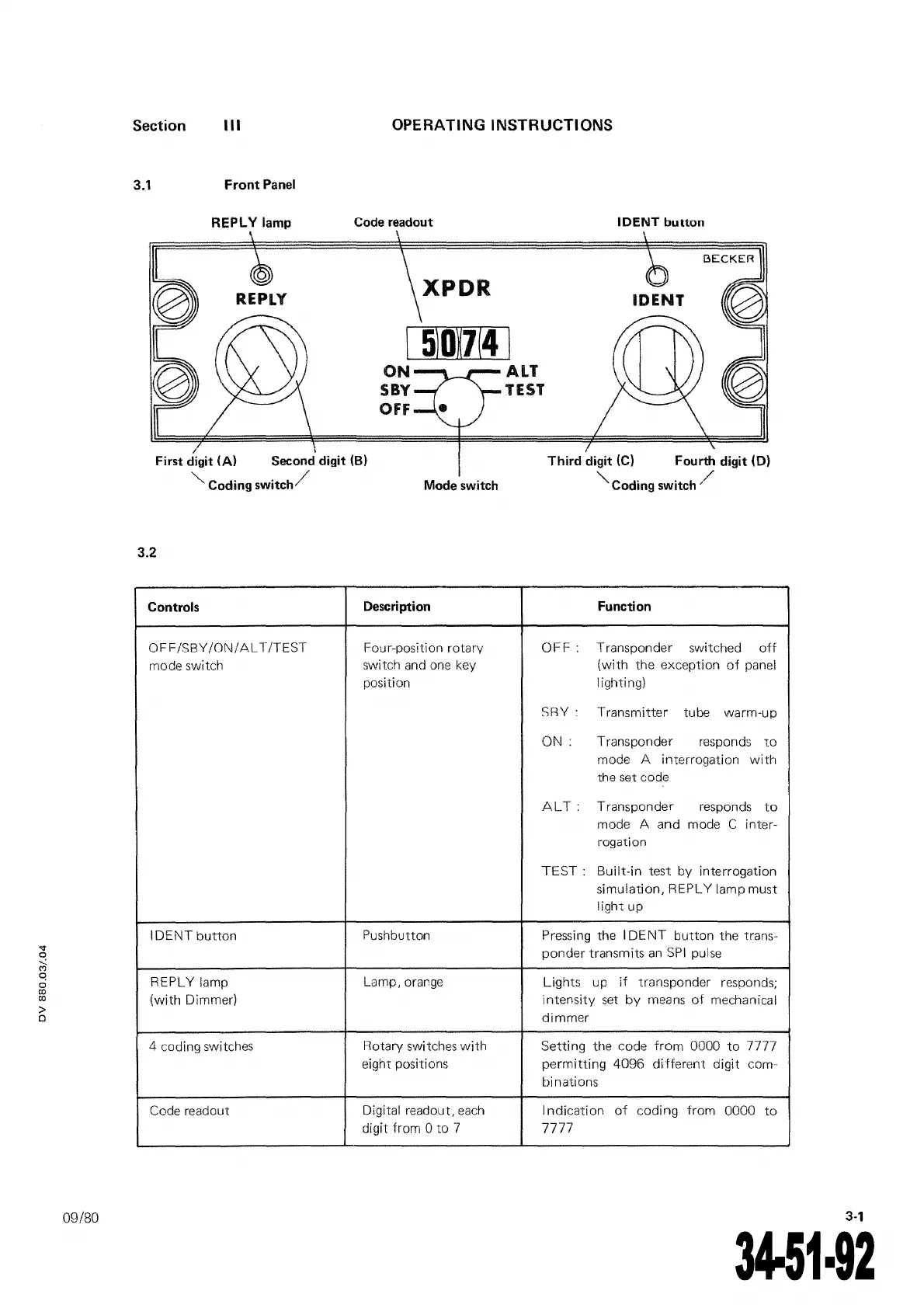

Section Ill
OPERATING INSTRUCTIONS
3.1
Front
Panel
REPLY lamp
1 '
Code readout
ON
SBY
OFF
XPDR
First digit (A} Second digit (B)
~ Coding switch/
Modeswitch
3.2
Controls
Description
OFF/SBY/ON/AL T/TEST Four-position rotary
mode switch
switch and
one key
position
IDENT button
Pushbutton
REPLY
lamp Larnp, orange
(with Dimrner)
4
co ding switches
notary switches with
eight positions
Code readout
Digital readout,
each
digit from 0 to 7
ALT
TEST
IDENT button
Third digit (C) Fourth digit (D)
"- Coding switch /
Function
OFF: Transponder
switched
off
(with the exception of panel
lighting)
SRY:
Transmitter
tube warm-up
ON: Transponder responds
to
mode
A
interrogation with
the set code
AL.T: T ransponder responds
to
mode
A and
mode C inter-
rogation
TEST: Built-in test by interrogation
simulation,
REPL Y lamp must
light up
Pressing the
1 DENT button the trans-
ponder transmits an SPI pulse
L.ights up
if
transponder responds;
intensity set by rneans of mechanical
di rn mer
Setti ng the code from 0000 to 7777
permitting 4096 different digit
corn··
bi nations
1
ndication
of coding from
0000 to
7777
3-1
