Product identification
Synchronous servomotor 13Version: 2.1

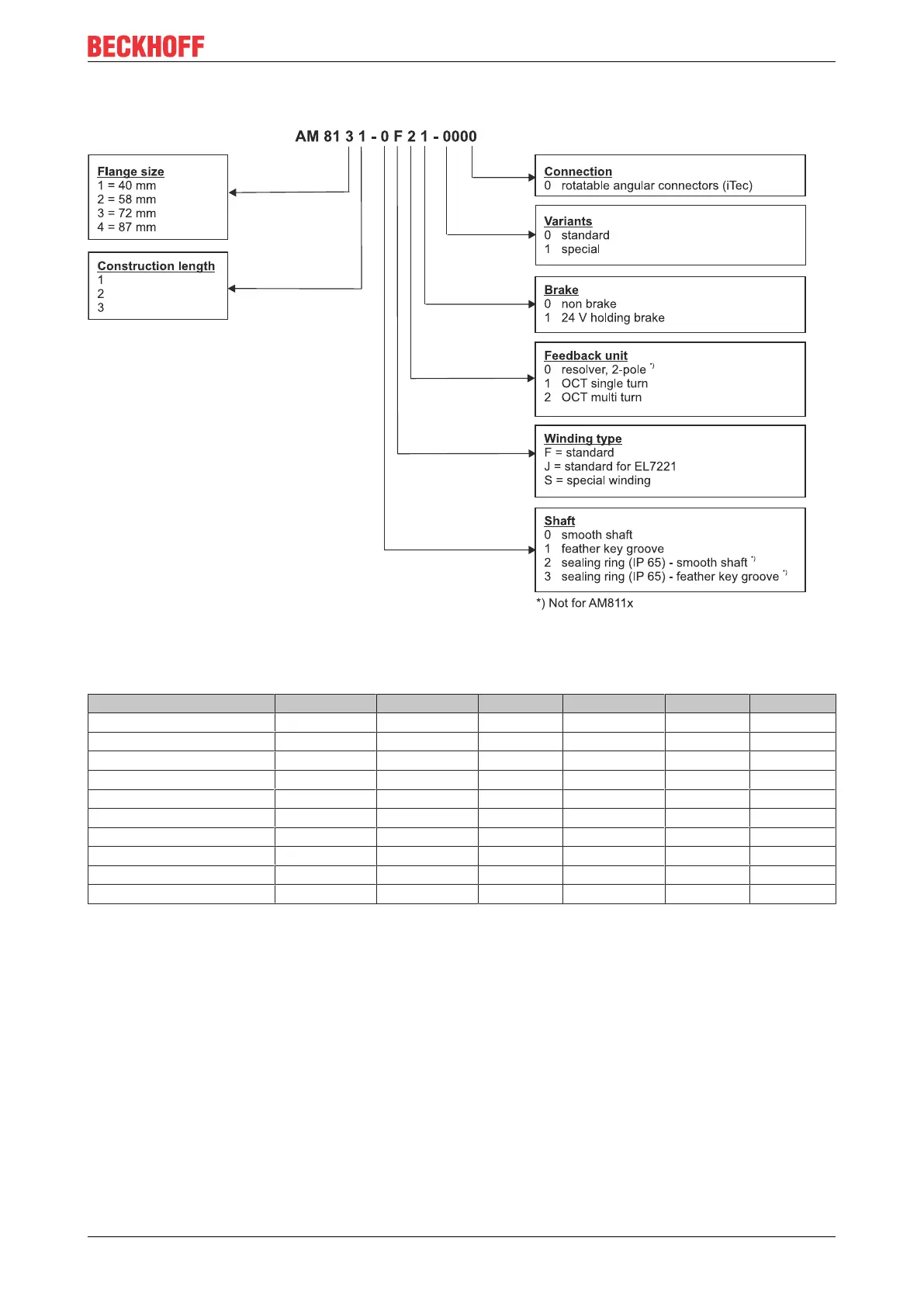

5.3 Type key AM8100
This matrix should explain the motor flange sizes related to a gearbox mounting.
Motor sizes, named in the same line use the same adapter unit for a gearbox coupling.
Beckhoff Flange size AM3000 AM3100 AM3500 AM8000 AM8100 AM8500
F1 AM301x AM311x - AM801x AM811x -
F2 AM302x - - AM802x AM812x -
Exception - AM312x - - - -
F3 AM303x - - AM803x AM813x AM853x
F4 AM304x - AM354x AM804x - AM854x
F5 - - - AM805x - AM855x
Exception AM305x - AM355x AM805x-xxxx-9 - -
F6 AM306x - AM356x AM806x - AM856x
F7 AM307x - - AM807x - -
Exception AM308x - - - - -
