4.2 DIP switch settings
DIP switches can be used to select different addressing options and assign the PROFINET name.
BK9103
• Right switch position: OFF
• Left switch position: ON

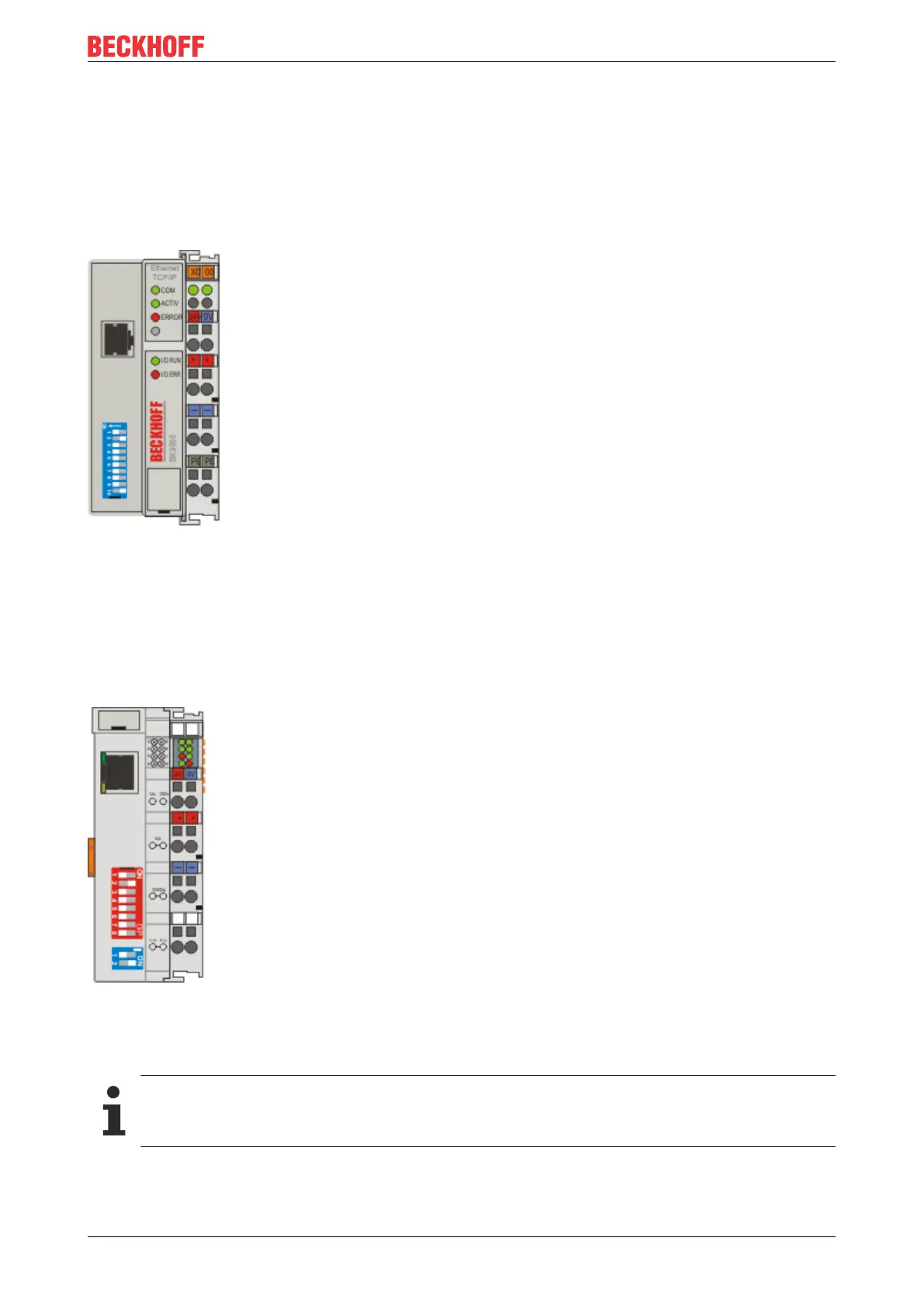

Fig.11: DIP switches of the BK9103
The device is PROFINET-compliant if DIP switches 18 are OFF and DIP switches 9 and 10 are ON. All other
modes are available as options.
BK9053
• Right switch position: ON
• Left switch position: OFF
Fig.12: DIP switches of the BK9053
The device is PROFINET-compliant if DIP switches 18 are OFF and DIP switches 1 and 2 are ON. All other
modes are available as options.
PROFINET name via DIP switch
The name is formed from bk9103-xxx + DIP switch. xxx corresponds to DIP switch 1-8. Bk must be
lower case!
