Beckhoff C9900-P223 User Manual

Installation Instructions
C9900-P223 / C9900-P224 7
Installation Instructions
Configuration and installation

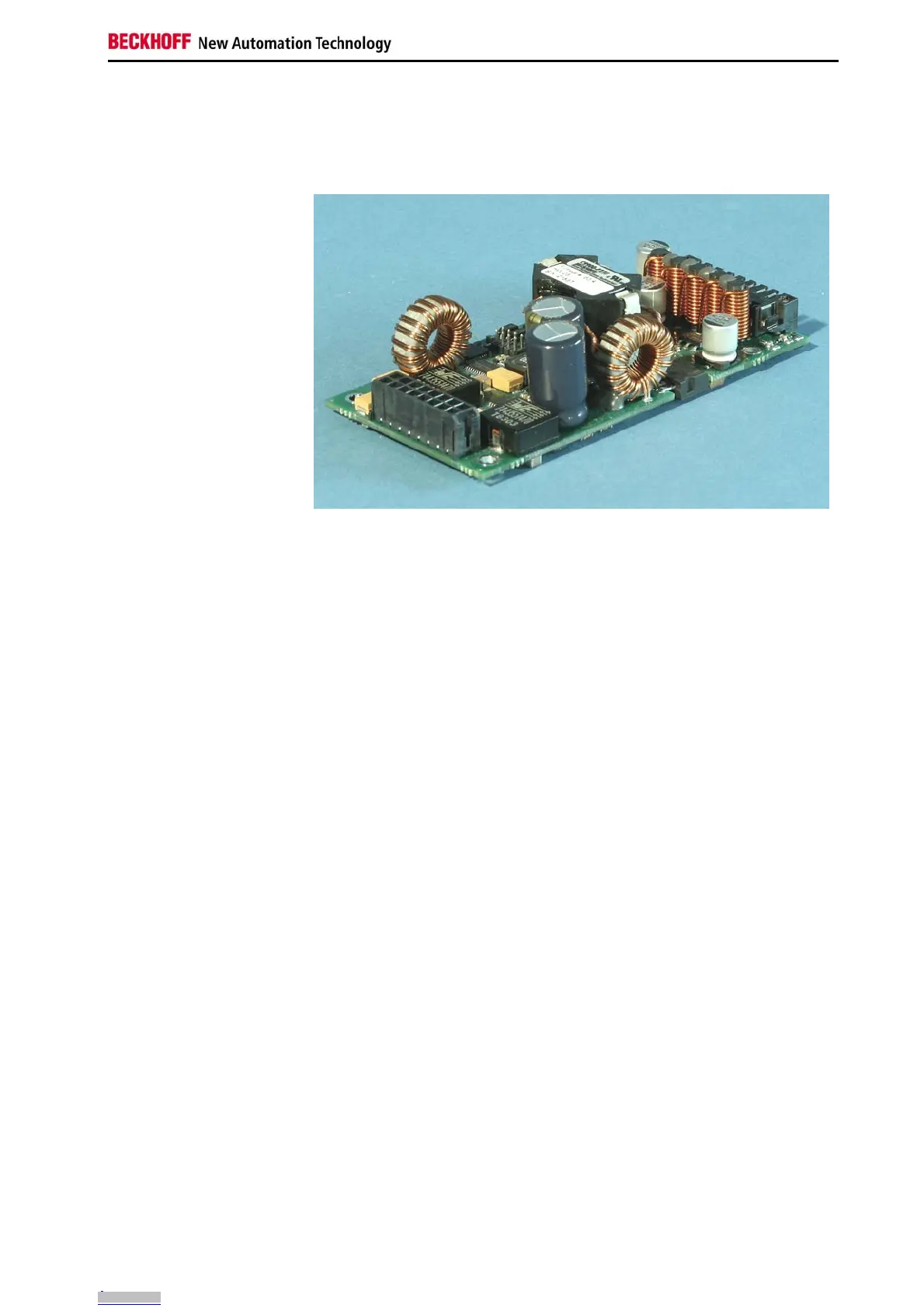

View of the power supply
unit
The power supply unit is installed at the prescribed position in the Industrial
PC.
The figure shows the supply connections for the power supply unit (1) and
the electrical connections for the motherboard (2).
1
2
