Appendix
Embedded PC 55

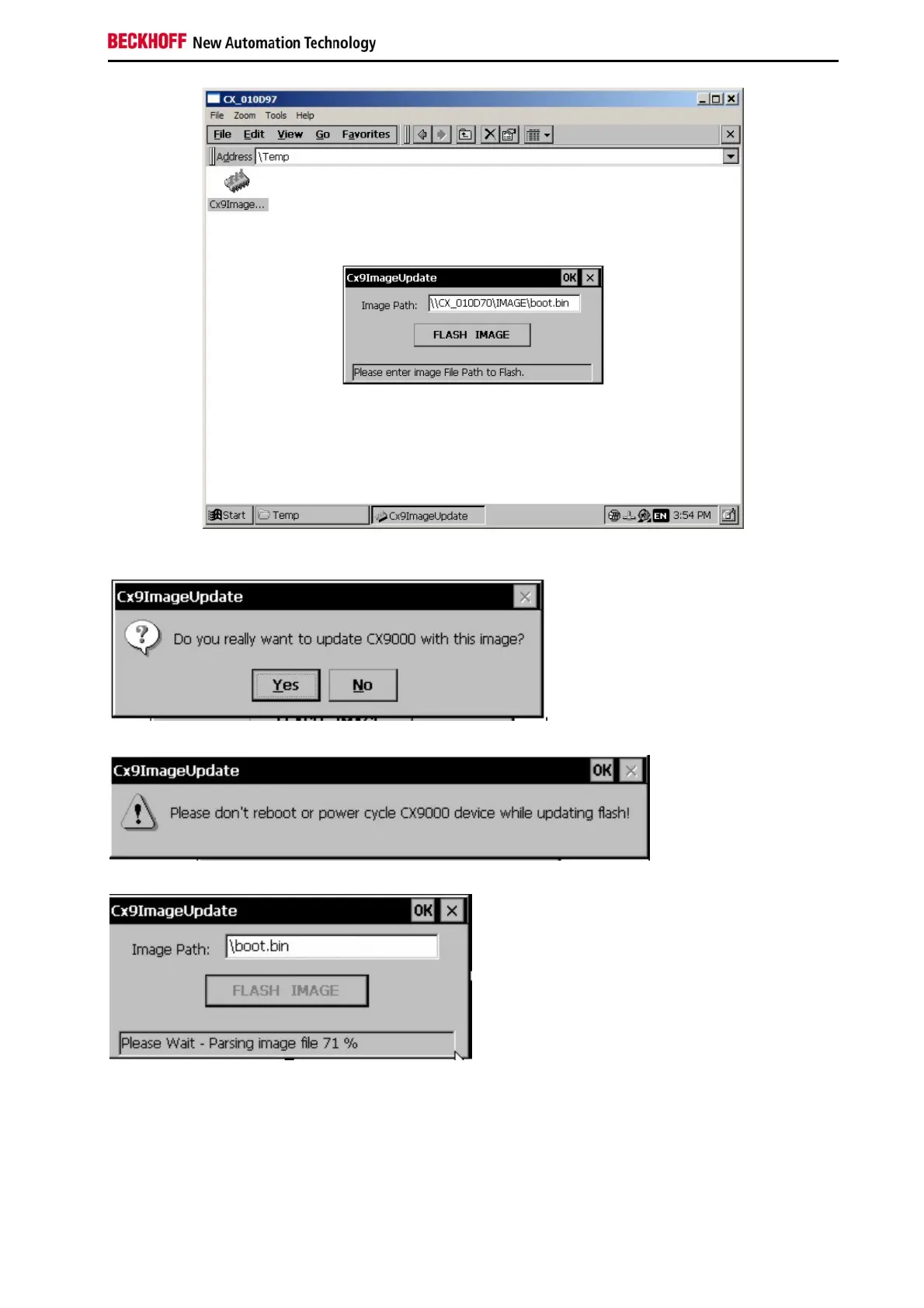

After click on "FLASH IMAGE" button a request box appears to confirm the image file. This is the last chance to
abort the update process.
When confirming the image file a warning appears on the screen.
The progress is shown in the status line in the bottom of the tool.
When the update is complete the following message appears in the status field:
