BedRug Bedliner Installation Instructions
Procedure
BRINST Rev. Level: 15 12/4/2009 Page 3 of 6

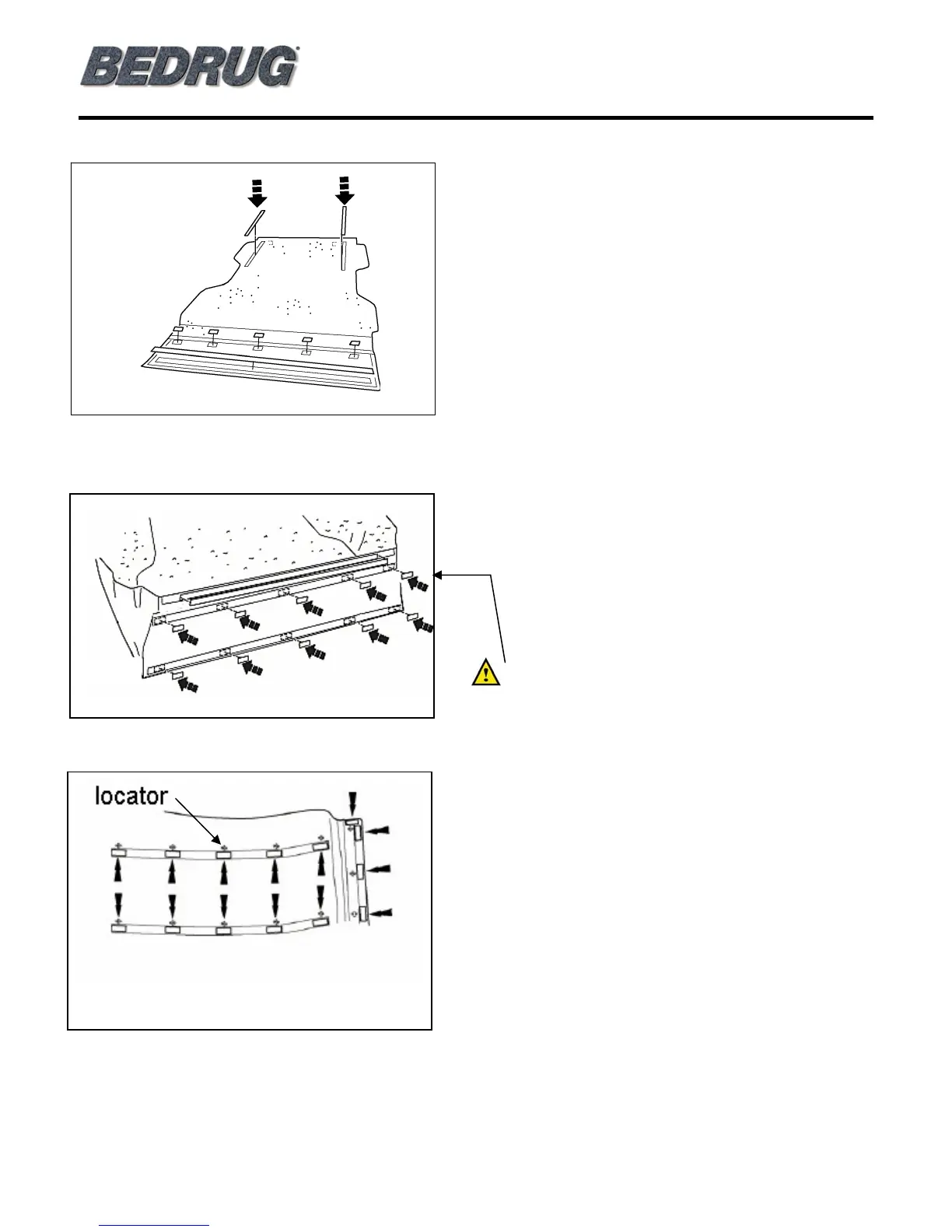

5. Installing fasteners to Bed Rug.
(a) Attach (2) 1”X 36”, 1”X 2” and 1”X 60” hook to
underside of the BedRug and tailgate. Trim 1”X 60”
strip where necessary. Do not remove adhesive
protective film at this time. (Fig 5-1)
(b) Attach 1” X 60” and 1” X 2” hook to the BedRug
bulkhead area facing the front as shown. Trim excess
from 1” X 60” strip where necessary. Do not remove
adhesive protective film at this time. (Fig. 5-2)
Middle 1” x 2” row of hook fasteners shown are not
applicable on some models.
(b) Attach 1” X 2” fasteners to the back sides of the
BedRug sidewalls as marked by locators. Do not
remove adhesive protective film at this time.
(Fig 5-3)
Fig. 5-1
Fig. 5-2
Fig. 5-3
