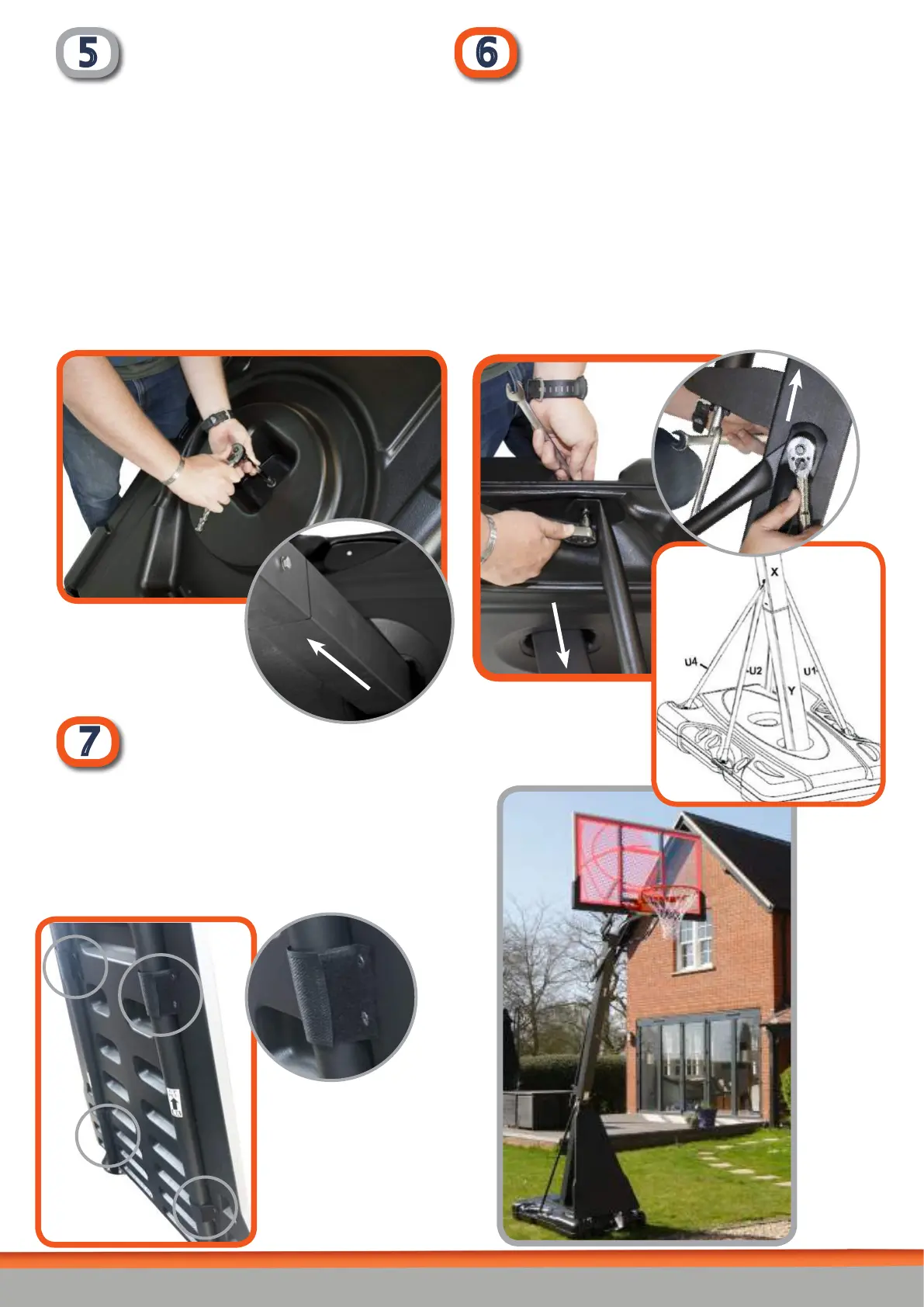

5
Attach the Base Struts
You will need:
Pre-assembled parts from Step 1 - 5
1 x Bolt, Nut & Washers F & plastic bolt cap (M10 x140mm)
4 x Base struts (parts 12: U1, U2, U3 & U4)
4 x Bolts, Nuts & Washers I (M8 x 25mm)
Attach the top ends of the Base Struts (parts 12) to the
Middle Pole (near bracket Q) using one Bolt, Nut and
Washers F. U1 & U2 stay on the inside (touching Middle
Pole) and U3 & U4 on the outside. Finish by adding the
plastic bolt cap. Now secure the bottom ends of struts U1
& U2 on the two sides of the base and U3 & U4 to on the
front of the base using four Bolts, Nuts and Washers I.
5
Attach the Base & Bottom Pole
You will need:
Bottom Pole (part 8 - Y) and Pre-assembled Backboard,
Top Pole and Middle Pole from Steps 1 - 4
1 x Bolt J (M8 x 30mm)
1 x Washer J
1 x Bolt, Nut & Washer G (M10 x 110mm)
Fix the Bottom Pole (part 8 - Y) to the Base (part 10)
using one Bolt and Washer J. Then lay the bottom pole
and base on its side.
Carefully laying the pre-assembled parts from Steps 1 -
4 on their side, attach the Bottom Pole and Middle Pole
6
7
Completing the Stand
You will need:
1 x Rebound Board
Assembled Basketball Stand
Place the rebound board above your base (against the
base struts) as pictured. Secure in place using the velcro
straps on the reverse of the board (see image below).
Using two capable adults,
raise the stand so it is standing
upright on its base. Tighten all
your nuts once again to make
sure everything is secure.
Follow the instructions on
lling your base to ensure it
is weighed down correctly.
underside
