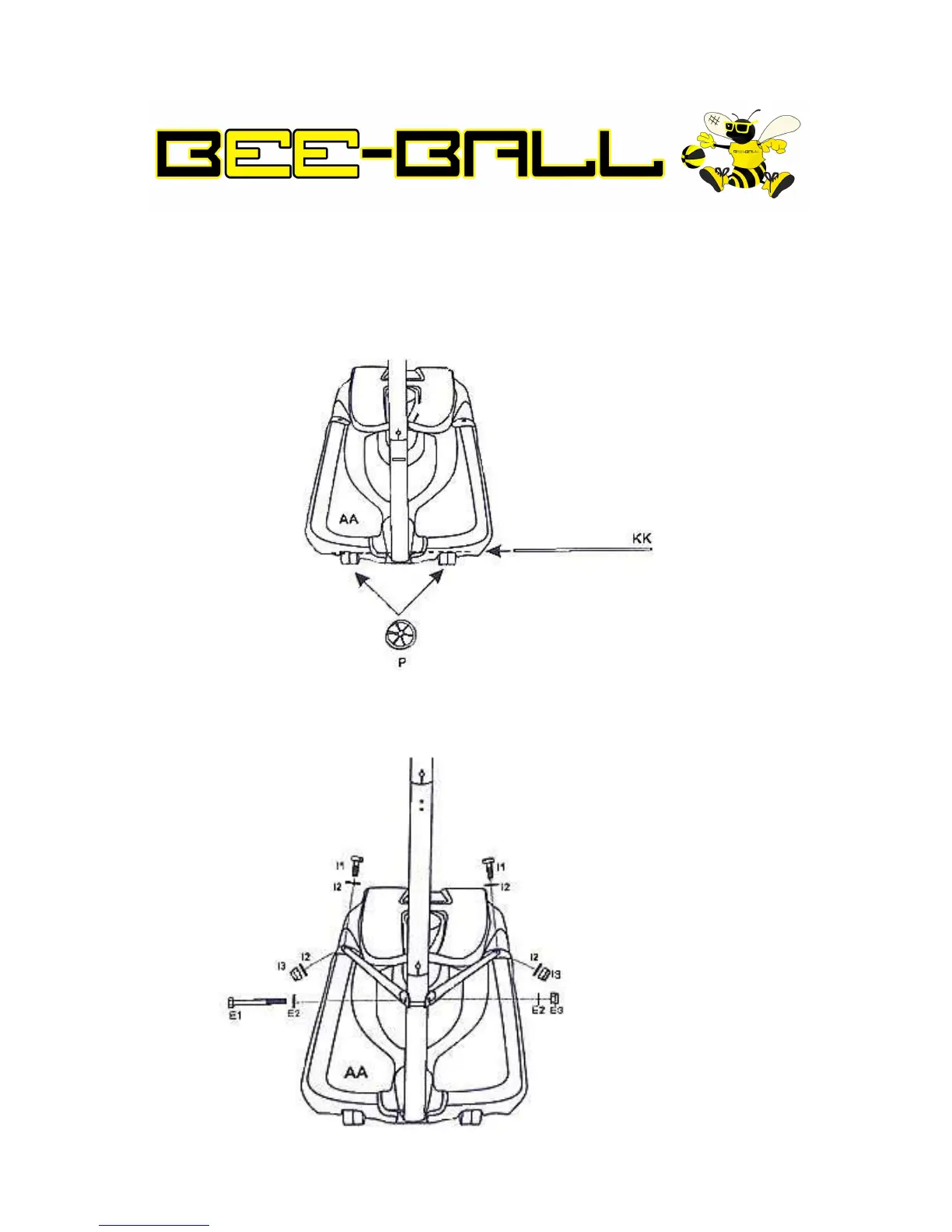

Step 2.
Now you have the upright pole built, you attach this to the base. We would recommend using some
assistance in holding the pole upright while you fit the axel and wheels. To assemble the axle slide the
wheel Axle (KK) through the base then through one wheel (part P) then through the bottom pole (FF)
and then through the other wheel (part P). The bottom pole (FF) has a small pipe for a bolt to go
through, this should be facing away from the base.
Step 3.
Attach the Support Struts Parts( II) and (JJ) to the base using bolts (I1). Then attach parts II and JJ to the
Bottom pole using bolts (E1). Completely tighten all base and pole brace hardware.
