Assembly:

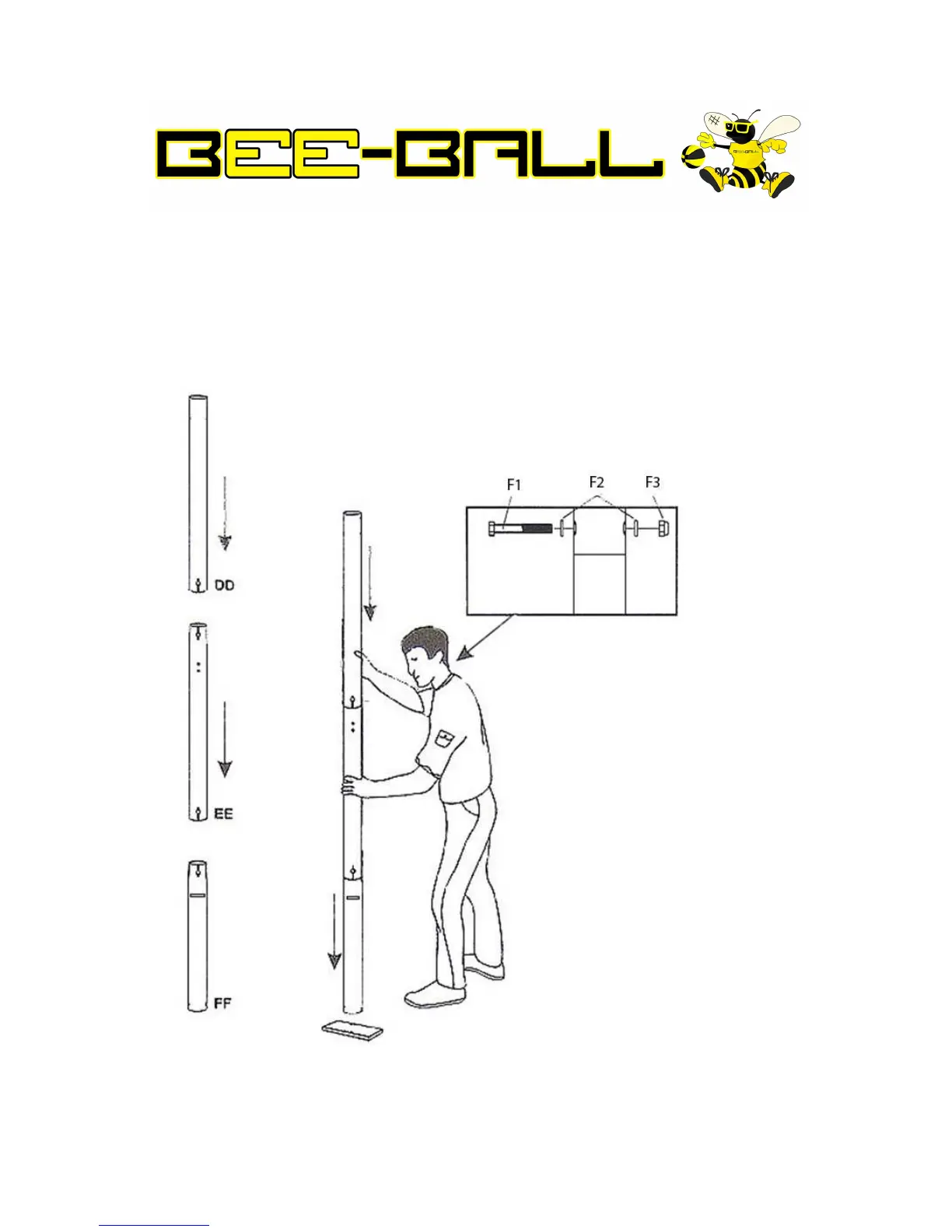

Step 1.

Align the pre drilled holes in the bottom of the top pole (DD) with the pre drilled holes in the top of the

middle pole (EE). Secure using bolt F1,F2 and F3, completely tighten the nuts. Then align the pre drilled

holes in the bottom of the middle pole (EE) with the pre drilled holes in the top of the bottom pole (FF).
