Bee-Ball ZY-020 - Page 8

+

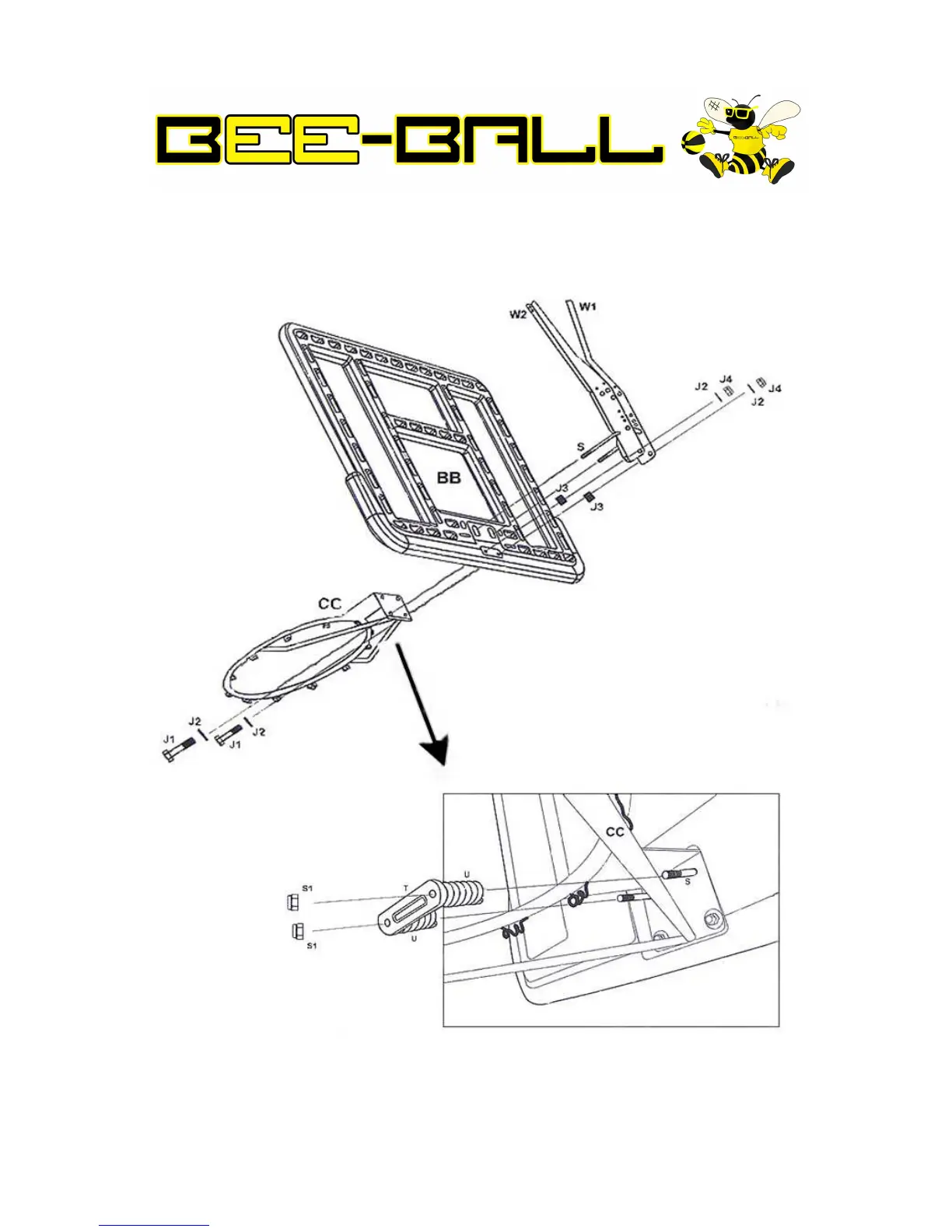

Attach the ring (CC) to the backboard (BB) and the brace (W1/W2) using the U bolt (S) through the two
top holes. (Fig. 5a). Attach Parts U and T on the ends of the U bolt (S) then secure them all together with
nuts (S1). (Fig. 5b) Note: tightening these nuts will adjust the ring tension. Attach bolts J1 in the bottom
holes to secure the ring.
Step 6.
Fig. 5a
Fig. 5b
