8 HINGE AND DOOR ASSEMBLY
HINGE AND DOOR ASSEMBLY

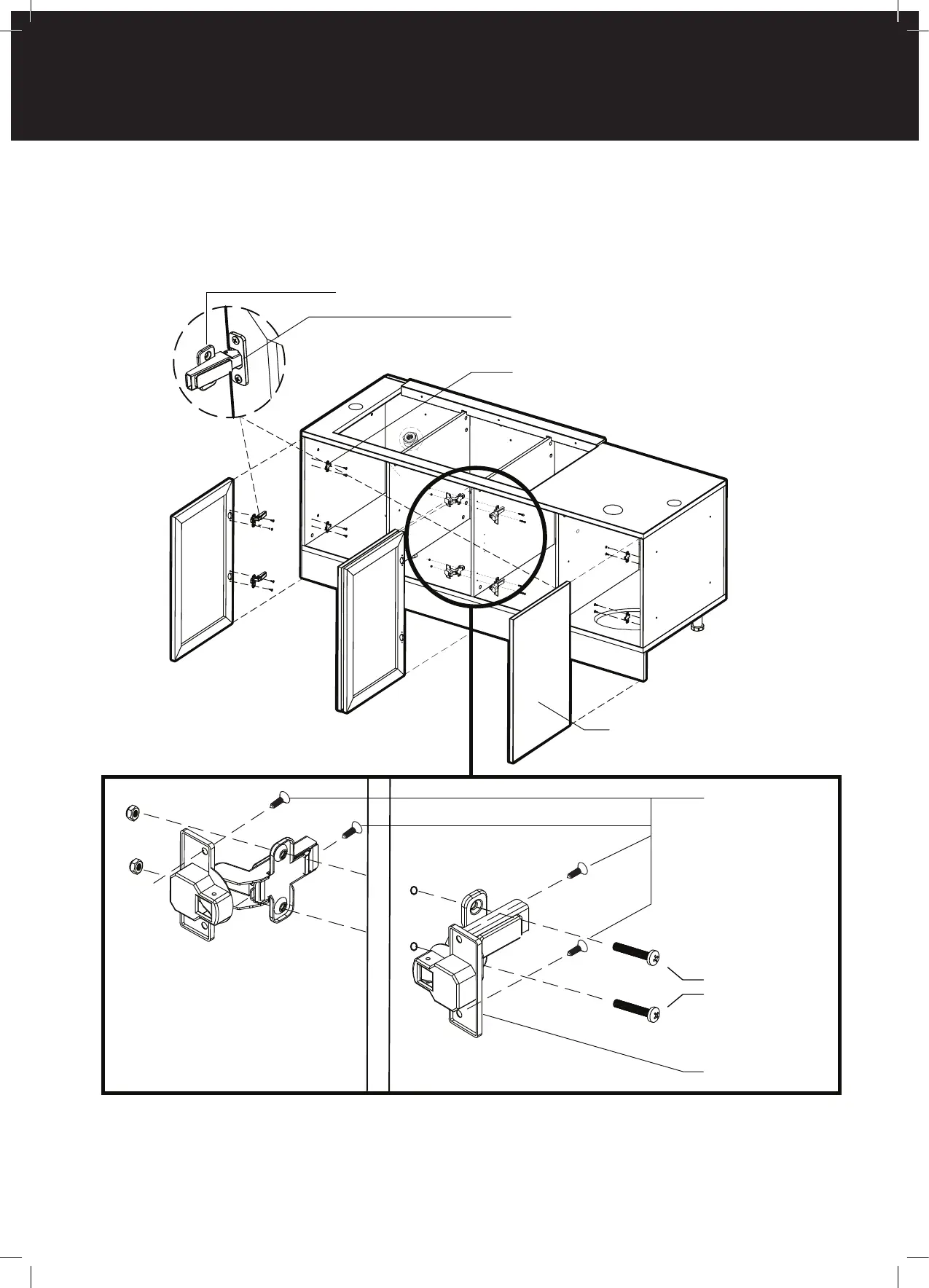

Use eccentric hinges (item #9) and M4 x 12mm screws for the centre doors and
use regular hinge (item #13) and M4 x 16mm screws for outer doors
Regular hinge
Hinge mounts
Door
Use M4 x 16mm screws
Eccentric hinges
Use M4 x
25mm bolts
and Nylock
nuts
Use M4 x 16mm
screws to
attach hinges to
the doors
