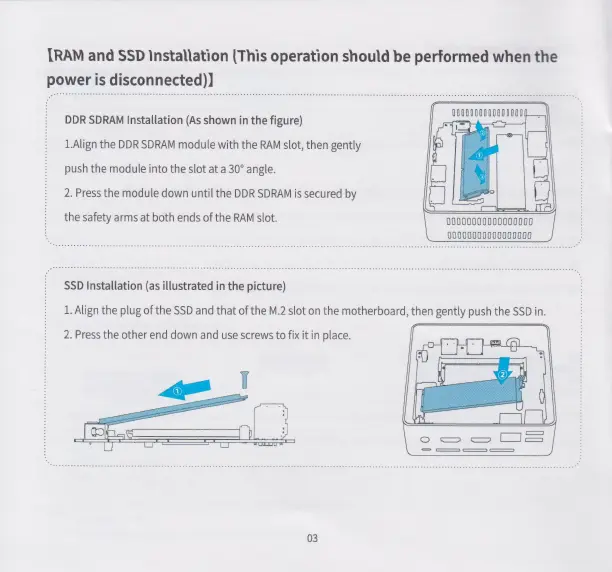

[RAM

and

SSD

Installation

[This

operation

should

be

performed

when

the

Û

is

disconnected)]

DDR

SDRAM

Installation

(As

shown

in

the

figure)

1.Align

the

DDR

SDRAM

module

with

the

RAM

slot,

then

gently

push

the

module

into

the

slot

at

а

30°

angle.

2.

Press

the

module

down

until

the

DDR

SDRAM

is

secured

by

the

safety

arms

at

both

ends

of

the

ВАМ

slot.

SSD

Installation

(as

illustrated

in

the

picture)

1.

Align

the

plug

of

the

SSD

and

that

of

the

M.2

slot

on

the

motherboard,

then

gently

push

the

SSD

in.

2.

Press

the

other

end

down

and

use

screws

to

fix

it

in

place.

03
