5. Starting at the tractor connector, insert the wiring harness into the large 3/4” wire
loom. Slide the large 3/4” wire loom over the two smaller 3/8” pieces of wire loom
approximately 1”-2”. Secure with a cable tie (see fig. 5). Note: The wiring harness to
the tractor may be longer than necessary and can be shortened and rewired to the
tractor connector if needed.
6. The hydraulic supply line to the rear cylinder is routed through the right square tube
located underneath the front input shaft support. The light kit wiring is routed through
OPERATION 16 BEFCO
C
YCLONE SUPER-FLEX OPERATOR’S MANUAL

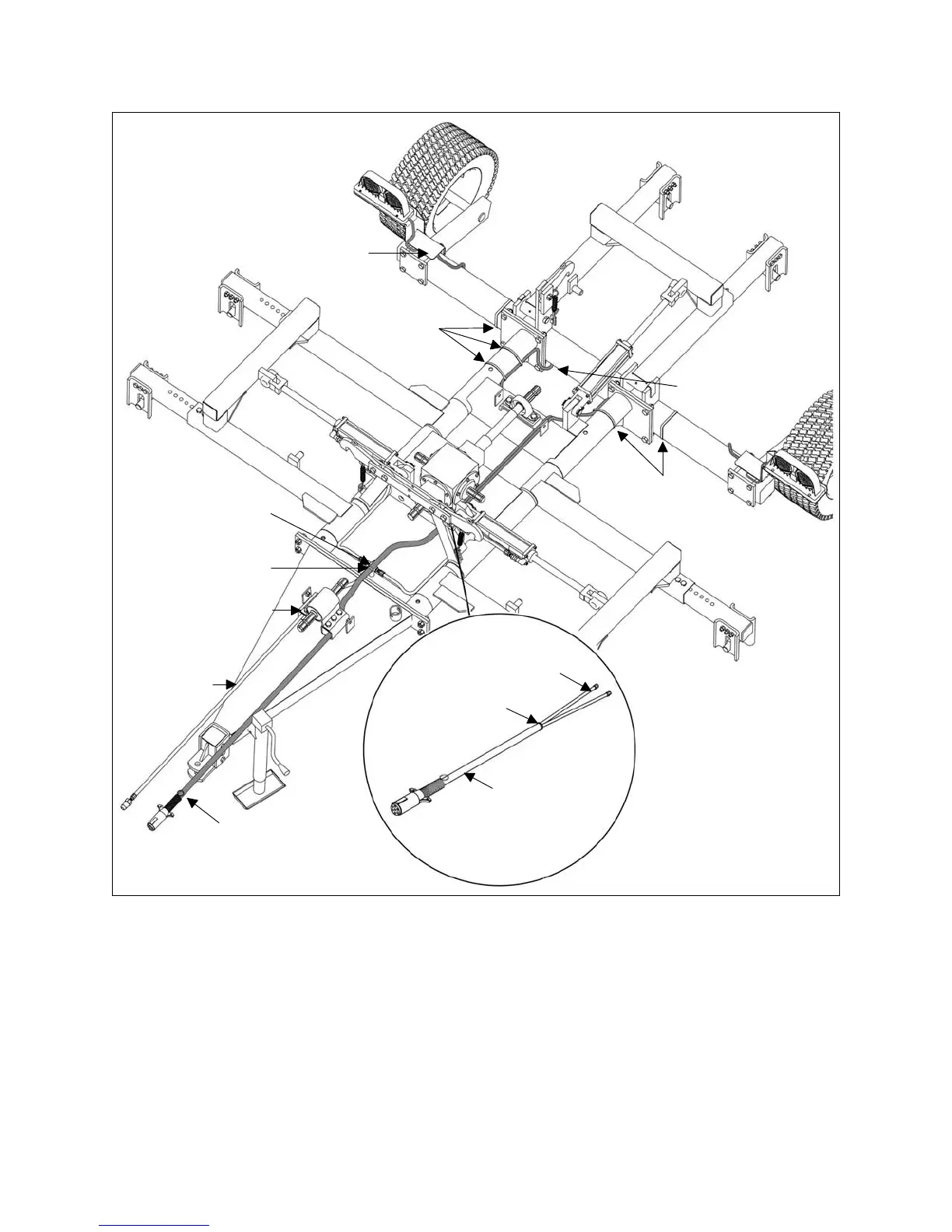

Fig. 5 - Light kit layout.
cable tie
cable tie
cable tie
hydraulic cross
front input shaft support
hydraulic hose
light kit harness
wire loom 3/8"
cable tie
wire loom 3/4"
slide plug end under
light mount plate
route wiring harness
behind mower plate
