Every 50 hours:
1. Lubricate the nine spindles with two or three shots of multipurpose grease (see fig.
18). The top grease fittings are easily accessible from the top of the deck by simply
removing the plastic dust guards.
2. Check belt tension
19
.
3. Grease the main drive shaft carrier bearing (see #1, fig. 16).
Every 250 hours or at least once a year:
Hand pack with fresh grease the main carrier wheel bearings on the Flex frame (see #4
and #7, fig. 16).
MAINTENANCE 34 BEFCO
C
YCLONE SUPER-FLEX OPERATOR’S MANUAL
19
See Section 4.04 - Belt Tension, for details.

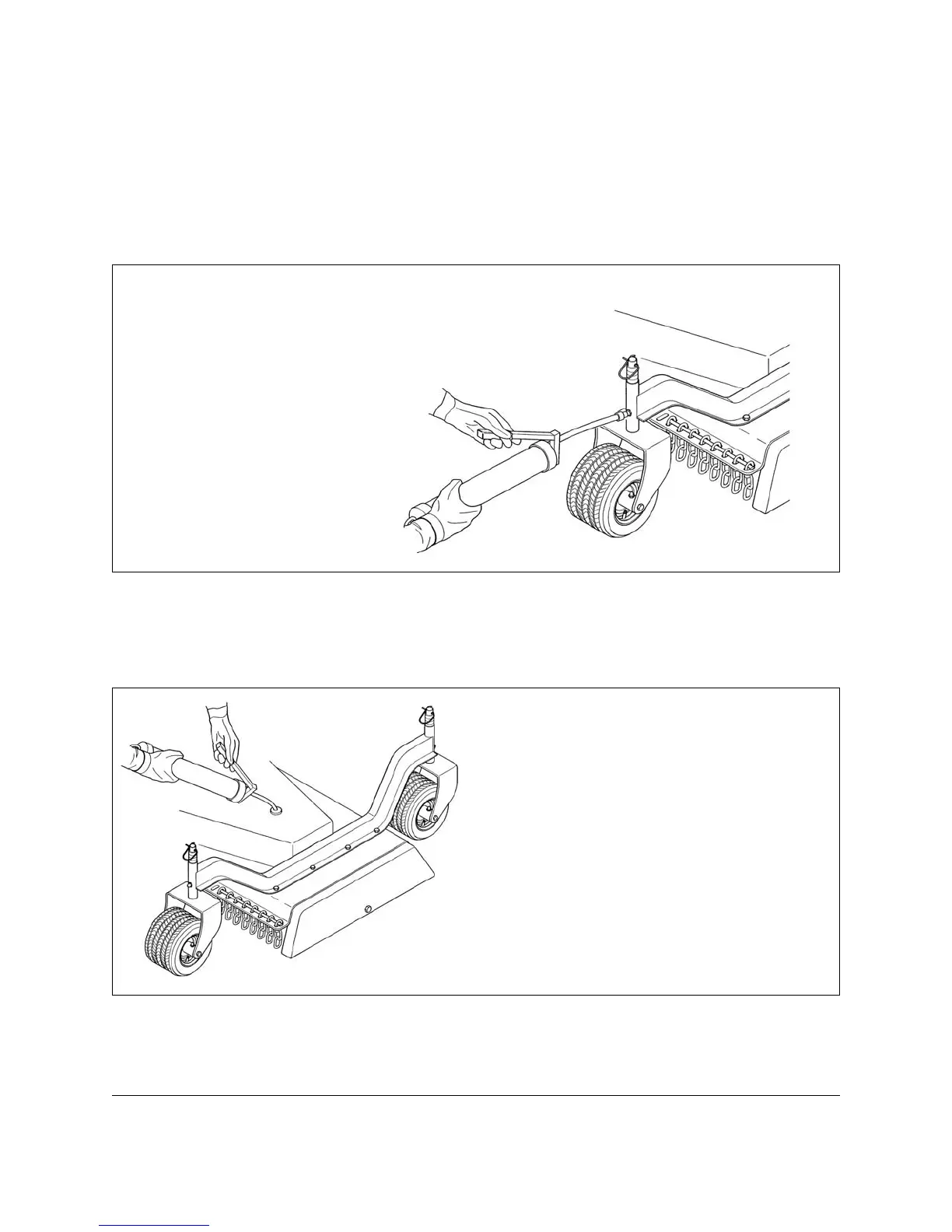

Fig. 17 - Lubrication of wheel yokes.
Fig. 18
Lubrication of the spindle shafts easily
accessible from the top of the deck.
