To assemble and setup the tiller for initial operation proceed as follows:
1. Lower the stand to support the tiller (see fig. 4). Secure it in place with the locking
pin.
2. Disassemble top and sides of the crate. Cut wires holding driveline. Leave machine
banded to pallet as long as possible to avoid tipping over during assembly.
3. Assemble the hitch together loosely (see fig. 3), and bolt it to the tiller.
4. Ensure the breather plug (see #2, fig. 4) is screwed into the chain case (see #3, fig.
4). Check the gearbox oil level (see #1, fig. 5). It should be approximately half full. If
needed add SAE 90W gear oil.
5. Check all hardware for proper torque
5
.
OPERATION 13 BEFCO
T
ILL-RITE T50 OPERATOR’S MANUAL
5
See Table 2, page 31 for proper torque specification.

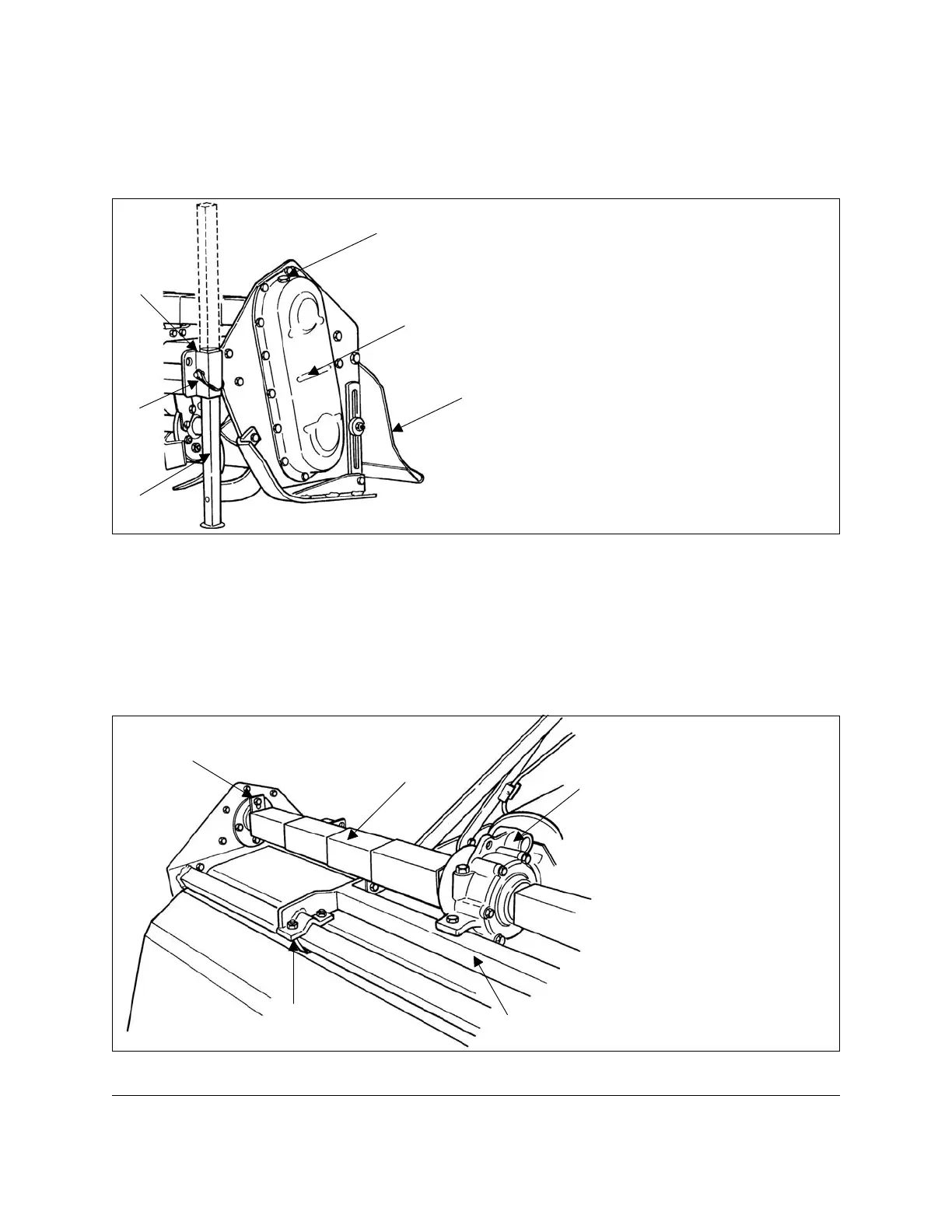

Fig. 4
1
2
3
1. tiller stand
2. breather plug
3. chain case
4
4. rear shield
5. stand support
6. locking pin
6
5
1
2
3
4
5
Fig. 5
1. gearbox
2. locking clamps
3. sliding frame
4. side plate shield bolt
5. telescopic shield
