3.03 - Side-Shift
The side-shift capability gives the tiller numerous advantages over center mounted
tillers. It can till next to shrubs, sidewalks or buildings. Smaller sizes can cover wider
tractor tire tracks.
To side-shift the tiller from the center mount position, do the following:
1. Loosen the 8 nuts (#1, fig. 8) holding the locking clamps to the front and rear of the
gearbox housing. Do not remove the nuts.
2. Push the sliding frame (#2, fig. 8) towards the left to its new desired position. This
can be done without levers or turnbuckles. Do not shift it right of center.
3. Re-tighten the 8 nuts.
OPERATION 15 BEFCO
T
ILL-RITE T50 OPERATOR’S MANUAL

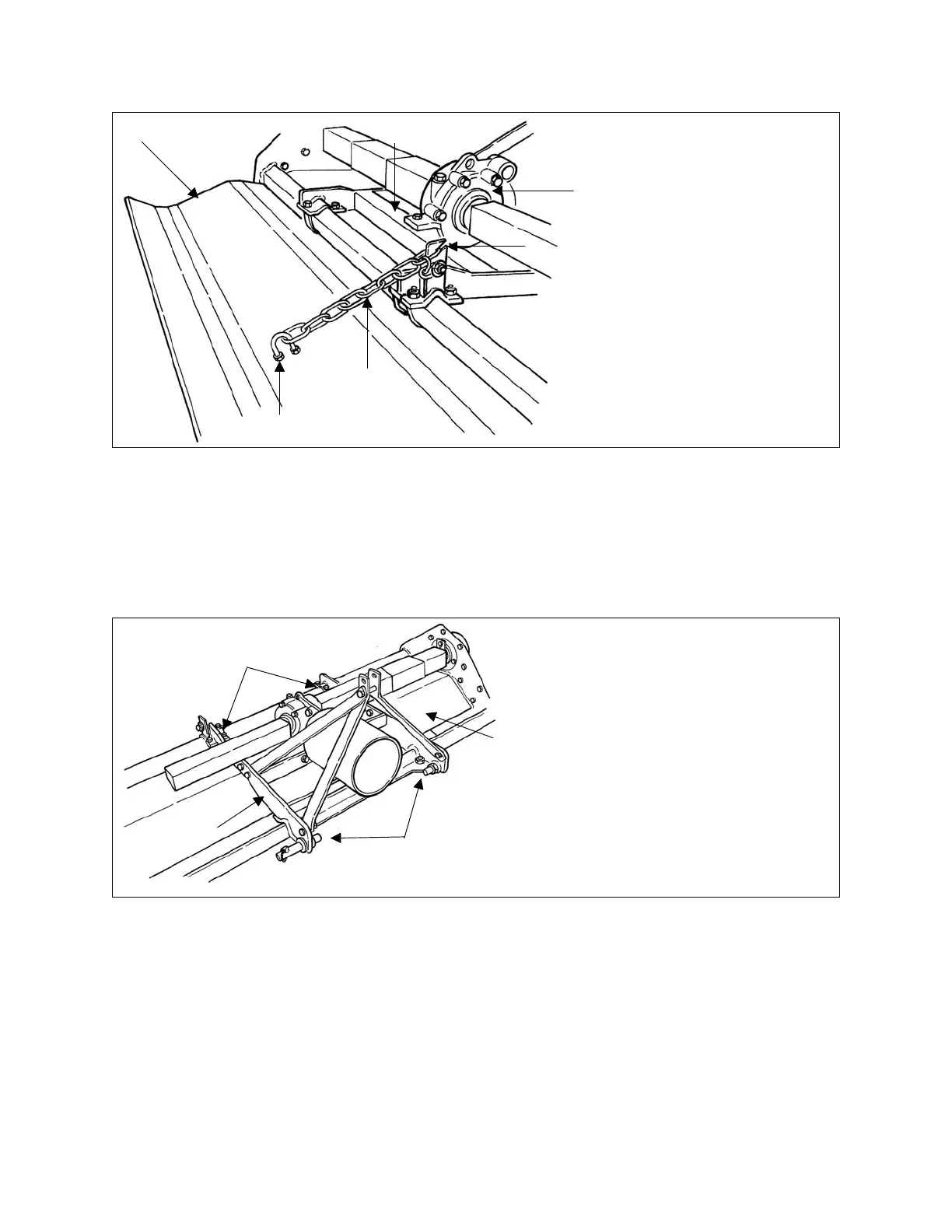

Fig. 7
1. rear shield
2. adjustment chain
3. 'U' bolt
4. chain hitch
5. sliding frame
6. gearbox
1
2
3
4
5
6
1
1
3
2
Fig. 8
1. nuts holding the locking clamps
2. sliding frame
3. main tiller frame
To Next Page
