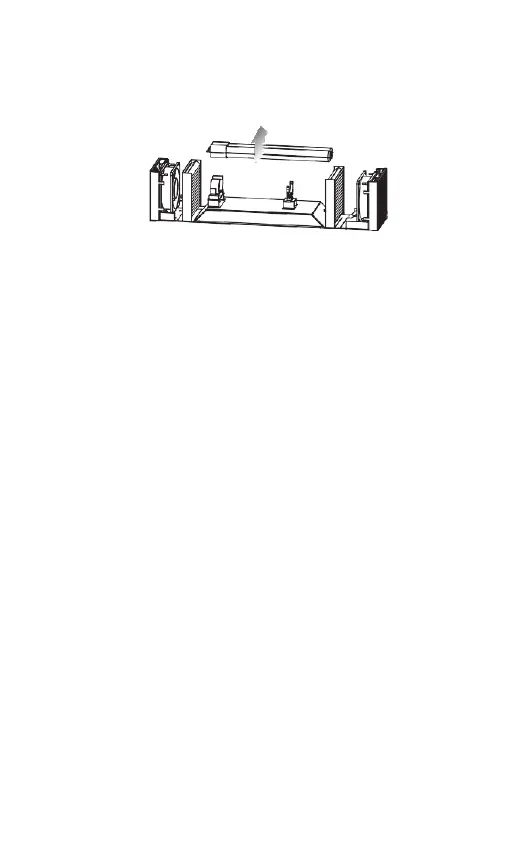

- Take out the 5 screws from the bottom of the device (the
middle screw first)
- Take out the inside part (single body) and remove the cover
- Replace the cartridge only with an original UVoxy
®
Beghelli spare part (code 26720)
- Put the cover back on, re-insert the device body into the
housing and tighten the 5 screws (the middle screw last)
SanificaAria 30 TECHNICAL FEATURES
Power supply: 230VAC ± 10%, 50÷60Hz (2m long cable)
Local switch on power cable
Power consumption: 24W
UV-C Lamp: TC 2G11 18W
UV-C wavelength: 254nm
Sanitization rate: 30m
3
/h UV-C
radiant power: 5.5W
Ozone-free UV-C lamp
Cartridge life: 12 months (continuous use). Replacing the
cartridge allows you to keep the germicidal performance
of the device in time.
Noise level: 40dB (A) at 1 meter
Weight: 3.5kg
Degree of protection: IP20
Insulation class: I (appliance with protective grounding)
Automatic safety microswitch
