Power Connection
!

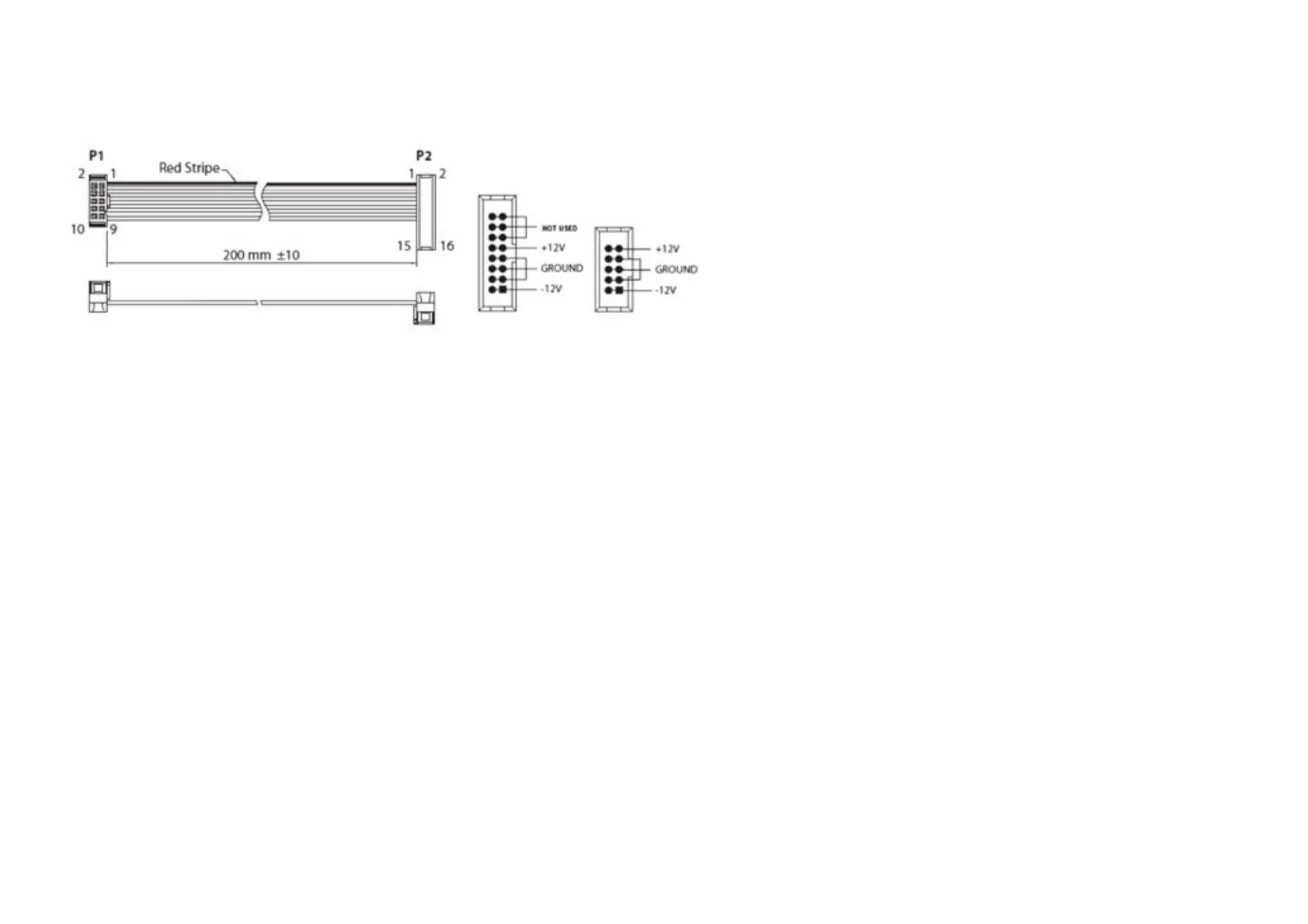

The unit comes with the required power cable for connecting to a standard Eurorack power supply system. Follow these steps to
connect power to the module. It is easier to make these connections before the module has been mounted into a rack case. !
1. Turn the power supply or rack case power off and disconnect the power cable. !
2. Insert the 16-pin connector on the power cable into the socket on the power supply or rack case. The connector has a tab that will
align with the gap in the socket, so it cannot be inserted incorrectly. If the power supply does not have a keyed socket, be sure to
orient pin 1 (-12 V) with the red stripe on the cable. !
3. Insert the 10-pin connector into the socket on the back of the module. The connector has a tab that will align with the socket for
correct orientation. !
4. After both ends of the power cable have been securely attached, you may mount the module in a case and turn on the power
supply. #
