Behringer DIGITAL MIXER X32 PRODUCER User Manual

Page 4 of 5

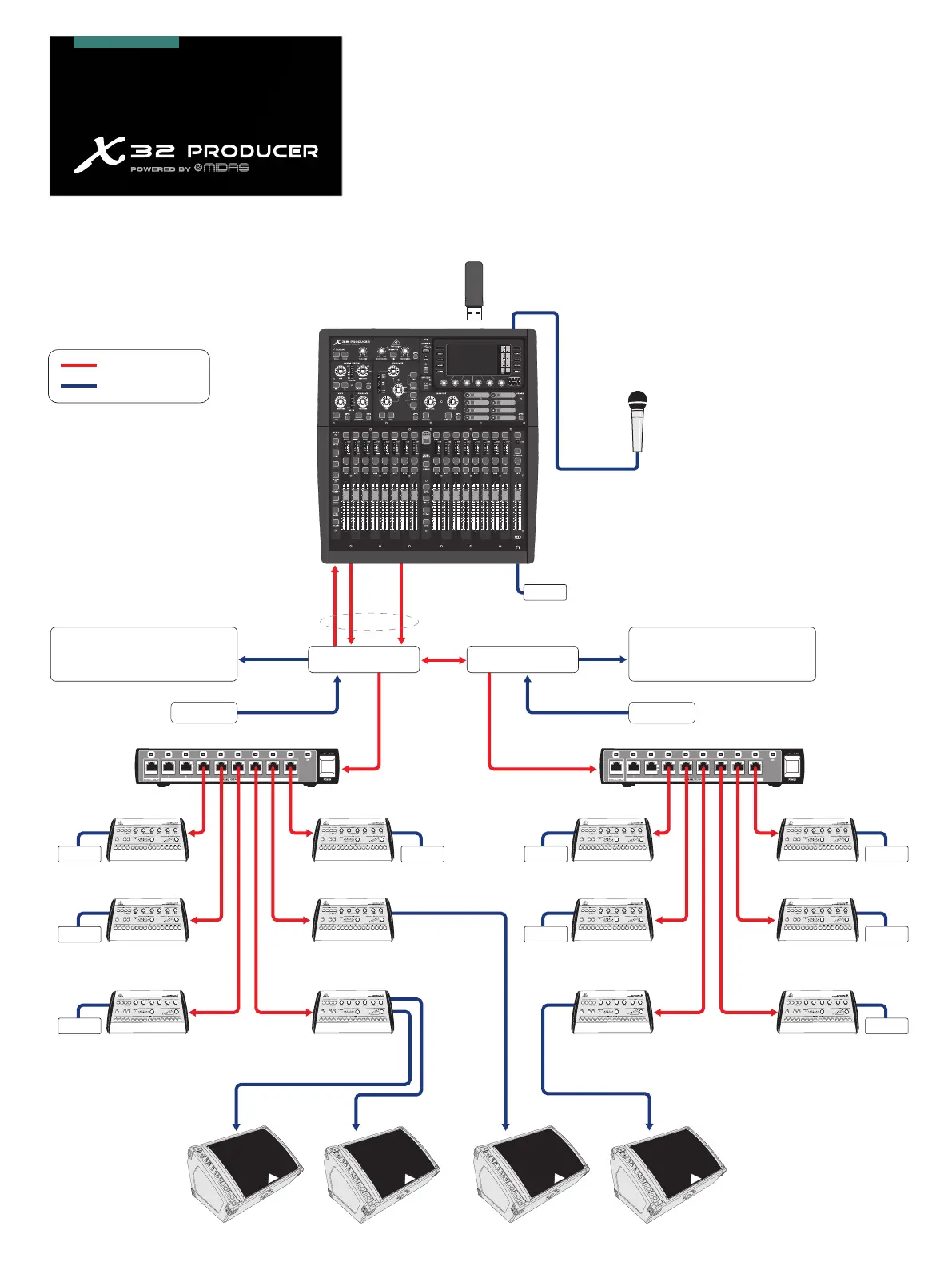

X32 PRODUCER Live Performance Setup with S16 and P16 Monitor System
P16-D Distributor
P16-D Distributor
Drummer
F1320D Active oor monitors
Vocal 1
POWERPLAY P16-M Digital Personal Mixers
Keyboards Percussion
IEM
Bass Player
Guitarist
Voc 1 Floor wedges
Vocal 1
Keyboardist
Percussionist
2nd Guitarist
Background Vocal 1
Spare
Background Vocal 2
Background Vocal 3
Phones
IEM IEM IEM
S16 Stage box (Left)
CH 1-16 In
Out 1-8 to FOH L amps/loudspeakers
delay line amps/loudspeakers,
plus broadcast feeds (analog)
Out 9-16 to FOH R amps/loudspeakers
delay line amps/loudspeakers,
plus broadcast feeds (analog)
S16 Stage box (Right)
AES50
CH 1-32 In
AES50
AES50
Out
1-16
P16 Bus signals Out
USB stick
to record show
CH 17-32 In
Phones
IEM
IEM IEM
IEM
Digital Cable (CAT5)
Analog Cable
XM8500

Behringer DIGITAL MIXER X32 PRODUCER Specifications

Mic Input Characteristics

input impedance	5 kΩ / 10 kΩ
non clip maximum input level	+23 dBu
equivalent input noise level	-128 dBu

Power

phantom power	48 V
power supply	100-240 V (50/60 Hz)
power consumption	120 W

Connectors

XLR inputs, programmable	16
RCA inputs/outputs	2/2
XLR outputs	8
