10 11EUROPORT MPA40BT/MPA40BT-PRO Quick Start Guide
EUROPORT MPA40BT/MPA40BT-PRO Controls
(1)
(5)
(10)
(2)
(9)
(11) (12)
(7)
(8)
(6)
(3) (4)

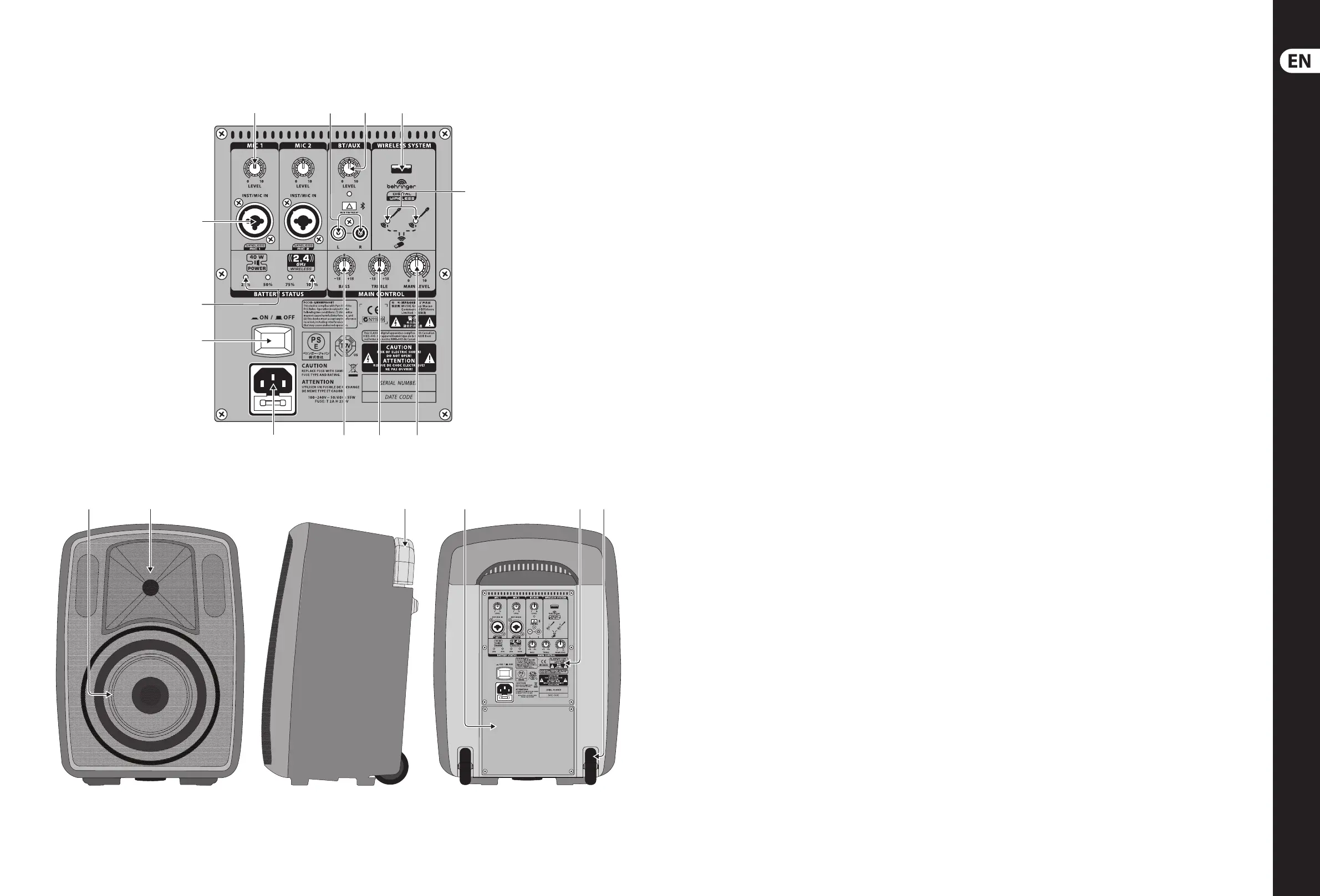

(EN) Step 2: Controls
(1) INST/MIC IN combo jacks accept input
signals over XLR balanced, ¼" TRS balanced,
or ¼" TS unbalanced connectors. Connecting
the wireless microphone system disables the
MIC 1 and MIC 2 combination jacks.
(2) MIC 1/ MIC 2 LEVEL knobs control the gain
for either the INST/MIC IN input jacks or
wireless microphones 1 and 2.
(3) RCA inputs accept line level inputs from
auxiliary sources. The auxiliary signal will be
merged with the Bluetooth signal.
(4) BT/AUX LEVEL knob controls the gain for
Bluetooth and the auxiliary signal from the
RCA inputs.
(5) WIRELESS SYSTEM USB input accepts
the optional BEHRINGER wireless
microphone receiver.
(6) LEDs indicate wireless microphone signal
input. Connecting the wireless microphone
system disables the MIC 1 and MIC 2
combination jacks.
(7) BATTERY LEVEL LEDs monitor the overall
amount of remaining battery life when the
unit is unplugged from an outlet.
(8) POWER SOURCE jack accepts the
included IEC cable.
(9) POWER switch turns the unit o and on.
(10) BASS knob adjusts low frequencies in the
overall sound.
(11) TREBLE knob adjusts high frequencies in the
overall sound.
(12) MAIN LEVEL knob controls the
overall volume.
(13) WOOFER reproduces low frequencies.
(14) TWEETER reproduces high frequencies.
(15) LUGGAGE TROLLEY (MPA40BT-PRO only)
extends and retracts for easy transport
and storage.
(16) BATTERY COMPARTMENT contains the
rechargeable battery. The battery shall
not be exposed to excessive heat such
as sunshine, re or the like.
(17) INPUT PANEL manages levels and
routing for microphone, instrument,
and Bluetooth signals.
(18) WHEELS (MPA40BT-PRO only)
allow convenient rolling transport.
(15) (16)
(13) (14)
(17) (18)
NOTE: The connection range between speaker
and Bluetooth streaming device may decrease if
Bluetooth streaming and wireless microphones are
used simultaneously.
To Next Page
