3. SPECIFICATIONS

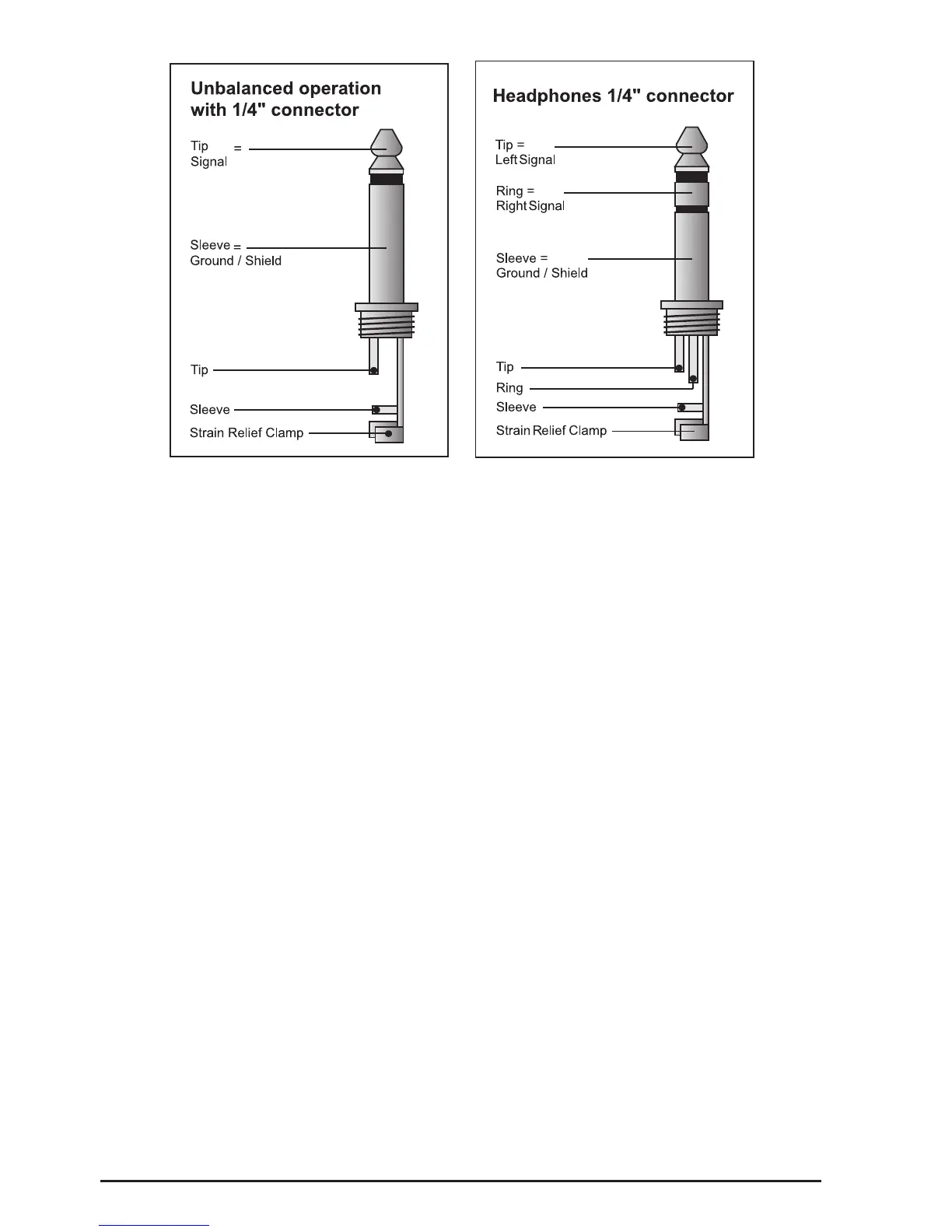

Fig. 2.1: Wiring of mono and PHONES jacks
3. SPECIFICATIONS
AUDIO INPUTS
Guitar input 1/4" mono jack, approx. 1 MΩ unbalanced
Tape input Cinch connector, approx. 25 kΩ unbalanced
AUDIO OUTPUTS
Phones output 1/4" stereo jack
Tape output Cinch connector, approx. 1kΩ unbalanced
SYSTEM SPECIFICATIONS
Power amp output 15 Watts / 8 Ω
LOUDSPEAKER
Type 8" special custom-made speaker
Impedance 8 Ω
Power handling 25 Watts
POWER SUPPLY
Mains voltages U.S./Canada 120 V ~, 60 Hz
U.K./Australia 240 V ~, 50 Hz
Europe 230 V ~, 50 Hz
General export model 100 - 120 V ~, 200 - 240 V ~, 50 - 60 Hz
Power consumption max. 25 Watts
Fuse 100 - 120 V ~: T 500 mA H
200 - 240 V ~: T 250 mA H
Mains connection Standard IEC receptacle
PHYSICAL
Dimensions (H * W * D) approx. 317 mm (12.5") * 330 mm (13") * 184 mm (7.3 ")
Weight approx. 6 kg
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts,
modifications may be made from time to time to existing products without prior notice. Specifications and appearance
may differ from those listed or illustrated.
