Behringer S16 - Stage Box Deployment; X32 Console and P-16 System Setup

Page 4 of 6

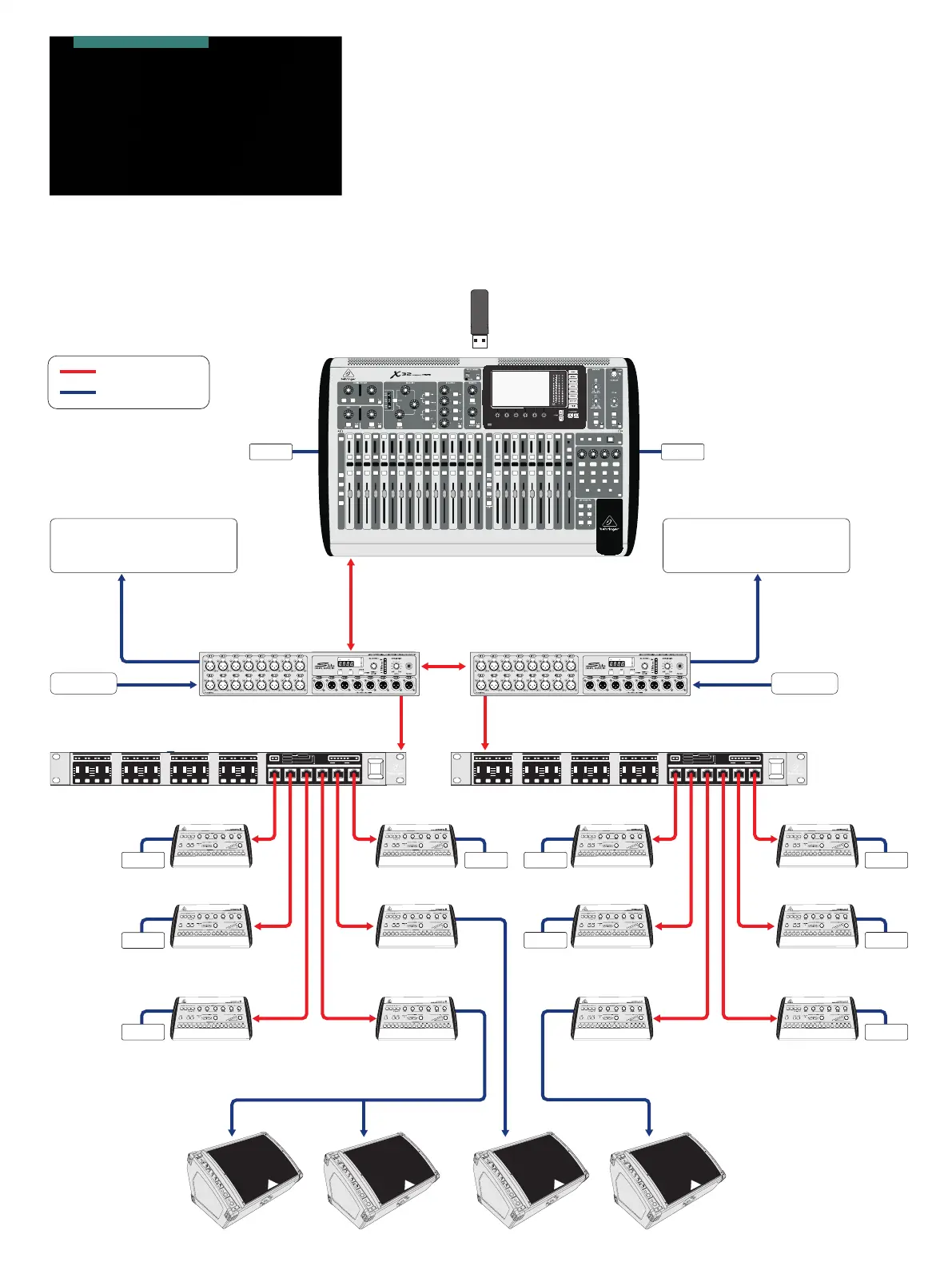

S16 Stage Box Deployment with X32 Digital Console and
P16 Personal Monitor System
PhonesPhones
POWERPLAY P16-I Audio interface
Drummer
F1320D Active oor monitors
Vocal 1
POWERPLAY P16-M Digital Personal Mixers
Keyboards Percussion
IEM
Bass Player
Guitarist
Voc 1 Floor wedges
Vocal 1
Keyboardist
Percussionist
2nd Guitarist
Background Vocal 1
Spare
Background Vocal 2
Background Vocal 3
Phones
IEM
POWERPLAY P16-I Audio interface
IEM IEM
S16 Stage box (Left)
Out 1-8 to FOH L amps/loudspeakers
delay line amps/loudspeakers,
plus broadcast feeds (analog)
Out 9-16 to FOH R amps/loudspeakers
delay line amps/loudspeakers,
plus broadcast feeds (analog)
S16 Stage box (Right)S16 Stage box (Left)
AES50
Single AES50 CAT5 cable provides:
CH 1-32 In
CH 1-16 Out
P16 Bus signals Out
USB stick
to record show
CH 17-32 In
IEM
IEM IEM
IEM
Digital cable (CAT5)
Analog Cable
CH 1-16 In
S16
Digital Snake I/O
