5. SPECIFICATIONS

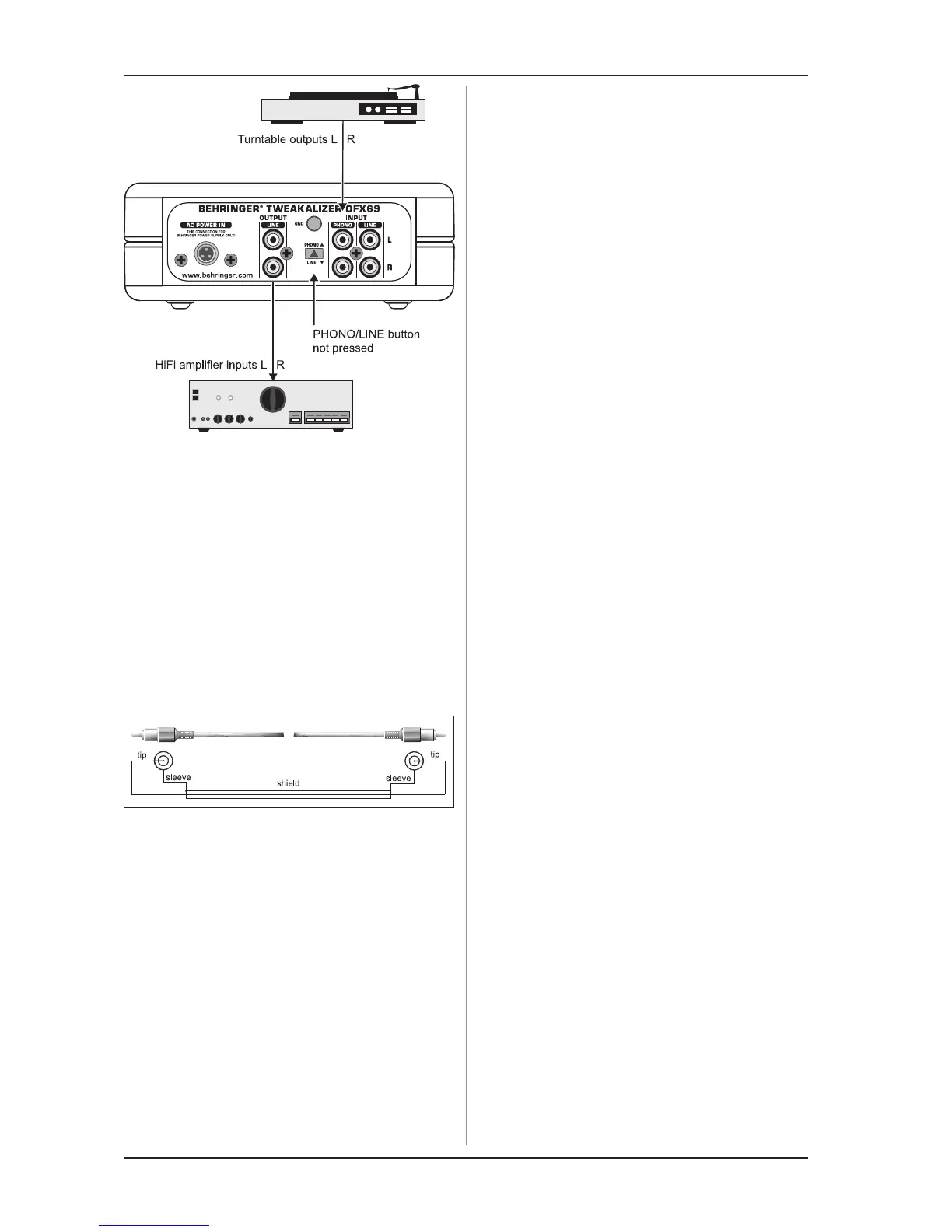

Fig. 3.2: Direct connection of a turntable
to the TWEAKALIZER DFX69
4. INSTALLATION
For audio connections, you will need a standard, commercially
available RCA cable. For optimal results, always use high-quality
cables, adapters and connectors.
+ Always make sure that only technically qualified
people install and operate your TWEAKALIZER.
During and after the installation, all those handling
the equipment need to be sufficiently grounded in
order to avoid the potentially damaging
electrostatic discharge or similar damage that
could have a permanent adverse effect on your
equipment.
Fig. 4.1: RCA cable
5. SPECIFICATIONS
AUDIO INPUTS
Type Line, 0 dB gain, unbalanced
Impedance 47 kΩ @ 1 kHz
Max. input signal level 22 dBu
Type Phono, 40 dB, unbalanced
Impedance 47 kΩ @ 1 kHz
Max. input signal level -30 dBu
AUDIO OUTPUTS
Type Line, unbalanced
Impedance 100 Ω @ 1 kHz
Max. output signal level 12 dBu
SYSTEM SPECIFICATIONS
Frequency response 10 Hz to 22 kHz, +1/-3 dB
Signal-to-noise ratio 98 dBu, a-weighted,
22 Hz - 22 kHz (Line)
THD 0,007 % typ. @ +6 dBu, 1 kHz,
amplification 1 (Line)
Crosstalk < -83 dB, 22 Hz - 22 kHz
(Line)
Gain range -20 dBu to +10 dBu
DIGITAL PROCESSING
Converter 24-Bit Delta-Sigma,
64/128 times oversampling
Sampling rate 44.1 kHz
POWER SUPPLY
Voltage
USA/Canada 120 V~, 60 Hz
U.K./Australia 240 V~, 50 Hz
Europe 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
Power consumption see adapter labels!
Fuses external PSU
DIMENSIONS/WEIGHT
Dimensions approx. 3 1/5" (81 mm)
x 6 3/5" (169 mm)
x 12 1/5" (309 mm)
Weight approx. 1 kg (2 lbs. 2 oz.)
BEHRINGER makes every effort to ensure the highest standard of
quality. Necessary modifications are carried out without notice. Thus, the
specifications and design of the device may differ from the information
given in this manual.
