2. WIRING EXAMPLES
2.1 Standard set-up comprising external drum computer, tuner and headphones
The standard set-up is intended for sessions and rehearsals. Instead of a drum computer you can of course
use any other source that provides audio playbacks, e.g. a cassette recorder or CD player.

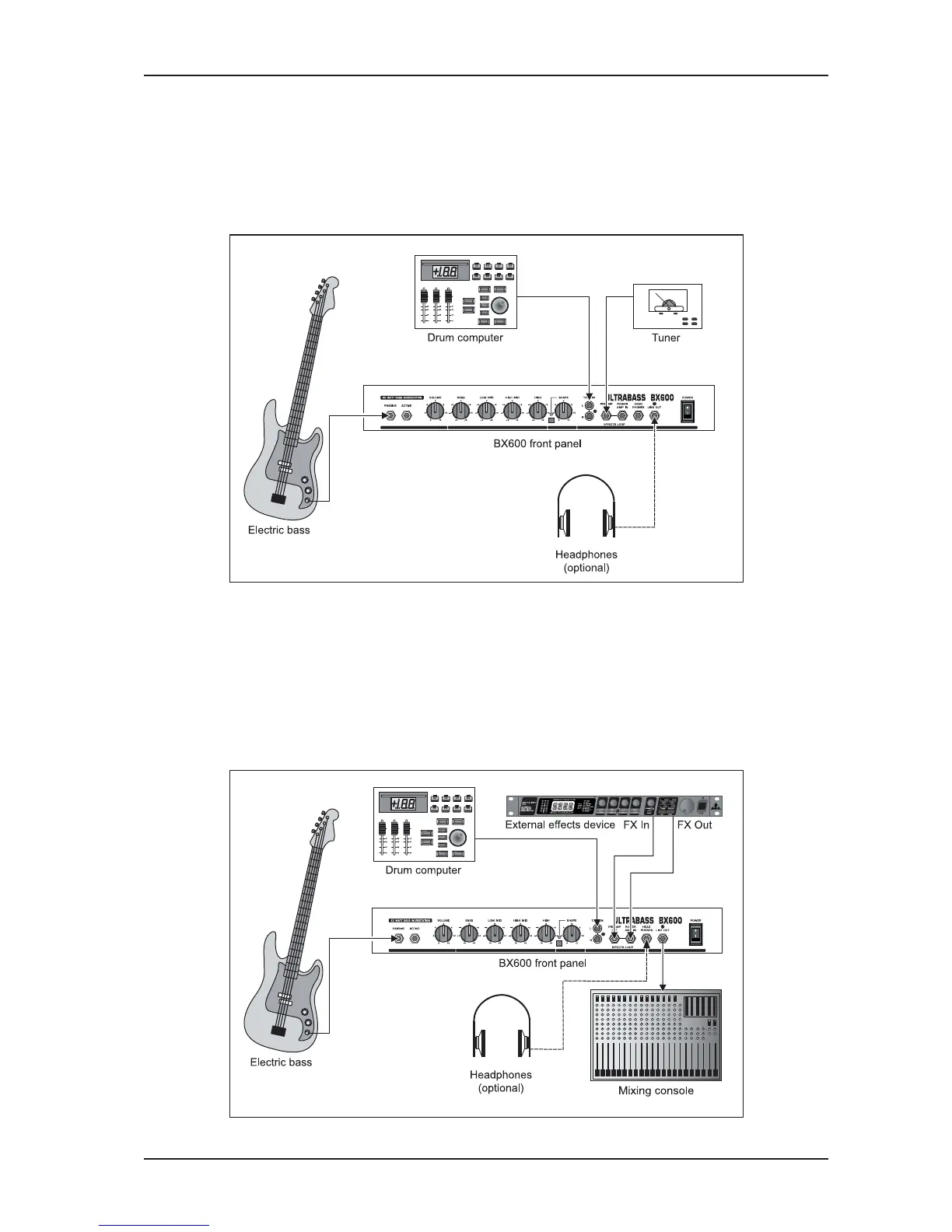

Fig. 2.1: Standard set-up
2.2 Expanded set-up with external effects device and connection to a mixing
console
For gigs or rehearsals with your band we recommend the wiring scheme shown here, which builds on the
standard set-up.
Fig. 2.2: Expanded set-up
