8 9ULTRATONE KXD15/KXD12 Quick Start Guide

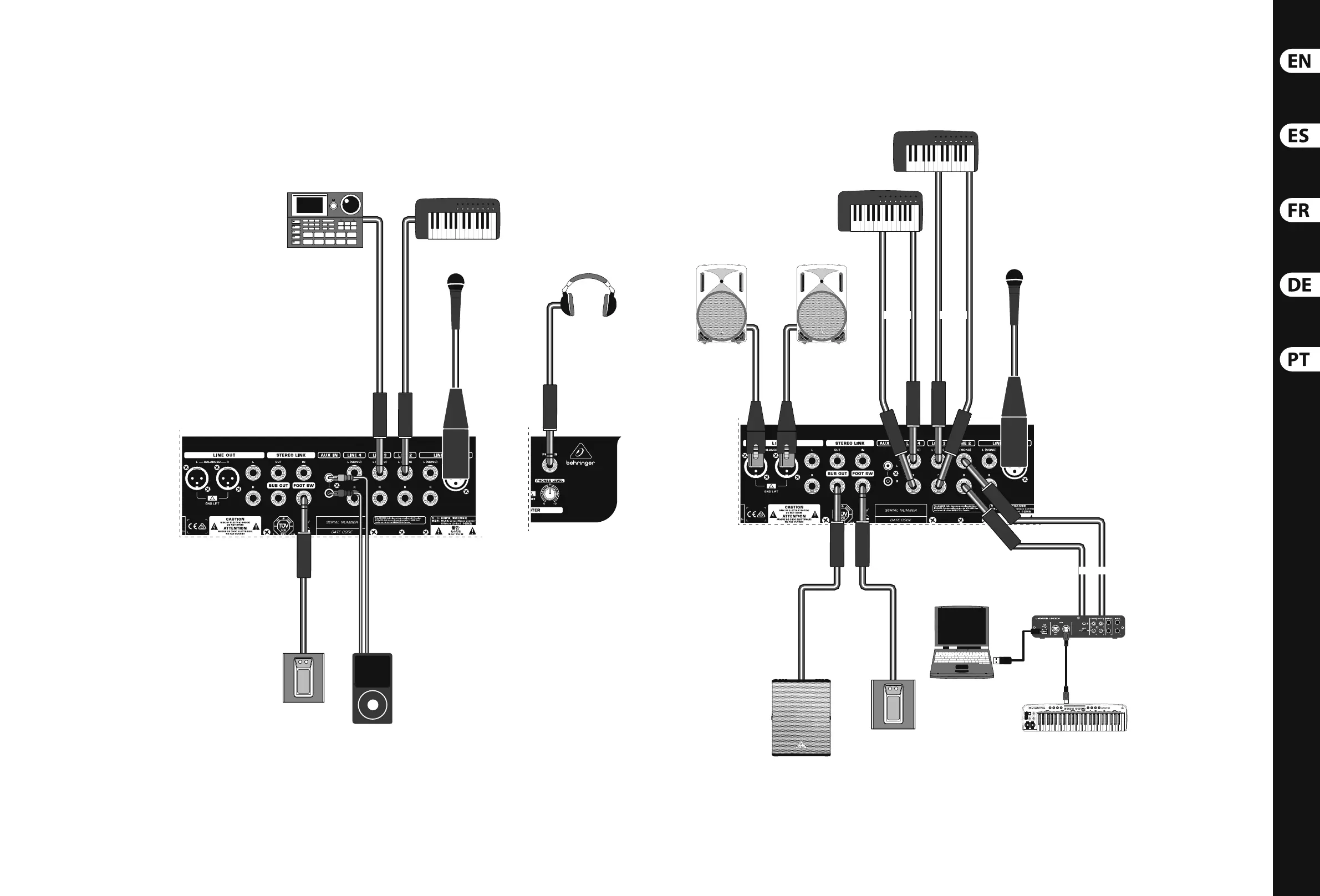

ULTRATONE KXD15/KXD12 Hook-up
(EN) Step 1: Hook-Up
(ES) Paso 1: Conexión
(FR) Etape 1 : Connexions
(DE) Schritt 1: Verkabelung
(PT) Passo 1: Conexões
Practicing setup using the ULTRATONE
Configuración para ensayos usando el ULTRATONE
Configuration pour entrainement avec l’ULTRATONE
Übungs-Setup mit einem ULTRATONE
Configuração de prática usando ULTRATONE
Live/entertainer setup
Configuración para directo/interpretaciones
Configuration pour spectacle/animation
Live/Entertainer-Setup
Configuração Ao vivo/animador
MP3 Player
Footswitch
Drum Computer
Keyboard
XM8500
HPS3000
UMC204
B1500D-PRO
Footswitch
B215D
Keyboard
XM8500
Line In 4 Line In 3
B215D
Keyboard
Computer
UMX490
Line In 2
