Behringer XENYX Q1002USB Quick Start Guide

8 9XENYX Q1202USB/Q1002USB/Q802USB/Q502USB Quick Start Guide
XENYX Q1202USB/Q1002USB/Q802USB/Q502USB Hook-u p

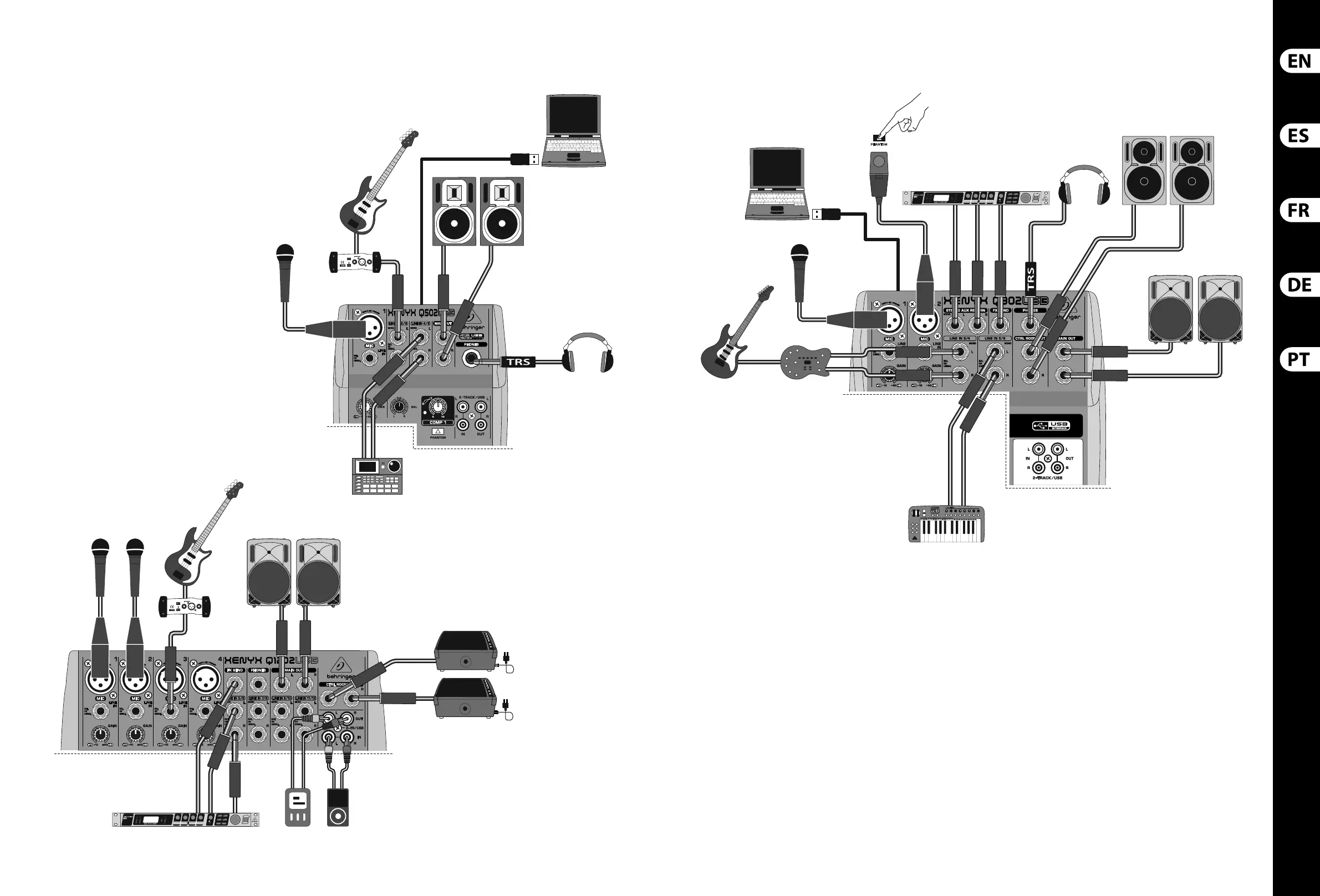

(EN) Step 1: Hook-Up
(ES) Paso 1: Conexión
(FR) Etape 1 : Connexions
(DE) Schritt 1: Verkabelung
(PT) Passo 1: Conexões
Bass Guitar
DI100
B3030A
Home Studio
HPX6000
XM8500
Drum Machine
Keyboard
V-AMP3
XM8500
C-1
FX2000 Eects Processor
B2031A
HPS3000
B212D
Recording Studio
L
R
XM8500
Bass Guitar
B215D Active Speakers
F1320D Active Monitors
MP3 PlayerFX2000 Eects Processor Portable
Digital
Recor der
DI100
Live Performance

Behringer XENYX Q1002USB Specifications

General

Channels quantity	- channels
Channel fader (1kHz)	-106 dB
Digital sound processing	- bit
Number of EQ bands per channel	3
XLR out	1
Microphone in	Yes
Line inputs (RCA)	2
Product color	Multicolor
Video capability	-
Number of jog wheels	0
Power consumption (typical)	13 W

Weight and Dimensions

Depth	248 mm
Width	195 mm
Height	50 mm
Weight	1100 g
