Behringer XENYX QX1204USB User Manual

12 13XENYX QX1204USB/Q1204USB Quick Start Guide

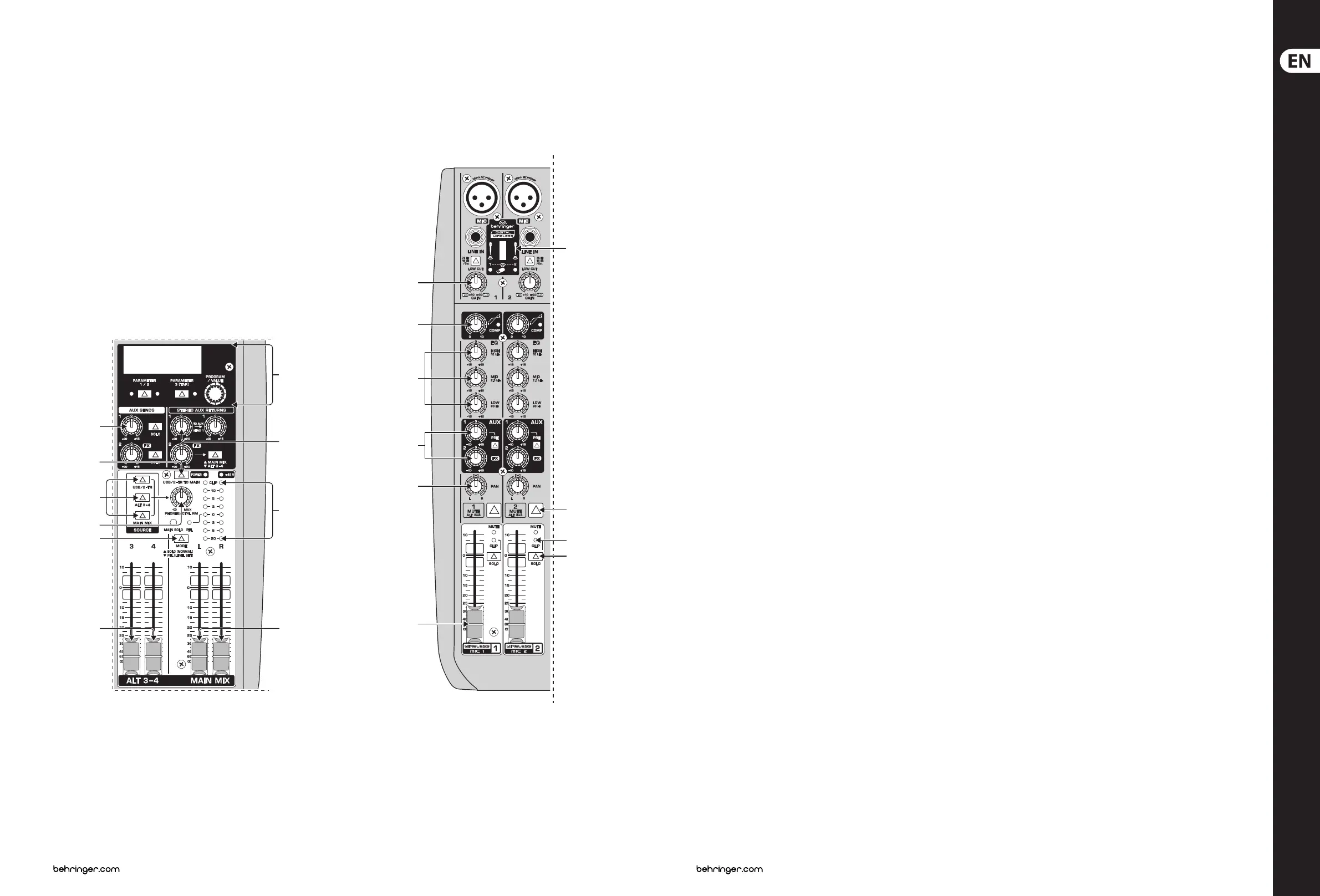

XENYX QX1204USB/Q1204USB Controls
(1)
(2)
(3)
(4)
(6)
(10)
(7)
(8)
(9)
(5)
(11)
(13)
(15)
(12)
(17)
(14)
(16)
(18) (19)
(20)
(EN) Step 2: Controls
(1) USB wireless input accepts a USB
receiver for use with Behringer ULM
wirelessmicrophones.
(2) GAIN knob adjusts the sensitivity of the
MICand/or LINE inputs.
(3) COMP knob adjusts the amount of
compression eect on the channel.
(4) EQ knobs adjust the high, mid and low
frequencies of the channel.
(5) AUX knobs adjust how much of the channel’s
signal is sent to the AUX SEND jacks.
Pressingthe PRE button on the QX1204USB
sends the AUX 1 signal pre-fader. AUX 1 is
always sent pre-fader on the Q1204USB.
(6) PAN/BAL knob positions the channel in the
stereo eld.
(7) MUTE button removes the channel from the
MAIN MIX and sends it to the ALT 3-4 bus.
(8) CLIP LED lights when the channel signal
begins to overload.
(9) SOLO (QX1204USB) button sends the channel
to the main VU meters for gainsetting.
(10) CHANNEL FADER adjusts the channel volume.
(11) MULTI-FX PROCESSOR (QX1204USB) adds a
selected sound eect to any channels whose
FX knob is turned up. See Multi-FX Processor
section for details.
(12) AUX SENDS adjust the amount of signal sent
to a monitor speaker or eects processor via
the AUX SEND jacks.
(13) AUX RETURNS adjust the amount of signal
returning from an eects processor that is
included in the main mix.
(14) PHONES/CTRL RM knob adjusts the
headphone or monitor speaker volume.
(15) VU METER displays the MAIN OUTPUT
signallevel.
(16) SOURCE buttons route the USB/2-TR, ALT3-4
or MAIN MIX to the PHONES and CONTROL
ROOM jacks.
(17) MODE (QX1204USB) button determines
whether the channels’ SOLO button
operates as ‘Soloin Place’ (button out)
or ‘Pre-Fader Listen’ (button in). PFL is
preferred for gain settingpurposes.
(18) ALT 3-4 fader(s) adjust the output of the
ALT3-4 jacks.
(19) MAIN MIX faders adjust the overall output
of the mixer.
(20) USB/2-TR TO MAIN button routes the USB
and 2-TRACK signals to the MAIN MIX.

Behringer XENYX QX1204USB Specifications

General

Brand	Behringer
Model	XENYX QX1204USB
Category	Music Mixer
Language	English
