QX1202USB/Q1202USB/QX1002USB/Q1002USB Patchbay
Phones jack
FX Send
Stereo channel ¼"
unbalanced input
Line In jacks
Main Out unbalanced
¼" jacks
CTRL Room Output
¼" unbalanced jacks
CD/Tape In/Out
RCA sockets
QX1202USB/ Q1202USB/QX1002USB/Q1002USB Main Section
FX selection readout with
Signal and Clip LEDs
FX Program selector
USB assign switch
2 TR assign switch
Phones/Control
Room level control
Phantom power switch
4-tier VU meter with
+48 V and Power LEDs
Main Mix fader
FX To CTRL adjusts level
of FX to CTRL Room Out
FX To Main adjusts level
of FX to Main mix
(QX models only)
CLIP
SIG

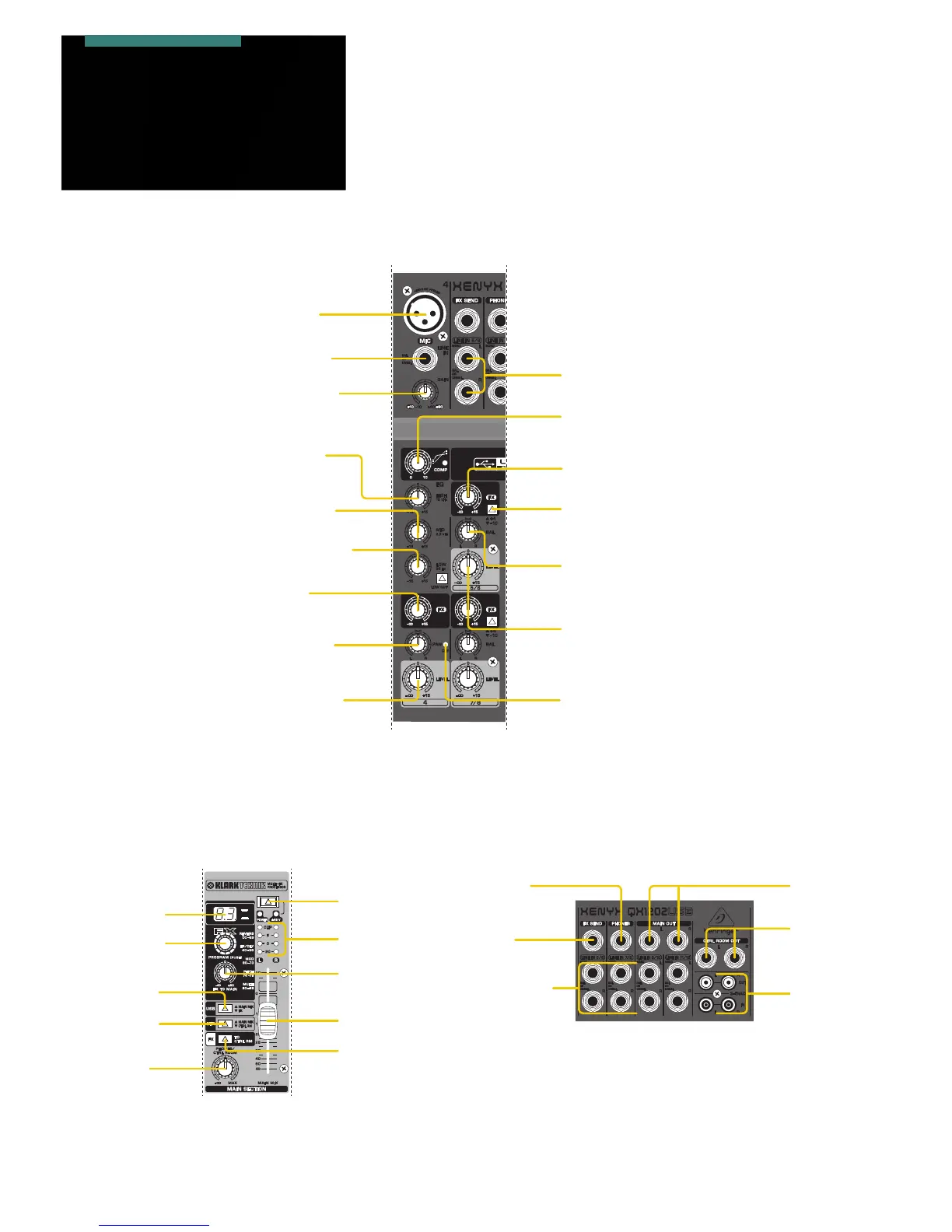

QX1202USB/ Q1202USB/QX1002USB/Q1002USB Channel Strips
XLR mic input with
XENYX preamp
¼" balanced/
unbalanced input
Gain control adjusts
input signal level
Mid EQ ±15 dB,
centered @ 2.5 kHz
Low EQ ±15 dB, centered
@ 80 Hz with additional
Low Cut lter switch
Aux Send for
monitor/FX
Pan control adjusts
position of signal in
stereo image
Channel Level control
adjusts signal level in
Main Mix
Compressor knob adjusts
eect on mono channel
Stereo channel Aux
Send for monitor/FX
Input sensitivity switch selects
between +4 dBu and -10 dBV
Balance adjusts comparative
level of L & R line inputs
Clip LED lights when input
signal approaches distortion
Stereo channel Level control
adjusts signal level in Main Mix
High EQ ±15 dB,
centered @ 12 kHz
Stereo channel ¼"
balanced/unbalanced
input Line In jacks
