Installation
2Installation

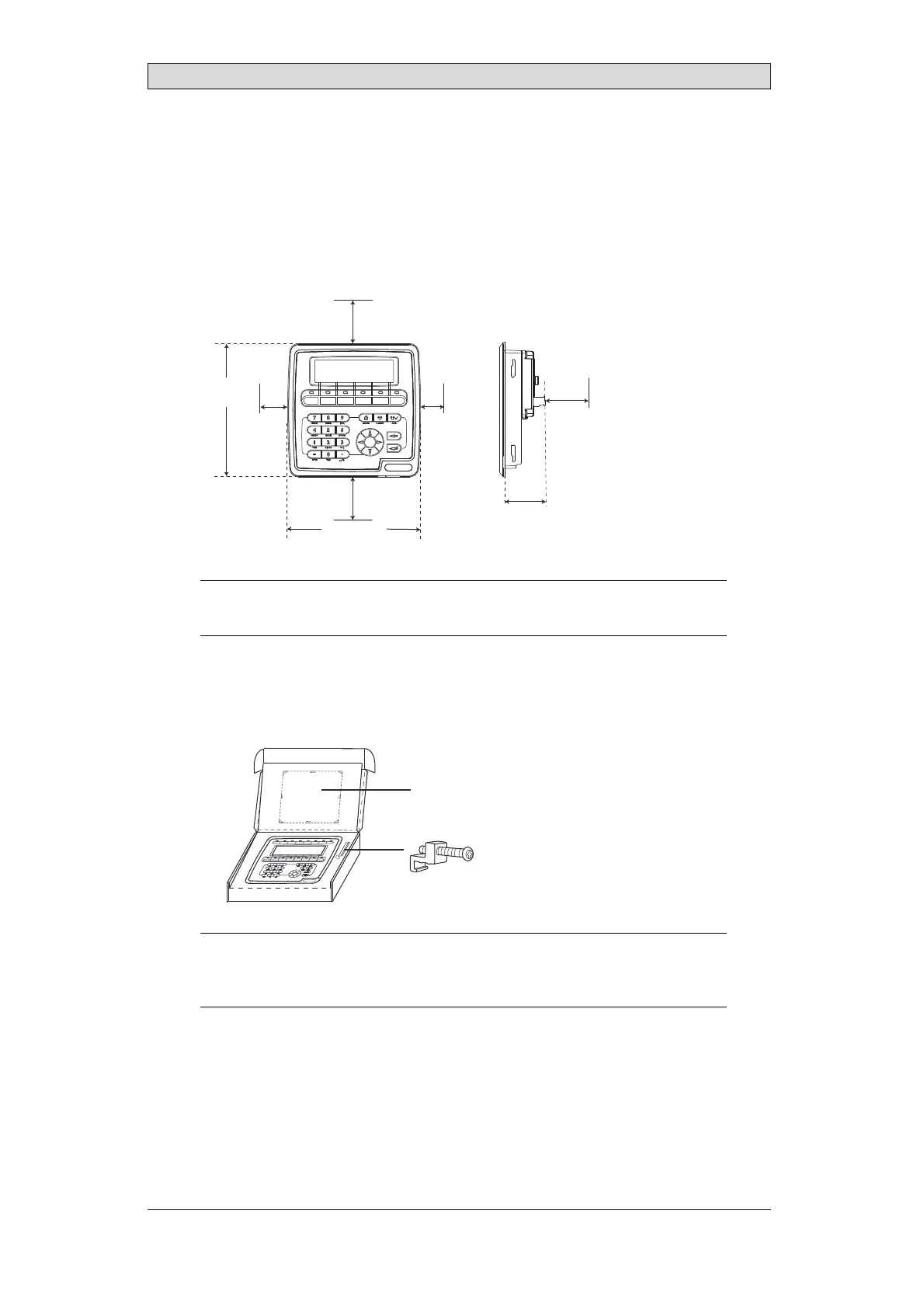

2.1 Space Requirements
• Installation plate thickness: 1.5 - 7.5 mm (0.06 - 0.3 inch)
• Space requirements when installing the operator panel:
100 mm
(4.0 inch)
50 mm
(2.0 inch)
155 mm
50 mm
(2.0 inch)
(6.10 inch)
100 mm
(4.0 inch)
155 mm
(6.10 inch)
100 mm
(4.0 inch)
46.4 mm
(1.83 inch)
Caution:
The openings on the enclosure are for air conve
ction. Donot cover these openings.
2.2 Installation Process
1.
Unpack and check the delivery. If dama
ge is found, notify the supplier.
x 6
Panel cut out 120 x 138 mm
(4.73 x 5.44 inch)
Note:
Place the operator panel on a stable surface during installation.
Droppingit or letting it fall may cause damage.
Beijer Electronics, MAEN852B
7
