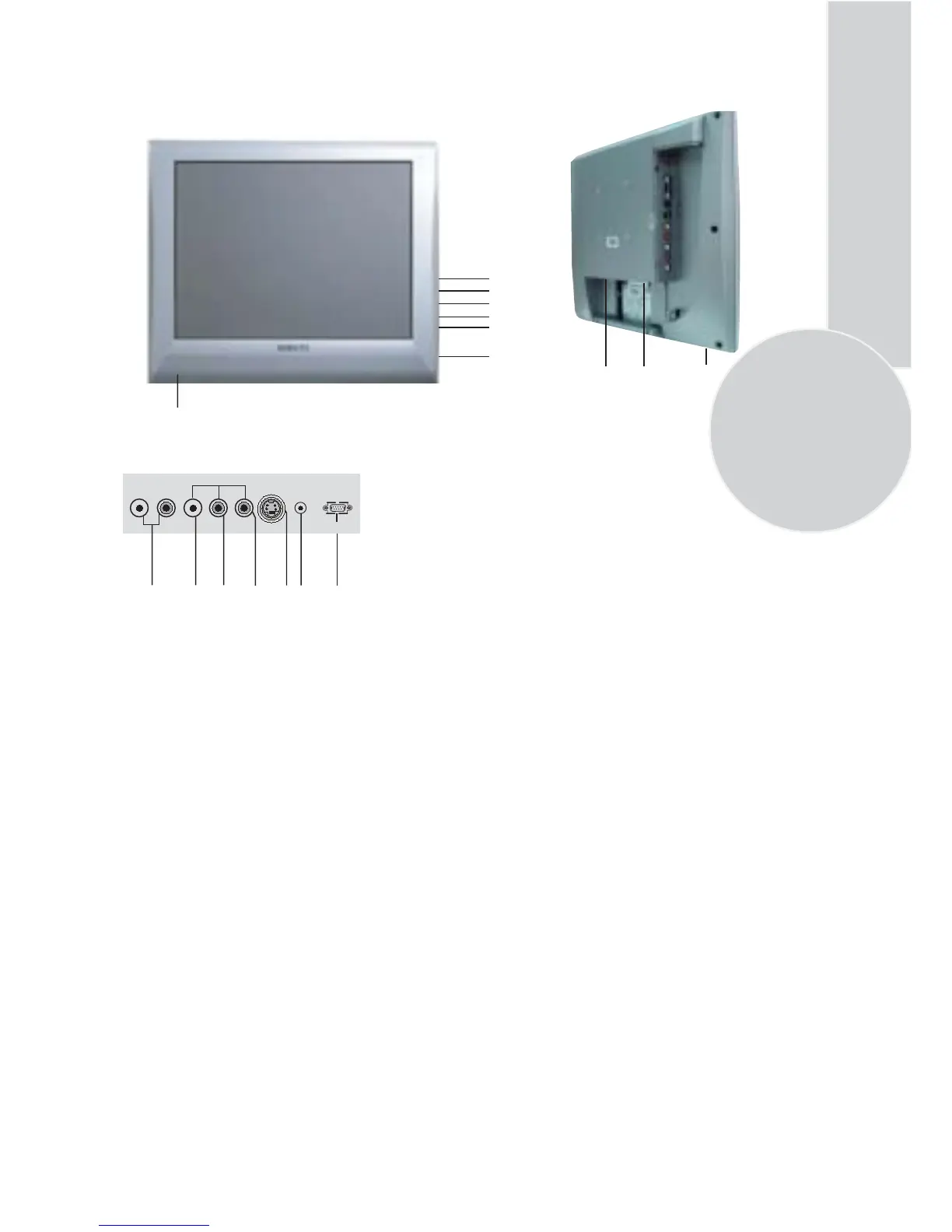

Beko 15LB450 - Control Unit

1.
2.
3.
4.
5.
6.
7.
8.
Power on / off
Menu button
Program down
Program up
Volume down
Volume up
Speaker
Audio RCA (R)
9.
10.
11.
12.
13.
14.
15.
16.
17.
Audio RCA (L)
Video input CINCH connector
S-VHS
Headphone socket
Aerial input
Audio out (R,L)
Scart socket
DC 12V Power supply input
VGA (PC) input
14
17
16
11
10
8
9
Control Unit
Please note
• Remove cover to gain acess to connections.
• Do not use Video Phono and S-Video connections at the same time, otherwise they will effect
the picture.
• RGB inputs from scart will give you better picture quality.
AUDIO OUT
AV2
L R VIDEOL R S-VHS
AVS
DC 12V VGA
7
5
15
13
1
5
3
4
6
2
12
